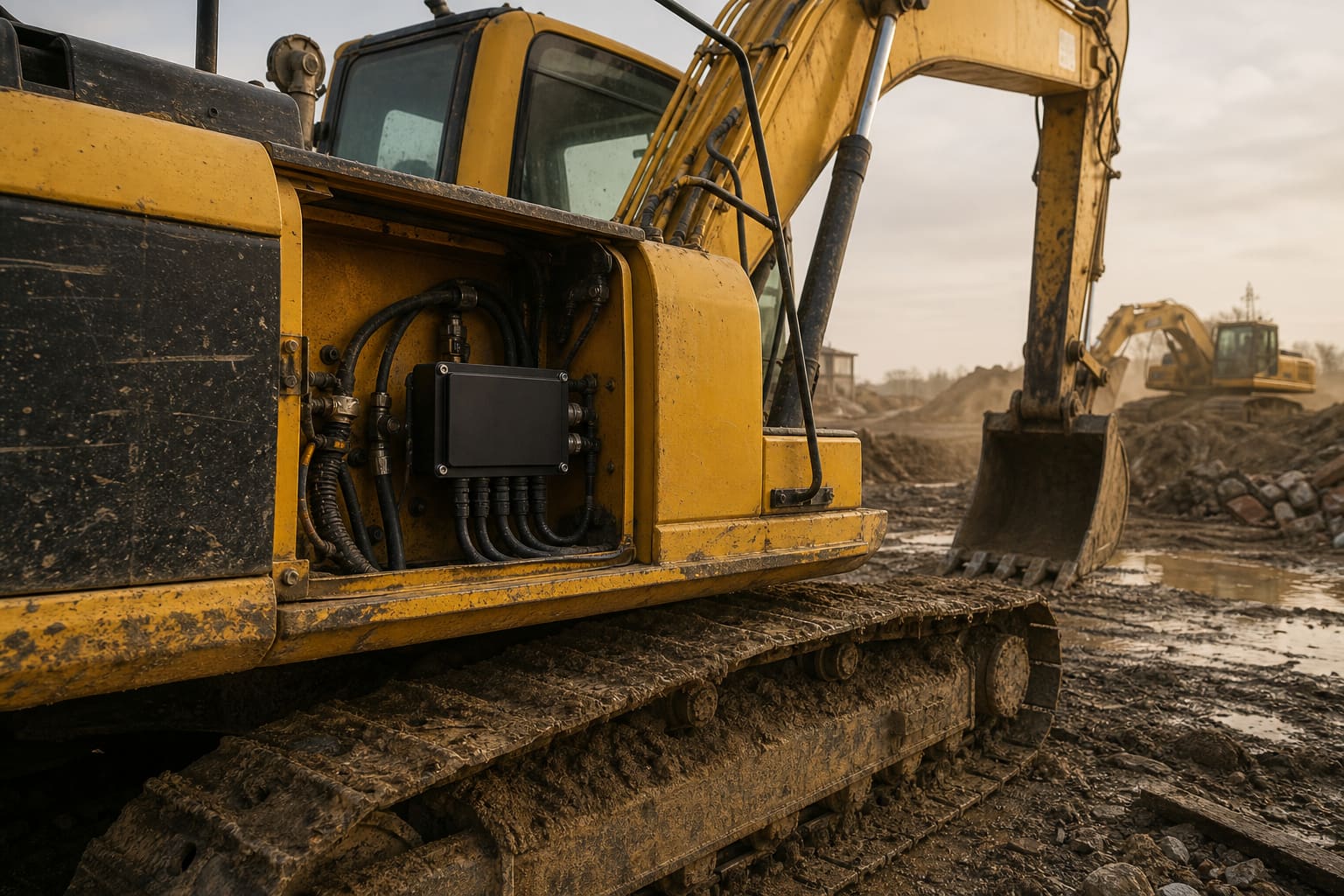

If you take a power distribution box that was engineered for a heavy truck and bolt it to an excavator, you'll get something that works at the depot and quietly fails in the field. The two operating environments share electrical requirements and very little else.
This article is the short version of the conversation we have with construction‑machinery program teams when they ask why we offer a separate sealed integrated box for excavators rather than reusing a truck PDB.
The four things that change on an excavator
At a glance, here is how the operating envelope diverges from a truck program — the detail behind each row follows below.
| What changes | Truck PDB (typical) | Excavator PDB (NBX‑961) |
|---|---|---|
| Vibration | Body-mount profile; tyres absorb shock. | Track-frame profile — continuous 5–50 Hz excitation plus boom-impact loads. |
| Dust & sealing | IP54 – IP65. | IP67 sealed enclosure plus sealed connectors. |
| Temperature | Quoted per program. | Full −40 to +85 °C — one machine model across export regions. |
| Connector strategy | One or two OEM standards per program. | Configurable harness exit — SANY, XCMG, Komatsu, Caterpillar families. |
1. Vibration
An excavator runs on tracks, not tyres. Tyres absorb shock; tracks transmit it. The hydraulic pump and the engine produce continuous low‑frequency excitation in the 5 to 50 Hz range, and any moving boom adds an envelope of impact loads on top of that. A truck PDB validated to a typical body‑mount vibration profile will fail mechanical fasteners and connector retention on a track frame within a season.
The Youlai NBX‑961 sealed integrated box is validated to a construction‑machinery vibration profile rather than a body‑mount truck profile. The fastener torque, the connector retention force, the internal busbar mounting, and the gasket compression are all specified accordingly.
2. Dust
Excavator job sites generate fine particulate at concentrations a truck never encounters. The sealing target is therefore IP67 rather than IP54 or IP65 — see Waterproof IP67 article for what that rating actually requires. Dust ingress isn't just a contamination problem; fine conductive dust at a connector pin can cause intermittent faults that look like loose connections during diagnosis. A sealed enclosure plus sealed connectors is the only correct answer.
3. Temperature range
An excavator may be working in Saudi Arabia at +50 °C ambient one month and Mongolia at −30 °C the next, often the same machine model exported through different channels. The PDB needs to operate at the full −40 to +85 °C range without changing behaviour. Gasket compound, fuse holder retention, connector lock force, and busbar coefficient of thermal expansion all need to be specified for that range.
This is not over-engineering — it is the actual operating envelope of the global construction‑machinery market. If a supplier quotes you a PDB without a clearly stated full working temperature range, ask for it.
4. Connector strategy
Truck programs typically settle into one or two harness connector standards per OEM. Construction machinery is more fragmented. SANY, XCMG, Komatsu and Caterpillar each have their preferred connector families, and even within one OEM the excavator program may use a different connector than the loader program. The PDB needs to be configurable on the connector side without redesigning the enclosure.
The NBX‑961 is built around this — the enclosure is fixed, the harness exit is configurable. Bussmann, Sumitomo, Tyco/AMP Superseal and Delphi GT sealed families are all available depending on the program.
Where the NBX‑961 fits

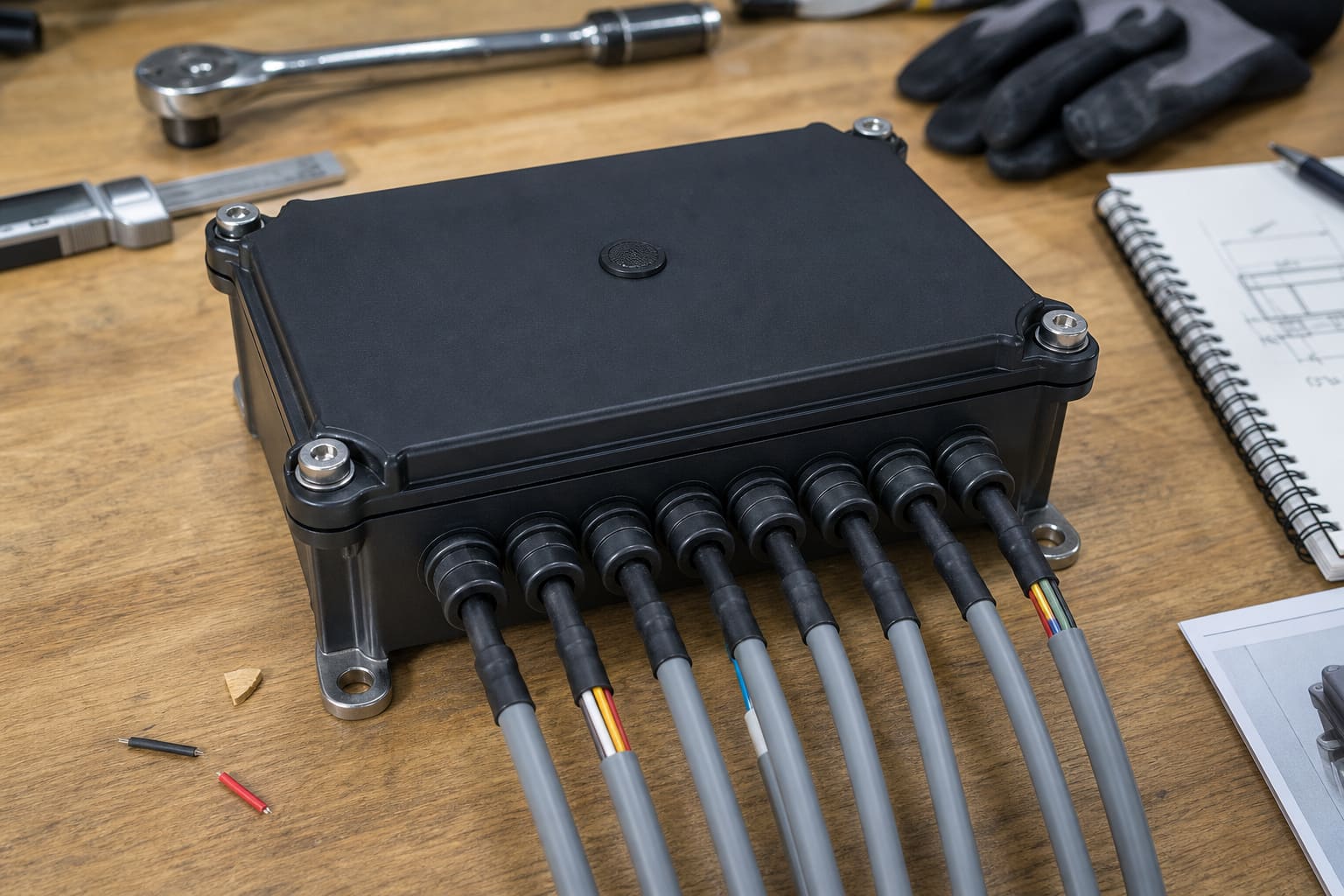

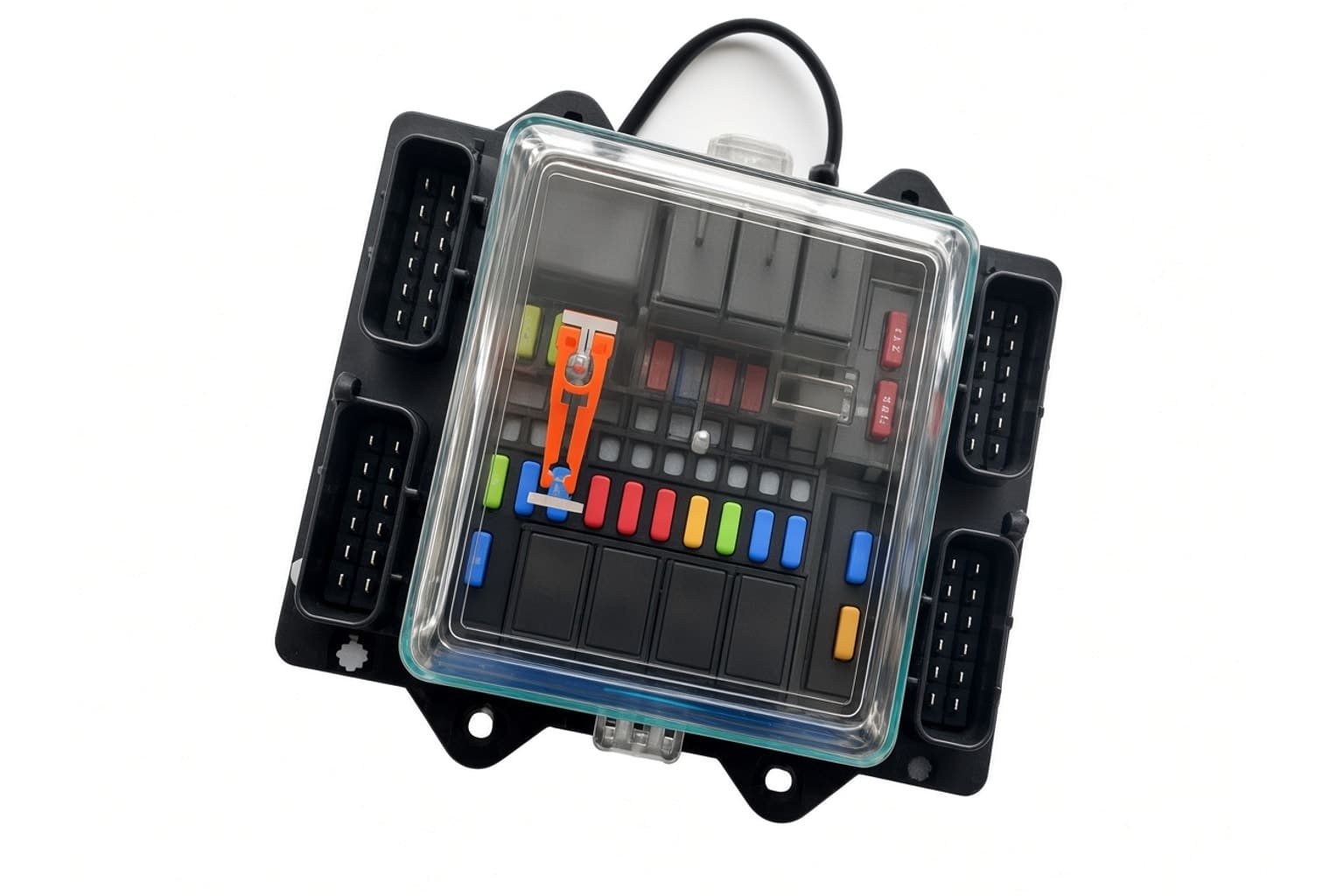

The NBX‑961 Sealed Integrated Box is the Youlai reference design for excavator and other construction‑machinery PDB use cases. It combines fuse, relay and harness-junction functions in a single sealed enclosure with the engineering choices above:
- Vibration validation against a construction‑machinery profile, not a truck body profile.
- IP67 sealing with a continuous gasket and pressure-equalising vent.
- Full −40 to +85 °C working range.
- Sealed automotive connector families on the harness exit, configurable per program.
- Same IATF 16949 quality system that covers our truck PDB programs (see IATF 16949).
What the program team should send us
To quote an excavator PDB, the most useful information from your side is:
- Machine class and target tonnage (e.g. 20-tonne hydraulic excavator).
- Mounting location on the machine (cab, swing platform, undercarriage).
- Number of fuse circuits and required current rating per circuit.
- Number of relay channels (low-side or high-side, current per channel).
- Connector preference, if specified by the OEM harness drawing.
- Annual volume and start-of-production target date.
- Region(s) of deployment — to confirm the working-temperature target and any regulatory requirement (e-Mark / SASO / FCC, where these are available upon project requirement).
Drawings and 3D models are welcome and shorten the design-in cycle considerably. They can be sent via the contact page, by email to [email protected], or directly via WhatsApp.
Common questions
Can a truck NBX‑957 be used on a 5-tonne mini-excavator?
Sometimes — for very small machines with tyred wheels and a passenger-style cab the operating envelope can be close to a light truck and a body-cavity PDB can be a candidate. For tracked machines or anything above a certain operating mass, the NBX‑961 (or a custom variant of it) is the correct starting point.
What about loaders, graders, dozers?
The NBX‑961 architecture covers a much wider range than just hydraulic excavators. Wheeled loaders, motor graders and crawler dozers all share the construction‑machinery operating envelope and the same engineering principles apply. Specific configurations — fuse count, relay count, connector standard — are quoted per program.
What's the lead time?
For an existing NBX‑961 configuration: standard sample lead time, mass-production lead time per program. For a new configuration that requires connector changes or layout changes: APQP / PPAP timeline negotiated with the program team.
