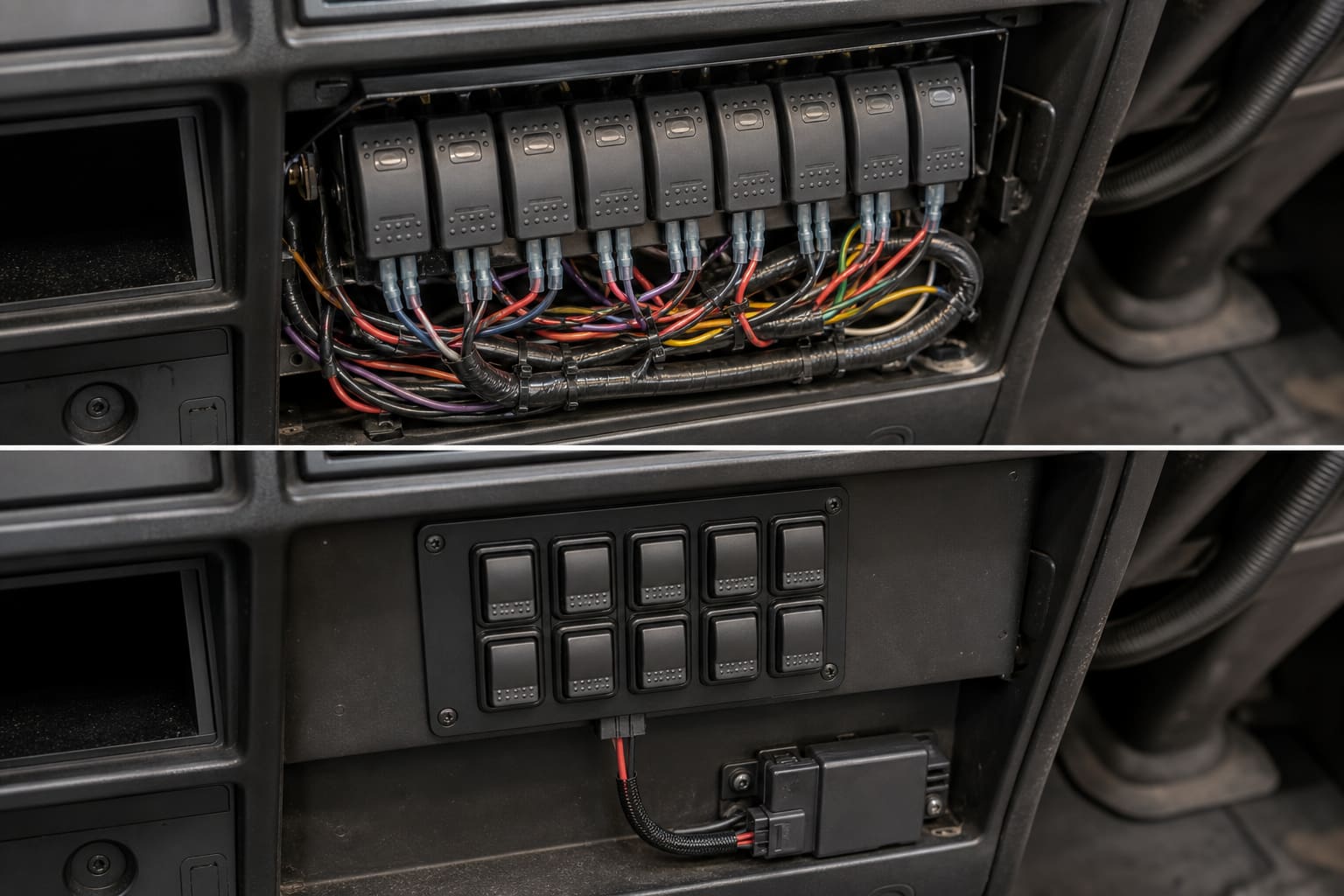

On an older truck dashboard, every switch was an island. A headlamp rocker ran its own wire to the lighting circuit; a fog-lamp switch ran another; a PTO switch ran a third. Twenty functions meant twenty or more wires leaving the panel, and a wiring loom that grew heavier and harder to diagnose with every option the customer added. The CAN bus switch panel is the answer commercial vehicles settled on, and it changes the part you are buying more than it looks.
This guide is the version of the conversation we have with OEM engineering buyers when they are scoping a switch panel for a new cab or an upfit program. It assumes you know what a CAN bus is and want to get to the decisions that actually change the specification.
1. What a CAN bus switch panel actually is
A CAN bus switch panel is a cluster of buttons, rockers or rotary controls with its own small microcontroller and a CAN transceiver on board. Instead of wiring each switch directly to the load it controls, the panel reports the state of every key as a message on a shared bus. A body control module or gateway reads those messages and decides what to switch.
The practical difference is in the harness. A hard-wired panel needs one circuit per function, so the wire count scales with the number of switches. A CAN panel needs power, ground and a two-wire bus, and that bus carries the state of every key on the panel at once. Adding a function becomes a software and legend change rather than another wire through the firewall.
You will see the same part described several ways — CAN switch panel, CAN keypad, multiplex switch module, dashboard HMI panel. They all mean a switch interface that talks over a bus rather than through discrete wiring. The Youlai EDK‑907 CAN bus switch is a representative example, and the rotary-and-key EDK‑2507 shows the same idea in a different form factor.
The reason commercial-vehicle OEMs moved to multiplexed panels is rarely one dramatic saving. It is the sum of several: a lighter harness with fewer through-firewall connections, faster cab assembly because one connector replaces a bundle, fault diagnosis that can name the failing channel over the bus instead of a technician chasing a wire, and the freedom to change a function in software late in a program without re-cutting the loom. On a vehicle that ships in dozens of option combinations, that last point is often what tips the decision.
2. How a CAN switch panel works
Behind the front panel there is more going on than a set of contacts. A multiplexed panel is a small embedded device:
- Key sensing. The microcontroller scans the rocker, momentary or rotary inputs, debounces them, and tracks state such as pressed, released, latched or held.
- Message encoding. Key states are packed into a CAN frame and sent on the bus — usually both cyclically (so the BCM always knows the panel is alive) and on change (so a press is acted on without waiting for the next cycle).
- Feedback. The BCM acts on the message, switches the load, and sends a status message back. The panel lights the indicator on that key from the returned status, not from the press itself. That closed loop is why a CAN panel can show the real state of a load instead of just whether a button was pushed.
- Backlight. Panel illumination is typically tied to the vehicle lighting bus, with day and night levels and sometimes a defined illumination colour for the program.
Because the logic lives in firmware, behaviour that used to need extra relays and wiring becomes configuration: momentary versus latched keys, long-press and double-press functions, interlocks that block one function while another is active. The message matrix — which key maps to which CAN identifier and bit — is the document that defines the panel, and deciding who owns it is one of the first questions in section 5.
One panel rarely sits alone. Several panels, the instrument cluster and the body modules share the same body-CAN segment, so two things decide whether they coexist cleanly: addressing and bus loading. Both have to be planned rather than discovered on the bench.
Addressing comes first. Each panel needs its own node identity and a defined set of message identifiers, agreed with whoever owns the bus matrix, so two panels never claim the same frame.
Bus loading and network management come second. Cyclic messages from every node add up, so the message timing has to leave headroom on the segment; and on a vehicle that has to sleep without draining the battery, the panel needs a defined low-power behaviour and a wake-up rule.
3. CAN, LIN or hard-wired: which switch panel to use
Multiplexing is not automatically the right answer. The choice between a hard-wired panel, a LIN panel and a CAN panel comes down to how many functions there are, whether you need diagnostics, and how cost-sensitive the platform is.
| Approach | Wiring | Diagnostics & reconfiguration | Where it fits |
|---|---|---|---|
| Hard-wired discrete | One circuit per switch; wire count grows with functions | No bus-level diagnostics; changes mean harness changes | A handful of simple, fixed switches where a bus adds cost without benefit |
| LIN bus | Single-wire bus, low speed, low cost | Basic diagnostics; reconfigurable but limited bandwidth | Local, low-speed clusters — door panels, mirror controls, simple keypads |
| CAN bus | Two-wire bus carrying every key state | Full diagnostics, status feedback, firmware-defined behaviour | Main cab HMI, many functions, integration with the J1939 body bus |
In practice a cab often uses more than one. The main dashboard panel is on CAN, while a door-mounted window and mirror cluster runs on LIN to keep its local wiring cheap. Youlai builds both: the CAN keypad family alongside LIN-bus panels such as the EDK‑914 series. The point at RFQ is to be explicit about which bus each panel sits on, rather than letting "switch panel" stand in for an architecture decision that has not been made.
4. Where CAN switch panels go on a commercial vehicle
The same multiplexed panel turns up in several places on a truck or bus, with different function lists:
- Main cab dashboard. The driver-facing HMI for lighting, work lamps, PTO, differential lock, retarder, beacon and cab comfort functions. This is the panel with the most keys and the strongest case for CAN.
- Body-builder and upfit controls. Tipper, mixer, refuse-collection, crane and aerial-platform controls usually sit on a separate body-builder CAN segment so the upfitter can add functions without touching the chassis harness. A CAN panel is what makes that clean hand-off possible.
- Bus and coach. Driver panels plus passenger-facing controls. Stop-request and door functions are often handled by dedicated button families rather than the main keypad, but they share the same network thinking.
- Off-road and construction cabs. Sealed panels for excavators, loaders and agricultural machinery, where vibration and ingress drive the front-panel sealing class more than the electronics.
What ties these placements together is that the panel is rarely the only input device in the cab. A modern dashboard mixes CAN panels for the high-function controls, a few hard-wired switches for functions that must work even if the bus is down, and sometimes a LIN cluster on the door. Deciding which functions stay hard-wired — typically hazard lights and other items a regulation or an OEM safety case wants independent of the network — is part of scoping the panel, not an afterthought.
The signals a panel generates do not act on anything by themselves; they are inputs to the body control module, which owns the output drivers and the switching logic. If you are scoping the panel and the controller together, the heavy-truck BCM guide covers the receiving end of these messages.
5. How to specify a CAN bus switch panel
A switch-panel requirement a supplier can quote against, rather than guess at, covers the panel itself, the protocol, and the environment it lives in. None of it is exotic; skipping any of it shows up at sample stage.
| Parameter | What to decide |
|---|---|
| Key count & layout | How many keys, in what grid, and the legend or icon for each. This fixes the panel cutout and the front-panel tooling. |
| Switch type | Rocker, momentary push, latching, rotary or a mix. Drives the tactile feel and the mechanical life rating. |
| Protocol | CAN 2.0, CAN-FD or J1939 for the main panel; LIN for low-speed clusters. State the baud rate. |
| Message matrix | Which key maps to which identifier and bit, cyclic and on-change timing, and who owns the matrix — the OEM or the supplier. |
| Backlight & feedback | Day / night illumination levels, colour, and whether indicator LEDs reflect returned load status. |
| Sealing (IP) | Front-panel ingress class for the mounting location — cab interior IP54, exposed or off-road panels up to IP67. |
| Working temperature | Operating range; current Youlai EDK panels are specified to −30 to +85 °C working (−40 to +90 °C storage), with wider envelopes confirmed per project. |
| Tactile life | Rated actuation cycles per key — the number that decides whether the panel survives a fleet duty cycle. |
| Connector & mounting | Connector standard from the harness drawing and the panel mounting / cutout method. |
The message matrix is the line buyers leave until last and regret. A configurable panel platform, with the OEM supplying the key map and the supplier adapting an existing design, reaches sample far faster than a panel drawn from scratch. Decide who owns the matrix early, because it sets the lead time more than the hardware does.
Two smaller items are worth fixing in the specification because the driver sees them every day. Legend and icon printing — which symbols, in which language, and whether they are laser-etched or printed — is part of the front-panel tooling and moves the lead time if left open. And the night-mode behaviour, where the backlight level follows the vehicle lighting bus and the indicators stay readable without dazzling, is the difference between a panel that feels built for the cab and one that feels like a generic part dropped in.
6. What to look for in a CAN switch panel supplier
A switch panel is a part the driver touches thousands of times and an electrical node on a safety-adjacent bus. The supplier questions that matter are about durability and protocol depth, not price.
- Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on program handoff. Treat any "automotive grade" claim without a certificate number as marketing.
- EMC capability. A keypad sits in a cab surrounded by switching loads and is both an EMC source and victim through its bus lines. Confirm in-house EMC pre-compliance rather than outsourced-only testing. Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment.
- Protocol depth. CAN, CAN-FD, J1939 and LIN should be routine. A supplier that has shipped CAN keypads into commercial-vehicle programs will discuss message matrices and node addressing without hesitation.
- Mechanical durability. Ask for the rated actuation life per key and how it is tested. A panel that passes EMC but wears out the most-used rocker in two years has failed the part that matters to the driver.
- Sealing range. For exposed or off-road panels, confirm the supplier offers the right front-panel protection class. The design rationale behind IP65 / IP67 enclosures is on our IP65 / IP67 protection page.
- Region-specific approvals. e-Mark / ECE for Europe, SASO for the GCC, FCC / DOT for North America are available upon project requirement, not blanket-claimed across the catalogue. An honest supplier separates certifications it holds in hand from those it runs on a project basis.
- Supply continuity. A switch panel is a styling-visible part with a long service life, and a mid-program change of key feel, legend or connector is disruptive. Ask how the supplier handles component obsolescence on the microcontroller and transceiver, and whether the panel can be re-flashed with a revised message matrix without new tooling. A platform built with that in mind ages better than one optimised only for the first production order.
Questions you will be asked at RFQ stage
- MOQ and samples. A configurable panel variant can usually move to samples quickly; a fully custom layout follows the tooling and firmware timeline. Sample quantities are agreed per program.
- Lead time. Driven mostly by the message-matrix and legend decisions and by front-panel tooling, not by the electronics.
- PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on program handoff.
- Customisation scope. Variants on an existing EDK platform — key count and layout, legend and icon printing, CAN or LIN, message matrix, sealing class — are routine, not an exception.
7. Suggested next step
If you are scoping a switch panel for a new cab or an upfit program, the most useful things to bring to a first conversation are the function list, a sketch of the key layout, and the bus matrix if you have one. That lets us map your requirement onto an existing EDK platform or tell you honestly where a custom layout is needed. For the wider input side of the architecture — how panels, door switches and cabin sensors feed the modules that act on them — the Switches and Sensors technical guide covers the full picture.
For drawings, a panel-layout review or a sample request against your harness, please use the contact page or message +86 134 6767 4786 on WhatsApp. Typical reply within 24 hours during China business hours (UTC+8).
