The body control module is one of those parts that almost every commercial-vehicle program needs and almost no specification describes well. "We need a BCM for the new heavy truck" is where the conversation usually starts, and it is not enough to build to. A BCM on a 6×4 tractor unit is a different module from the one on a light-duty box truck, even when both end up labelled "body control module" on the harness drawing.

This guide is the version of that conversation we have with OEM engineering buyers during project scoping, written down. It assumes you already know what a CAN bus is and want to get to the decisions that actually change the part number.

1. What a body control module actually controls

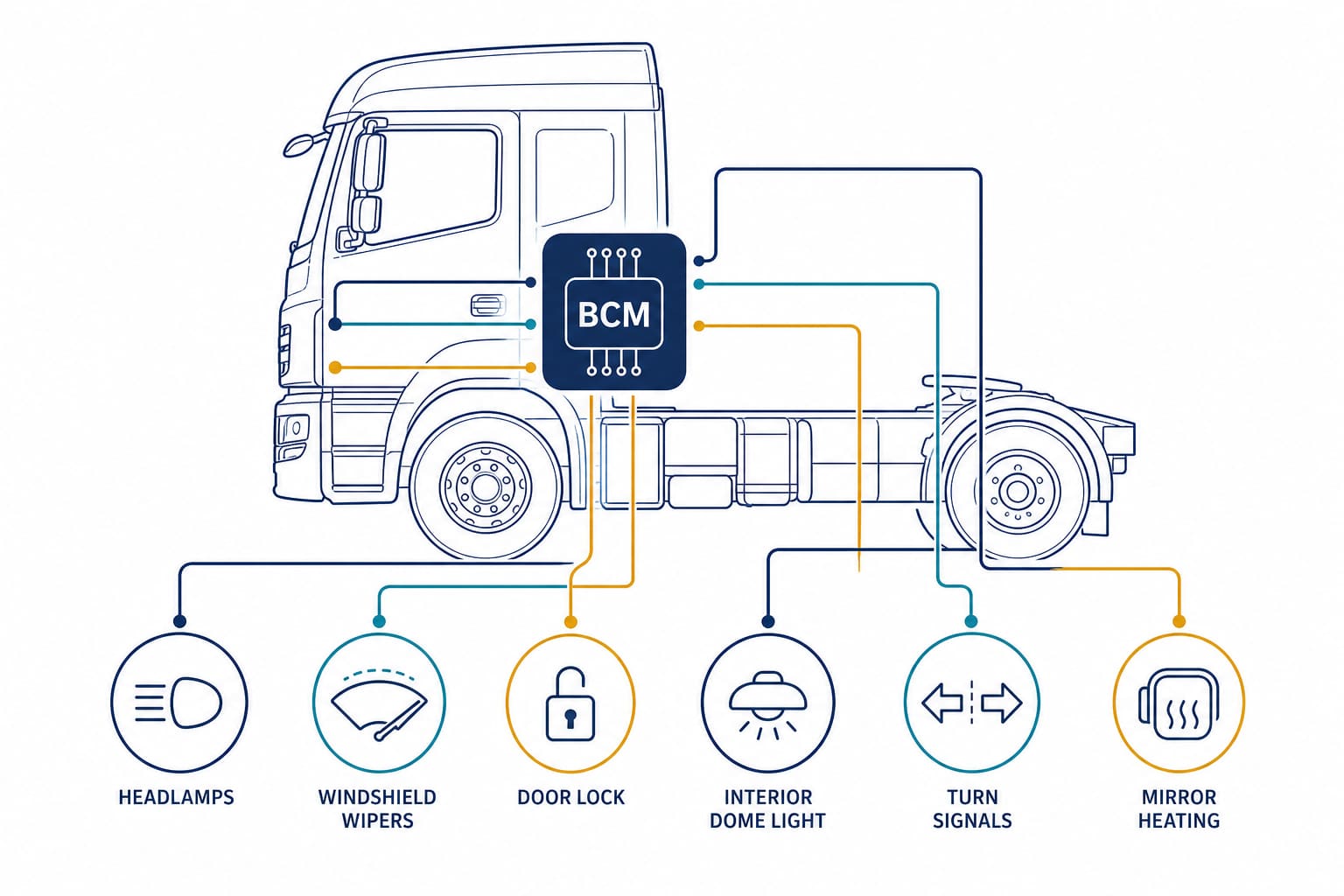

A body control module is the controller for the non-powertrain electrical functions of the cab and body. On a heavy truck that list is longer than people expect:

• Lighting. Headlamps, position and marker lamps, turn signals, work lights, interior lighting, with the load and fault diagnostics that go with each channel.
• Wipers and washers. Intermittent and continuous modes, park position, wash-wipe logic. On the Youlai catalogue this can be an integrated BCM function or a dedicated wiper controller such as EBX‑2162 / EBX‑2208.
• Doors and windows. Central locking, window lift, anti-pinch, mirror folding. These can sit inside the BCM or in companion door / window modules like EBX‑2163 and EBX‑2315.
• Comfort and convenience. Wash, HVAC blower interlocks, courtesy delays, seat and mirror memory on higher-trim cabs.
• Body and chassis interlocks. PTO permissives, reverse alarms, axle-load and tipper interlocks. Axle-load monitoring on heavy trucks is sometimes a separate controller such as EBX‑2209.

What the BCM does not control is the powertrain. Engine, transmission and the high-voltage domain on an electric truck belong to the engine ECU and the vehicle control unit (VCU). The boundary matters because it is the most common source of scope confusion in a BCM requirement. If a function involves torque, gear selection or traction battery management, it is not a BCM job. A useful litmus test: if losing the function would stop the truck moving, it is powertrain; if it would only stop a body load working, it is BCM.

2. Where the BCM sits in the truck E/E architecture

A modern heavy-truck electrical architecture is a set of controllers talking over one or more buses, with a gateway in the middle. The BCM is one node on that network, not the brain of the whole vehicle.

The typical layering looks like this:

• Powertrain bus. Engine ECU, transmission, ABS / EBS, usually on a 250 or 500 kbps J1939 segment. The BCM reads from it (road speed, ignition state, engine running) but does not write torque requests to it.
• Body bus. BCM, instrument cluster, lighting and door modules, often a second CAN segment so body traffic does not load the powertrain bus.
• Gateway. Routes and filters messages between segments, and is the single diagnostic entry point. On the Youlai catalogue the gateway role is filled by a dedicated module such as EBX‑2301 on 12 V platforms, or a project-specific gateway on a 24 V heavy-truck bus.
• Local sub-buses. LIN for low-speed actuators (mirror, simple switch panels), CAN-FD where higher payloads are needed on newer platforms.

For heavy trucks the protocol that defines the program is almost always SAE J1939, the heavy-duty application layer that runs on top of CAN. A BCM for a heavy truck has to speak J1939 PGNs correctly, not just raw CAN frames. This is the single most common place a passenger-car BCM cannot be reused on a commercial vehicle: the physical layer is the same, but the message set and the diagnostic model are not.

3. Heavy-truck, light-truck and bus BCMs are not the same part

The phrase "truck BCM" hides three genuinely different specifications. Sizing the wrong one is where programs lose time.

The 24 V versus 12 V split is the first hard fork. Most heavy trucks run a 24 V system; light trucks may be 12 or 24 V depending on the platform. A BCM rated for one is not safe to drop into the other without confirming the input range, the high-side driver ratings and the load-dump protection. The Youlai EBX body-control range is specified per program on this point rather than assumed.

4. The signals a heavy-truck BCM has to handle

Underneath the function list, a BCM is an I/O machine. When you write a specification, this is the layer the supplier actually builds to:

One detail that is easy to get wrong: the sum of the high-side driver ratings is not the same as the module's total current budget. A BCM with twelve 10 A channels does not deliver 120 A continuously; the thermal design and the connector both cap the real figure. Ask for the continuous total current at the worst-case ambient, not just the per-channel rating.

Many of those digital inputs no longer arrive as one wire per switch. On a modern cab the driver controls reach the BCM as messages from a CAN bus switch panel on the body bus — the input-side counterpart to the output drivers this section describes.

5. How to write a heavy-truck BCM specification

A BCM requirement a supplier can quote against, rather than guess at, covers six things. None of them are exotic; the cost of skipping any one of them shows up at sample stage.

1. System voltage and electrical environment. 12 or 24 V, load-dump class, reverse-polarity and over-voltage expectations. The Youlai EBX modules carry a −40 to +85 °C working range as standard; tighter ranges (sub-zero cold-start for CIS programs, high-ambient chassis-mount for desert duty) are quoted per program.
2. I/O matrix. Count of digital inputs, analog inputs, high-side outputs (with current per channel), low-side outputs, PWM channels. This is the spreadsheet that defines the part.
3. Bus architecture. Number of CAN / J1939 channels, baud rates, whether a gateway function is required in the same module or in a companion gateway, LIN or CAN-FD needs.
4. Diagnostics model. UDS services and / or J1939 DM fault messaging, DTC list per channel, whether a specific OEM diagnostic specification has to be matched.

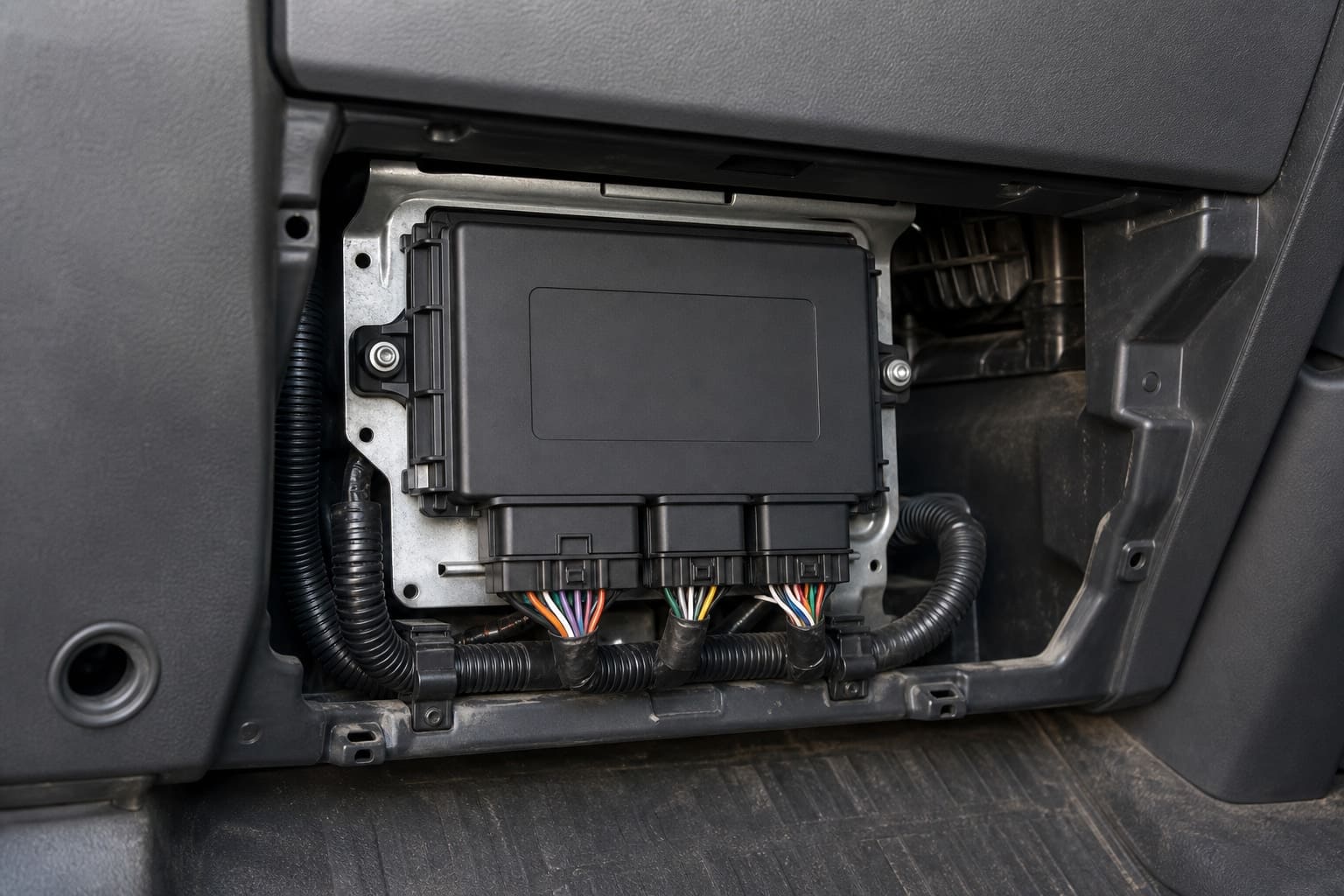

5. Mechanical and sealing. Where the module mounts (cab interior IP54, body cavity IP54–IP65, chassis-mount IP67), connector standard from the harness drawing, vibration class for the mounting location.
6. Software ownership. Who writes the application logic, who owns the bus matrix, and whether the supplier delivers a configurable platform or a fully custom load. This single line decides the lead time more than any other.

From a sourcing perspective, the software-ownership question is the one buyers leave until last and regret. A configurable BCM platform with the OEM supplying the bus matrix and load table reaches sample far faster than a from-scratch custom controller. Decide it early.

6. What to look for in a heavy-truck BCM supplier

A BCM is a safety-adjacent, long-lifecycle part. The supplier questions that matter are not about price; they are about whether the module will still be supportable in year seven of the program.

• Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on program handoff. Treat any verbal "automotive grade" claim without a certificate number as marketing.
• EMC and environmental capability. A BCM switching inductive loads is an EMC source and an EMC victim. Confirm in-house EMC pre-compliance and environmental testing rather than outsourced-only validation. Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment.
• Protocol depth. J1939, CAN-FD, LIN and UDS should be routine, not a research project. A supplier that has shipped J1939 BCMs into commercial-vehicle programs will discuss PGNs and DTCs without hesitation.
• Sealing range. If the program has chassis-mount or off-road placement, confirm the supplier offers the right protection class. The design rationale behind IP65 / IP67 enclosures is on our IP65 / IP67 protection page.
• Region-specific approvals. e-Mark / ECE for Europe, SASO for the GCC, FCC / DOT for North America are available upon project requirement, not blanket-claimed across the catalogue. An honest supplier separates certifications it holds in hand from those it runs on a project basis.

Questions you will be asked at RFQ stage

• MOQ and samples. A configurable platform variant can usually move to samples quickly; a fully custom load follows the software timeline. Sample quantities are agreed per program.
• Lead time. Driven mostly by the software-ownership decision in section 5 and by connector / packaging tooling, not by the silicon.
• PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on program handoff.
• Customisation scope. Variants on an existing EBX platform — I/O count, bus matrix, connector, sealing, J1939 message set — are routine, not an exception.

7. Suggested next step

If you are scoping a body control module for a heavy-truck program, the most useful thing to bring to a first conversation is the I/O matrix from section 5 and your harness drawing, even in draft form. That lets us map your requirement onto an existing EBX platform or tell you honestly where a custom variant is needed. For wider context on how the BCM sits among the gateway, VCU and power-distribution modules, the Smart Control Modules technical guide covers the full module stack.

For drawings, an I/O matrix review or a sample request against your harness, please use the contact page or message +86 134 6767 4786 on WhatsApp. Typical reply within 24 hours during China business hours (UTC+8).
