Smart Control Modules for Commercial Vehicles: BCM, VCU, PMU and T-BOX Explained

Technical Overview Updated May 2026

Power distribution moves current. Smart control modules decide what the current is doing. On a modern commercial vehicle the boundary between those two jobs is what most program revisions get caught on.

The body wakes up, the dashboard reads, the headlamps come on under steering-wheel control, the auxiliary battery balances against the traction pack, the truck reports its position over LTE. All of that is happening because half a dozen smart controllers are talking to each other on a shared CAN bus while the power-distribution box silently does the muscle work underneath.

Get the module partitioning wrong and the harness becomes a debugging exercise; get it right and the driver never thinks about any of it.

This guide is written for OEM purchasing and engineering teams scoping the smart-control-module stack for heavy trucks, buses, construction machinery and new-energy commercial vehicles. It covers what each ECU does, how the body and powertrain domains divide up the work, what binds the modules together through CAN-FD / J1939 / LIN and UDS diagnostics, and where the Youlai EBX series fits across the six product families and 30+ active models. For the product catalogue itself, see the Smart Control Modules category page; for the upstream protection, fusing and current-rail side, see the Power Distribution Box technical guide.

1. What the smart-control-module stack does

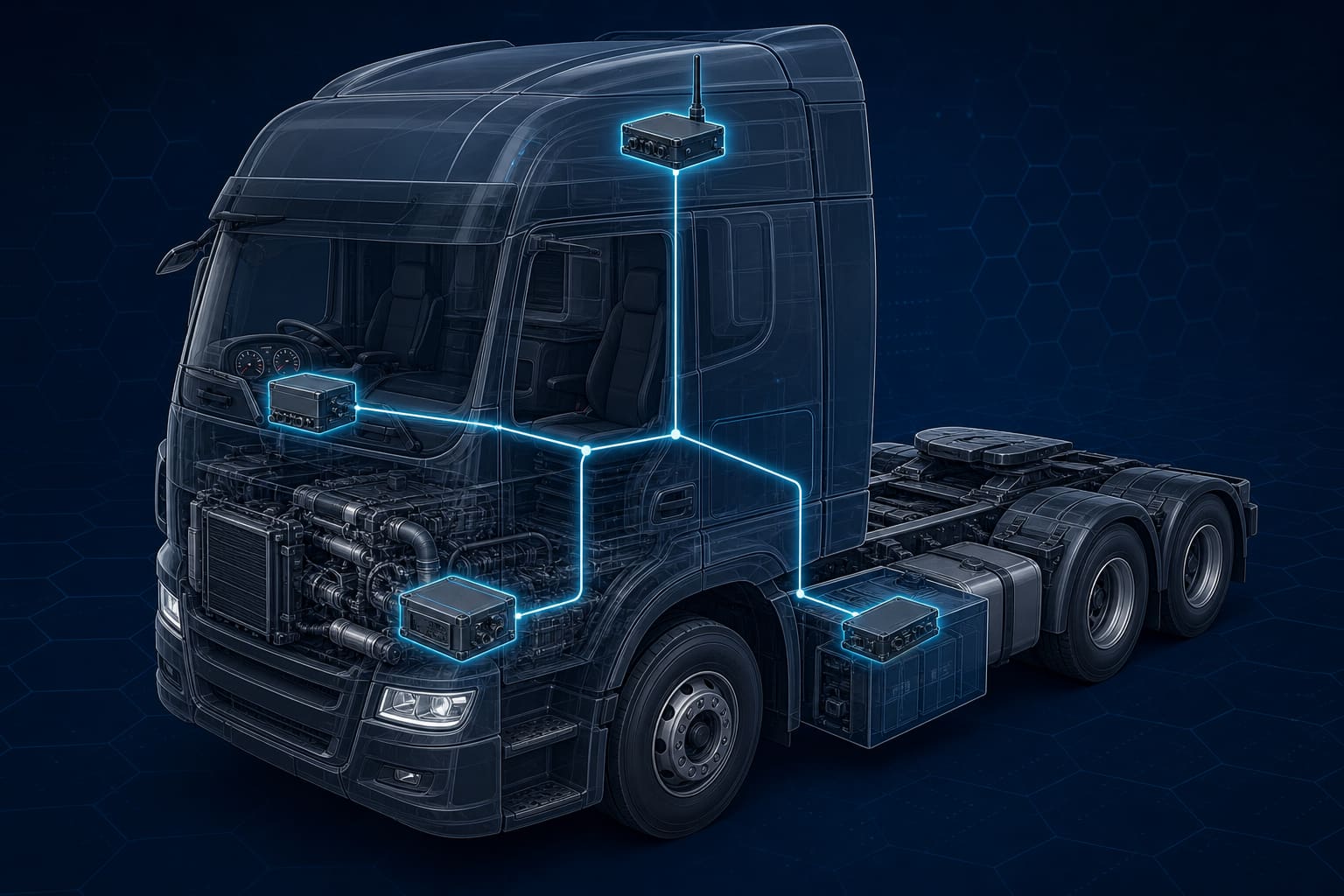

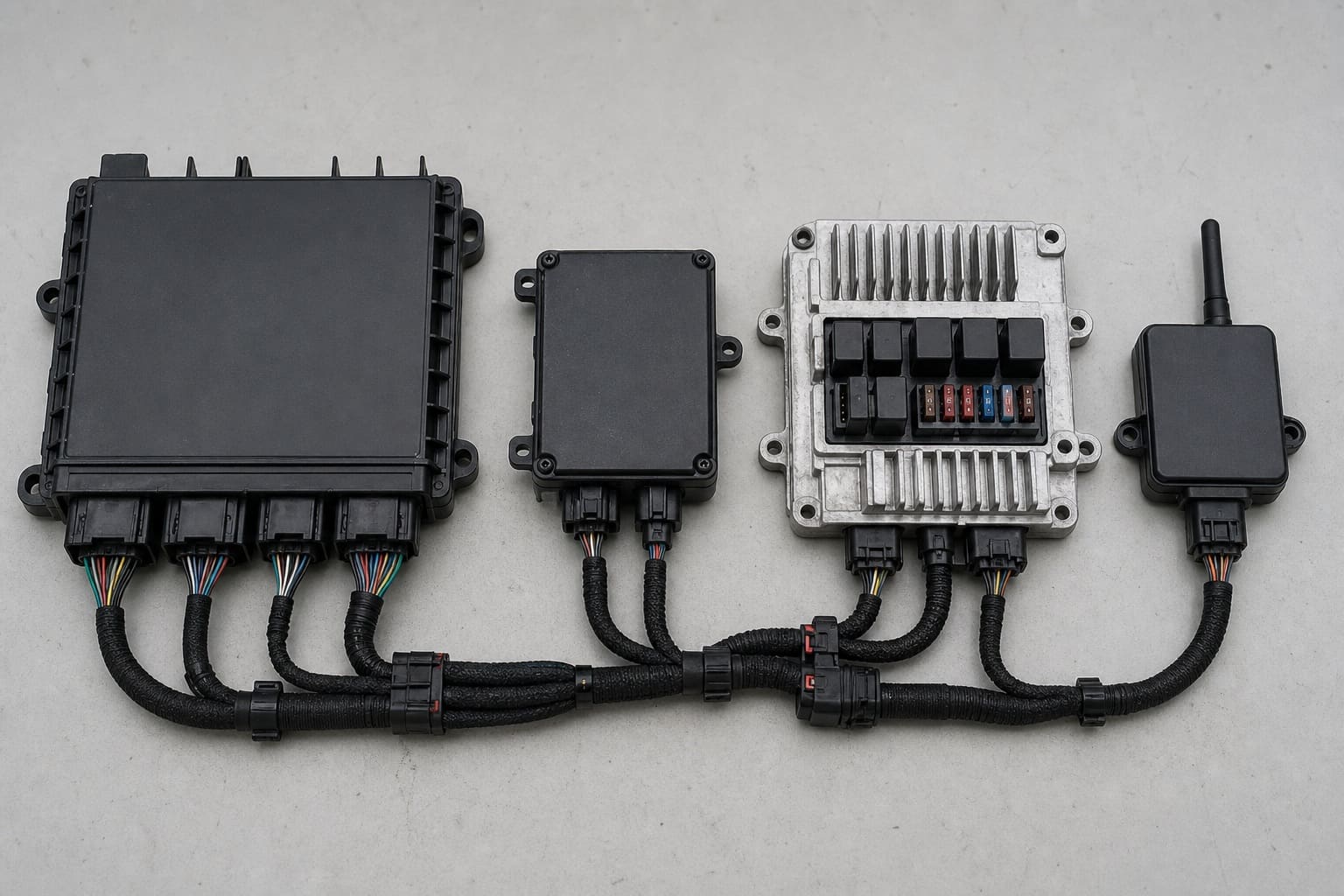

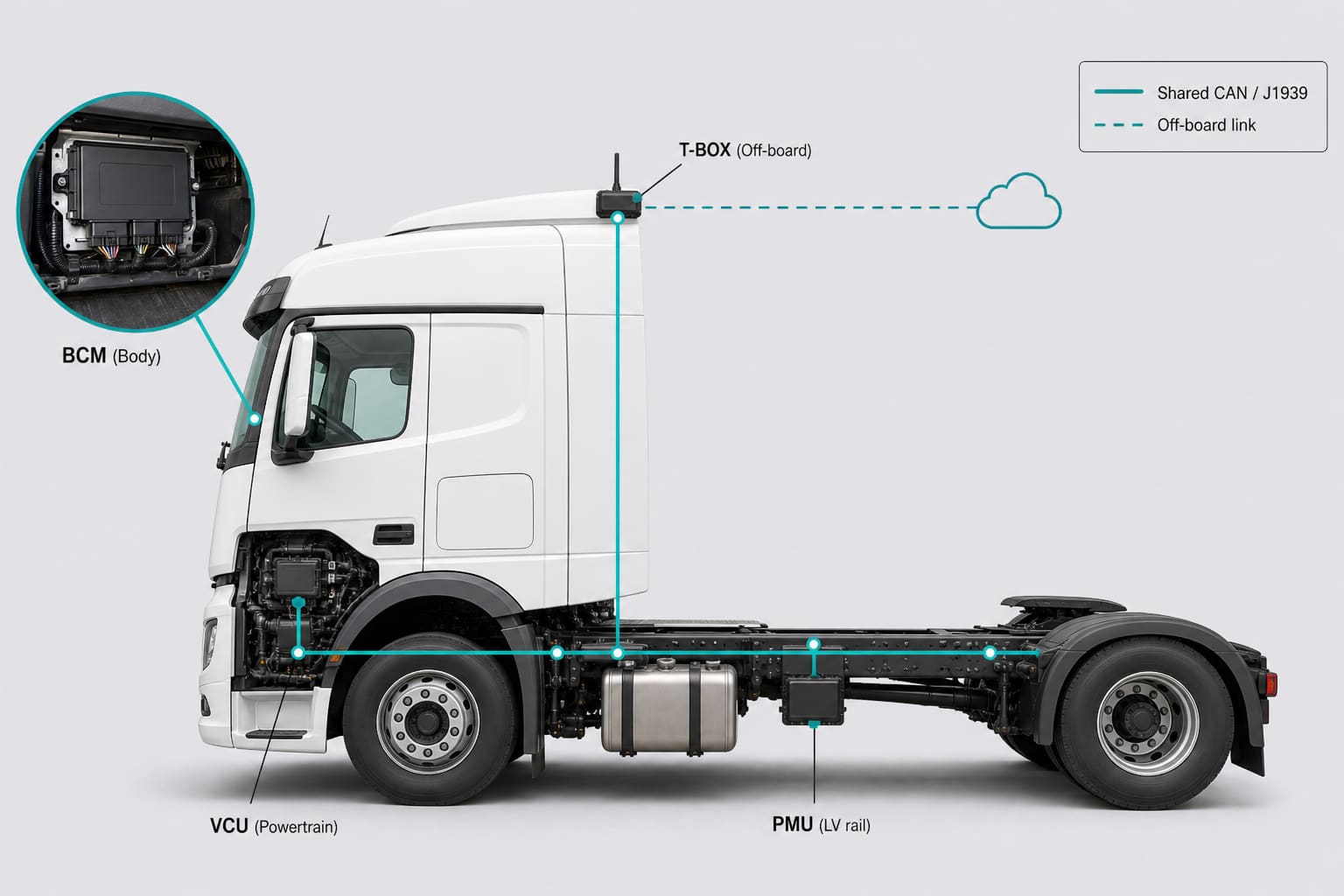

A modern commercial-vehicle E/E architecture splits the intelligence across several specialised ECUs sitting on shared communication buses. The names of the boxes vary by program but the partition is fairly stable, and a useful way to look at the stack is to group it into five domains:

• Body Control Module (BCM) — the body-electrics brain. Handles lighting, wipers, doors, windows, central locking, anti-pinch, immobiliser, key-fob and PEPS, plus the body-side CAN gateway functions. Driven by switch inputs from the dashboard, signals from the BCM's own sensors, and CAN messages from upstream domains. Outputs are mostly high-side drivers (HSDs) that switch loads via fuses and relays in the power-distribution box.
• Vehicle Control Unit (VCU) — the powertrain brain on a new-energy commercial vehicle. Decides torque demand, drive-mode logic, regen, range estimation and inter-domain coordination with the BMS, motor controller and TCU (where present). On internal-combustion platforms the equivalent role sits in the engine ECU; on electric and hybrid platforms it is the VCU.
• Power Management Unit (PMU) — the auxiliary-power brain. Runs PWM solenoid drives, HSD outputs, digital inputs and on-board fuse / relay distribution all under one ECU. On heavy-truck programs the PMU often replaces a 2-box arrangement (a separate logic ECU plus a passive PDB) because the smart-logic side and the distribution side share the same housing, the same CAN address and the same supplier-qualification cycle.
• Telematics & Connectivity (T-BOX) — the off-vehicle gateway. 4G / LTE modem, GNSS receiver, FOTA orchestration, and a CAN bridge into the central gateway. The T-BOX is what connects the truck to a fleet-management platform, regulatory tachograph, OEM service backend, and increasingly the driver's mobile app.
• Domain & specialty controllers — the smaller ECUs sitting behind the BCM that handle a single function block at high resolution: wiper control, door & window, lighting, anti-pinch, central-lock and power-step, dump-truck body coordination, axle-load monitoring, AVAS audible alerts, TPMS receivers. Each one is a small dedicated ECU that the BCM either owns directly or talks to over LIN.

Older trucks consolidated most of this into a body-mounted BCM plus a passive PDB, and a couple of smart switches in the dashboard. Modern programs split the function across more ECUs and connect them with CAN-FD or J1939 instead of dumb wiring — one wire pair carries dozens of signals, and the harness shrinks. The BCM increasingly takes over the smarter switching that used to live in dumb relay logic; the PDB stays as the protection and current-rail backbone; and a network gateway (sometimes integrated, sometimes its own ECU) sits between the body, powertrain and chassis buses to keep the message flows tidy. We cover the upstream protection layer in Power Distribution Box: Functions, Structure and OEM Applications, and how the BCM and the PDB are designed together rather than separately is one of the program decisions that benefits from early coordination between the two suppliers.

2. The BCM in a commercial-vehicle body electrical architecture

The BCM is the controller that body engineering teams spend the most time on. It carries the body harness on its outputs, the dashboard on its inputs, and the customer-visible behaviour of the vehicle through its software. If the headlamps are slow to react, the wiper park position is wrong, or the central lock takes two presses on a cold morning, that is a BCM problem first and a hardware problem second. From an OEM sourcing perspective, the BCM is also the part of the smart-control-module stack with the most platform variants, because the function set scales with the class of vehicle:

• Heavy truck (24 V) — pure-logic BCMs that drive an external PDB plus relay box, or integrated BCMs that carry their own fuses and relays inside the housing. Higher pin counts (130–180 pins typical), 6–9 sealed connector banks, and a body harness that runs the full length of the cab. EBX‑954 (24 V pure-logic, 145-pin / 6 AMP connectors) and EBX‑953 (24 V with integrated fuse / relay, 9 sealed connectors) are common reference architectures on heavy-truck programs.
• Mid truck and bus / coach (24 V) — same 24 V supply class, similar function set, but bigger feature footprint on the bus side: passenger-door logic, stop-request handling, accessibility ramp, AVAS audible alerts. EBX‑953 covers the typical 24 V mid-truck and intercity-bus program; EBX‑2510 adds configurable analog inputs for projects that mix sensor and switch inputs on the same module.
• Light commercial (12 V) — same architecture, lower supply voltage, smaller pin count. Light pickups, vans, light delivery trucks. EBX‑2313 and EBX‑2169 (12 V BCM with integrated PEPS) are the standard parts; EBX‑2169 is also the part of choice when the program wants the keyless-entry stack baked in rather than added as a separate PEPS controller.
• New-energy commercial vehicle (12 V class with HV bus alongside) — BCM still on 12 V auxiliary, but with stronger CAN-FD requirements (the body and powertrain buses carry more messages per second) and tighter wake-up / sleep behaviour because the auxiliary 12 V battery is feeding from a DC-DC instead of an alternator. EBX‑2305 is the new-energy variant we run for that envelope; EBX‑2050 sits next to it as the integrated PMU + 12-fuse + 4-relay box on the same housing.

What an OEM body engineering team should ask of a BCM at the RFQ stage is not "how many pins?" (that follows from the function list) but "which functions are handled in the BCM directly, which are delegated to LIN-attached domain controllers, and which sit on the body CAN as standalone modules?" The answer drives the rest of the harness. A BCM that absorbs the wiper, lighting and door-window logic itself needs more outputs and a smaller LIN footprint; a BCM that delegates those to dedicated EBX‑2162 (wiper) / EBX‑2164 (lighting) / EBX‑2163 (door & window) controllers needs fewer outputs but a richer LIN bus and more harness connectors.

That single architectural choice locks down most of the rest of the program. Once the partition is on the BOM, changing it after PPAP costs a respin everywhere.

3. VCU, PMU, DC-DC and battery equaliser on a new-energy commercial vehicle

The new-energy commercial-vehicle stack is where the smart-control-module conversation gets denser. The traction pack is at hundreds of volts; the auxiliary 12 V or 24 V bus has to feed the cab, the BCM, the dashboard, the lighting and the air-brake compressors; the customer expects a four-button startup, regen on the brake pedal, range estimation that does not lie, and the ability to charge from any compatible station. That is four ECUs minimum, and they have to agree with each other on the millisecond.

• VCU — vehicle control unit. Owns the torque demand, drive-mode logic, regen calibration and the high-level coordination between BMS, motor controller and TCU. EBX‑960 is our standalone VCU for new-energy commercial-vehicle platforms (7–48 VDC working range, IP65 zinc-alloy housing, ASIL-aware design baseline). EBX‑960B is the next-generation VBU power-domain controller that fuses the VCU and BMS algorithms onto a single 200 MHz MCU with 2 ISO 11898 CAN channels — a single ECU instead of two, and lower inter-ECU coordination traffic on the vehicle CAN because those messages no longer need to leave the box.
• PMU — power management unit. Auxiliary-side intelligence. PWM solenoid drives, HSD outputs, digital inputs, plus on-board fuse / relay distribution all on the same housing. EBX‑2050 is the 24 V integrated PMU + 12-fuse + 4-relay box (8 sealed connectors, IP54). EBX‑2052 is the high-current sibling with 2 × 50 A direct DO channels, 7 sealed connectors, IP66 sealing and dual J1939 buses for programs that need a sealed-chassis PMU instead of an in-cabin one. EBX‑2160 is the much larger 24 V Central Power Distribution Module (CPD) with 11 relays and 60+ fuses for the largest heavy-truck and bus programs.
• HV-side DC-DC. Steps the traction-pack voltage down to the 24 V or 12 V auxiliary bus that the BCM, lighting and dashboard live on. EBX‑2314 is the 36 kW 600 VDC → 24 V controller (more than 95% peak efficiency, J1939 + UDS, with pre-charge), the heavy-duty member of the family. EBX‑2512 is the 6 kW 400–1100 VDC → 28 V converter (dual-fan IP68, AVIC EP1 + Recodeal connectors, GB 18384 compliance) for medium-duty conversion. EBX‑2514 covers the V2L (vehicle-to-load) duty — 30 kW HV-DCAC inverter outputting 220 VAC / 50 Hz with quad-fan IP68 sealing and an Amphenol AC out, for trucks that double as mobile power sources.
• 24 V → 12 V auxiliary stage. Sits below the HV-side stack on heavy-truck and bus programs that mix 24 V chassis loads with 12 V comfort and infotainment loads. EBX‑2407 is the dual-battery equaliser for the main 12 V auxiliary bus (16–32 VDC input, 100 A or 30 A SKUs, IP67 + IP66K sealing). EBX‑2515 is the isolated 12 V auxiliary module for sensitive sub-systems (1000 V isolation, 9–36 VDC input, 92.2% peak efficiency, IP67 encapsulated, VT-DD241215S form factor).

From a sourcing perspective, the most-frequently-overlooked detail in the new-energy stack is the supplier-qualification cost of running this many ECUs through PPAP / APQP / FMEA in parallel. Five different ECUs from five different suppliers is five separate qualification cycles, five separate field-failure response chains, and five separate firmware-revision schedules. A single-supplier stack across VCU + PMU + DC-DC + equaliser + auxiliary DC-DC compresses that to one qualification cycle and one CAN integration pattern: same calibration tooling, same diagnostic UDS service IDs, same connector strategy, same housing-sealing test protocol. That is the practical reason consolidating the smart-control-module stack with a single supplier can reduce qualification overhead and simplify CAN integration on heavy-truck and bus programs.

4. CAN-FD, J1939, LIN and UDS — how the modules talk to each other

The smart-control-module stack is held together by four protocols, and each one has a specific job. Mixing them up at the RFQ stage is one of the easiest ways to mis-spec a program.

• CAN 2.0 / CAN-FD. The base layer for inter-ECU communication on commercial vehicles. CAN 2.0 caps at 1 Mbit/s and 8-byte payloads; CAN-FD bumps the data-phase rate to 2–5 Mbit/s and the payload to 64 bytes per frame. The body bus on a modern truck is normally CAN 2.0 at 250 or 500 kbit/s; the powertrain bus increasingly runs CAN-FD because the BMS and VCU exchange more data per cycle than CAN 2.0 can carry. Major EBX modules in the new-energy and heavy-truck families use 32-bit automotive MCUs with hardware CAN-FD controllers, even when the immediate program runs only CAN 2.0 — the cost is negligible at design time and it avoids a respin three years out when the customer asks for CAN-FD on the next platform.
• SAE J1939. The application-layer protocol that sits on top of CAN for heavy-duty commercial vehicles. Defines the parameter group numbers (PGNs), source addresses, transport protocols and OEM-supplier interoperability conventions that an engine, transmission, ABS and BCM use to talk to each other. A heavy-truck program normally needs J1939 alignment early in the architecture review. EBX‑954 (24 V heavy-truck BCM), EBX‑953, EBX‑2050 (PMU), EBX‑2160 (CPD) and EBX‑957 (TPMS receiver) all run J1939 on at least one of their CAN channels.
• LIN. The low-bandwidth single-wire bus that connects the BCM to its specialty controllers. Wiper module, door & window module, lighting module, mirror module, anti-pinch — all of these typically sit on a LIN segment off the BCM. EBX‑961 (24 V wiper + lighting + RLS smart combo with 24-pin TE connector) is a good example of a LIN-attached domain controller that the BCM addresses as a slave. The trade is bandwidth: LIN tops out at 19.2 kbit/s, which is plenty for switch state and motor commands but nowhere near enough for the body-side video or radar links that increasingly need their own CAN-FD or Ethernet segments.
• ISO 14229 UDS. The diagnostic protocol that the OEM scan tool, the production-line tester, the dealer service tool and the field-service technician all speak. Read DTCs, clear DTCs, read identification, write configuration, run actuator tests, flash firmware. UDS is what makes a smart control module supportable across its 10–15 year life on a commercial-vehicle program; an ECU without UDS is an ECU that the customer cannot service. EBX control modules are developed around UDS-style diagnostic workflows; specific service IDs and ECU configurations are tuned per project. In-house EMC and environmental testing covers the qualification side — a relay-heavy BCM or PMU radiates if the suppression is wrong, and on a CAN-FD bus that shows up first as bus errors before it shows up on a regulatory test sheet.

The interaction matters. A BCM that runs CAN 2.0 cannot directly host a CAN-FD subscriber on the same bus segment without a gateway, even though the physical layer is identical: the data-phase rate is incompatible. A J1939 message that arrives on a body-CAN segment which is not J1939-aware is a wasted address slot and a confused diagnostic tool. A LIN-attached wiper module that is asked to do high-resolution rain-sensor adaptation needs the BCM to broker the rain-sensor data over LIN frames and the timing margin gets tight.

EBX‑2301 sits in the middle of this conversation as the 12 V vehicle network gateway with 6 CAN + 3 LIN channels and CAN-FD readiness. On programs that run multiple bus segments at once, a dedicated gateway is normally lower-risk than negotiating the timing across an integrated BCM gateway.

5. Where the Youlai EBX series fits

The Youlai EBX series is a family of OEM-grade smart control modules built for the duty cycles, vibration profiles, EMC environments and 10–15 year service lives that Chinese commercial-vehicle and construction-machinery manufacturers run their programs against. 30+ active EBX models cover the spectrum from full-scope BCMs through to power-conversion blocks, telematics units and single-function specialty controllers. The six product families:

Common operating envelope across the EBX family: 32-bit automotive MCUs with hardware CAN-FD, ASIL-aware design baseline on the powertrain-domain parts, AUTOSAR-style layered software architecture, working temperature ranges typically −40 to +85 °C across the lineup (specific per-model bands per datasheet), supply ranges 9–16 VDC for 12 V class and 18–32 VDC for 24 V class with the new-energy converters reaching 1100 VDC on the input side, IP54 to IP68 sealing matched per application, ISO 11898 CAN / SAE J1939 / LIN / ISO 14229 UDS support, and IATF 16949 manufacturing throughout. The full 30+ EBX matrix with images, application notes and direct product-page links sits in the EBX model lineup on the category page; product-level drawings, BOMs and OEM compliance documentation are available via the contact page or directly on WhatsApp.

If the program has not yet decided how to partition the smart-control-module stack across the body, powertrain and connectivity domains, the best starting point is to scope the function list against the BCM platform first, then add the powertrain VCU / PMU / DC-DC conversion blocks based on the new-energy decision, and finally add T-BOX and gateway based on the connectivity requirement. The supplier conversation goes more smoothly when the stack is sketched on one sheet rather than negotiated module-by-module across several email threads — for an architecture review against an existing program brief, the Power Distribution Box Manufacturer in China — IATF 16949 Certified OEM Supplier page covers the supplier-side process and the same project workflow applies to the EBX family.
