Vehicle Lighting Control Module: How Trucks and Trailers Run Their Lights

Updated July 2026

When a driver pulls the stalk to flash the high beam, taps the brake, or hooks up a trailer and checks the lights before rolling, none of those lamps switch themselves. On a modern commercial vehicle they are commanded by a lighting controller — either a dedicated lighting control module (LCM) or the lighting function inside a body control module. It reads the combination switch and the brake and reverse signals, drives the lamps on the tractor and, on a tractor-semi-trailer, the trailer lamps too, and reports the lighting state onto the vehicle network.

This guide is written for OEM engineering buyers scoping the lighting electronics on a new cab program. It assumes you know what a CAN bus and a BCM are, and that your program is deciding how to drive the lighting group — whether that is a 24 V heavy-truck tractor pulling a trailer, a 24 V rigid truck, or a 12 V new-energy platform where lighting is one function among the whole body group.

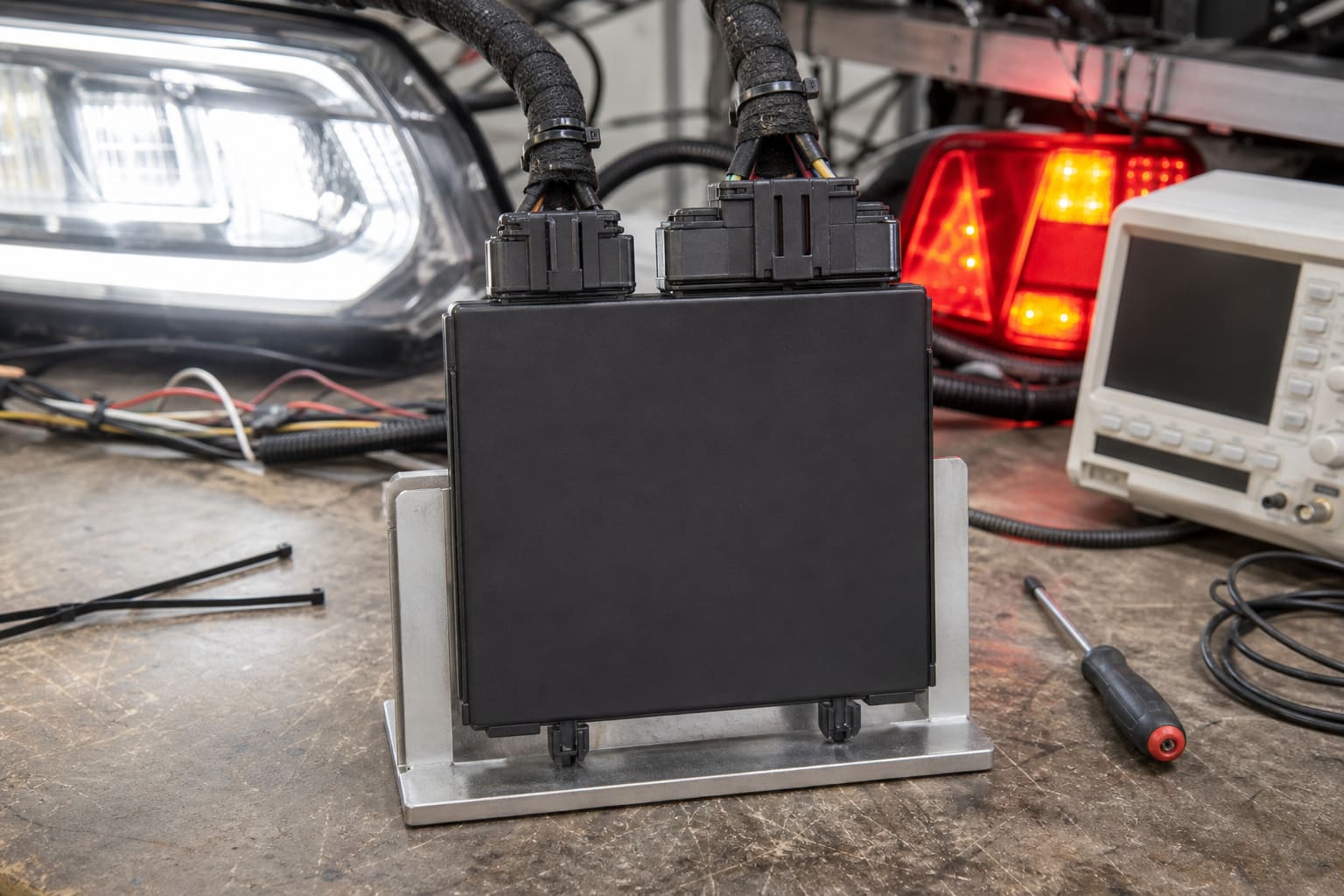

1. What a lighting control module does

A lighting control module is the controller for the vehicle lighting group. It reads the driver's lighting inputs — the combination switch on the steering column, the brake and reverse signals, the hazard button, the light sensor — decides which lamps should be on, and drives them with protected high-current channels. On a networked vehicle it also publishes each lamp state onto CAN so the cluster mirrors the real light state. On a commercial vehicle the module is usually responsible for some or all of:

• Headlamps and position lamps. Parking / position, low beam, high beam and overtake-flash drive, often with an auto-light input tied to a light sensor for dusk activation.
• Signalling lamps. Turn and hazard drive on both sides, daytime running lamps (DRL), and — on long vehicles — the auxiliary turn-repeater outputs.
• Rear and functional lamps. Brake lamps, reverse lamps, front and rear fog, and the rear work-light used for cargo or coupling operations.
• Trailer lighting, where fitted. Trailer turn, trailer brake and trailer rear fog drive, plus — on a module built for it — a trailer-light health-detect input that reports a disconnected or failed trailer-light loop.
• Network and housekeeping. A CAN link to the body backbone, lamp-state reporting, self-diagnosis, and the protection logic that guards each drive channel against the shorted-bulb or chafed-wire faults common on lighting circuits.

On the Youlai catalogue this role is filled at more than one tier. The EBX‑2164 LCM is the dedicated 24 V lighting controller that owns the full tractor-plus-trailer lighting group on one box; a full body controller such as the EBX‑954 24 V heavy-truck BCM (or the integrated fuse/relay EBX‑953) and the EBX‑2305 new-energy BCM carry the lighting drive as a subset of a wider body controller. Which tier fits is the sourcing decision, covered in sections 3 and 4.

2. How the switch, module and lamps connect

The lighting group is a three-stage chain: the inputs the driver operates, the module that decides and drives, and the lamps that light. Seeing that chain is what lets you tell a combination-switch question from a control-module question later.

The driver inputs

Most lighting commands originate at the combination switch — the multi-function stalk on the steering column that carries the headlamp ring, turn signal, high-beam and overtake-flash, and often the front and rear fog positions. Alongside it sit the hazard button, the brake-pedal and reverse-gear signals, and — where fitted — a light sensor that requests auto-light at dusk. These are the raw requests. On some cabs the stalk switches feed the module as discrete lines; on others they arrive decoded over a low-speed link. Either way the switch only asks; it does not drive the lamp.

The control module

The LCM reads those inputs and drives the loads. This is where the current actually flows: a protected high-current channel for each lamp function, sized for the incandescent or LED load on that circuit. It is also where the protection lives — the EBX-2164 carries a four-fold set (over-voltage, over-current, short-circuit, over-temperature) on each drive channel, which matters most on lighting, where a shorted bulb or a chafed lamp wire is a routine fault and the protection envelope keeps one failed circuit from taking out its neighbours. On a networked cab the module publishes every lamp state onto CAN and takes commands, such as a remote hazard or a fleet-requested work-light, back from it.

The lamps and the feedback path

The headlamps, signal lamps, brake and reverse lamps and the trailer lamps are the output. On a module built for trailer duty, this stage also closes a feedback path: the controller watches the trailer-light loop for an open or shorted circuit and reports the on-line or off-line state over CAN. That report is why a disconnected-trailer warning is a controller function, not a switch function — the stalk cannot know a trailer plug fell out, but the module driving the trailer lamps can.

3. Where the function lives: dedicated LCM, BCM subset or switched relays

The first real sourcing decision is not which part number, but where the lighting function should physically live. There are three patterns, and picking the wrong one shows up later as either a redesigned BCM or a loom full of relays that nobody can diagnose.

The BCM-subset route is cleaner when one ECU can reasonably own the body group, because every function on that board stops needing its own connector and CAN message to talk to its neighbour. The dedicated-LCM route wins when the lighting side is heavy on its own — a trailer to drive and detect, an ADAS camera to pass through, a channel count that would crowd the BCM — so isolating it on a box such as the EBX-2164 keeps the main controller lean and puts the lighting drive close to the front-loom aggregation point. The switched-relay route still exists on the simplest builds, but it gives up the lamp-state reporting and trailer diagnostics that fleets increasingly ask for.

4. System voltage, the trailer side and ADAS: choosing the tier

Once you know where the function lives, three parameters decide the exact part: the system voltage, whether the vehicle pulls a trailer, and whether ADAS warnings need to pass through the lighting controller. Those three separate the Youlai lighting tiers cleanly.

Read the table by voltage first, then by the trailer side. A 24 V tractor or tractor-semi-trailer program that wants a dedicated lighting controller points to the EBX-2164: it drives the full lighting set across both halves of the vehicle, carries the trailer-light health-detect input, offers three speed-threshold digital outputs (greater than 0, 40 and 80 km/h) for speed-gated logic, and runs the LDWS/FCW ADAS pass-through so a camera program does not need a separate gateway. A 24 V program that wants lighting folded into one rugged body controller points to the EBX-954 heavy-truck BCM, where lighting is a subset alongside the rest of the body electronics (step up to the integrated fuse/relay EBX-953 if the same box should also carry the distribution). A 12 V new-energy commercial platform where lighting rides with the whole body group points to the EBX-2305 full-scope BCM. And whichever controller drives the lamps, the combination switch is the driver input — the request side of the same sub-system, not an alternative to the module.

The mistake buyers make here is treating the trailer side and the ADAS pass-through as line items any lighting module carries. Trailer-light detection needs a health-detect input and the CAN reporting to surface a disconnected-trailer warning; ADAS pass-through needs dedicated LDWS/FCW inputs and the forwarding logic. Both are present on a module built for the tractor role like the EBX-2164, but they are not a default on a BCM that carries lighting as a subset. If your vehicle pulls a trailer or runs an ADAS camera, say so in the requirement; it changes which tier answers.

5. Where these modules show up on commercial vehicles

The lighting group looks similar across vehicles, but the reason it is specified — and the tier it needs — changes with the platform.

• Heavy-truck tractors. A 24 V tractor pulling a semi-trailer is the classic case for a dedicated LCM such as the EBX-2164: the trailer lamps need driving and detecting, the fleet wants the disconnected-trailer warning on the cluster, and an ADAS camera often needs its LDWS/FCW warnings surfaced without a separate gateway. The dual power-supply rail (V_BAT1 plus V_BAT2) lets the tractor-side and the heavier trailer-side loads be fused independently.
• Rigid trucks and vocational vehicles. A 24 V rigid without a trailer often folds lighting into a full body controller like the EBX‑954 heavy-truck BCM, where the rear work-light and the fog drive ride alongside the rest of the body electronics. See the heavy-truck BCM guide for where lighting sits inside the wider body group.
• Bus and coach. The lighting functions sit on a body network shared with door, destination-sign and passenger systems, so a networked controller reporting lamp state onto CAN tends to win over a fully relay-driven loom.
• New-energy commercial platforms. On a 12 V body network the lighting drive usually rides inside a full-scope BCM such as the EBX‑2305 new-energy commercial BCM, coordinating with the rest of the body electronics rather than living on its own box.

A recurring thread is the auto-light function: a light sensor that requests headlamps at dusk feeds the module's auto-light input, and on many programs the same sensor family also drives the automatic wipers. On a program that would rather not split lighting, wiper and the rain-light interface across separate boxes, an integrated LIN controller such as the EBX‑961 (wiper, lighting and rain-light-sensor combo) carries all three on one module. If your program wants auto-light or rain-sensing, the rain and light sensor guide covers how that sensor connects into the lighting and wiper controllers.

6. How to write a specification a supplier can quote

A lighting-module requirement a supplier can quote against, rather than guess at, covers six things. Skipping any one of them is what turns a quick quote into a round of questions.

1. System voltage. 12 or 24 V nominal and the tolerance band. This is the first fork: 24 V dedicated lighting points to the EBX-2164 tier; a 12 V body network usually folds lighting into a BCM like the EBX-2305.
2. Vehicle configuration. Tractor only, rigid, or tractor-semi-trailer. This decides whether trailer drive and trailer-light detection are in scope, and whether a dual power-supply rail is worth it.
3. Lighting function list and lamp load. Parking, low / high beam, overtake-flash, front and rear fog, brake, reverse, turn, hazard, DRL, work-light, auto-light — and, for each, whether the lamp is LED or incandescent, its per-channel current, and whether open-load detection or PWM dimming is needed. This sets the channel count, the driver sizing and the connector size.
4. Trailer detection and ADAS. Whether a disconnected-trailer warning is required (and the trailer-harness type), and whether LDWS/FCW ADAS pass-through and speed-threshold outputs are needed. These are distinct capabilities, not defaults.
5. Vehicle interface. The CAN protocol and baud to the body network (250 kbps is typical on 24 V commercial vehicles), and how the combination switch and light sensor feed the module — discrete lines or a low-speed link.
6. Connector, IP rating and market. The connector and housing preference, the sealing class (IP53 suits in-cab installation), and the destination market, which fixes any market-specific EMC or approval scope. Settle it early; it is the section most often left blank.

The decision buyers leave until last and regret is the trailer-and-ADAS scope in point four. It changes the controller tier, the input count and the CAN message set, and adding it after the harness is drawn is expensive. Decide it with the function list, not after.

7. What to look for in a supplier

A lighting module drives high-current channels where a shorted bulb is a routine event, carries the trailer-light diagnostics a fleet depends on, and — where ADAS pass-through is fitted — forwards safety warnings onto the vehicle network. The supplier questions that matter are about capability and honesty, not headline price.

• Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on program handoff. Treat any verbal "automotive grade" claim without a certificate number as marketing.
• Drive-channel protection design. Lighting circuits see shorted bulbs and load dumps as routine, so each channel needs real protection — the four-fold set (over-voltage, over-current, short-circuit, over-temperature) on the EBX-2164 keeps a single-lamp fault from taking out its neighbours. A supplier should discuss short-circuit handling concretely.
• Trailer detection and CAN reporting, if you need them. A disconnected-trailer warning depends on a health-detect input and the CAN message that surfaces it on the cluster. A supplier that has shipped it should talk about the detection threshold and the false-alarm tolerance, not promise a blanket "trailer detection" feature.
• Standards and EMC capability. A 24 V lighting module builds against the usual commercial-vehicle set (QC/T, ISO 16750, ISO 7637). Confirm in-house EMC pre-compliance and environmental testing rather than outsourced-only validation. Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment.
• Region-specific approvals. Any market-specific lighting or ADAS approval is available upon project requirement, confirmed per market on a project basis rather than blanket-claimed across the catalogue. An honest supplier separates what it holds in hand from what it runs per project.

Questions you will be asked at RFQ stage

• MOQ and samples. A configurable variant of an existing platform such as the EBX-2164 can usually move to samples quickly; a connector, channel map or trailer-detection profile unique to your program follows the firmware and validation timeline. Sample quantities are agreed per program.
• Lead time. Driven mostly by the harness and connector confirmation and any ADAS pass-through integration, not by the hardware build itself.
• PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on program handoff.
• Customisation scope. Variants on an existing platform — channel count, connector, CAN matrix, speed-threshold profile, trailer-detection tuning — are routine, not an exception.

If you are scoping the lighting group, the most useful things to bring to a first conversation are your system voltage and your vehicle configuration from section 6 — whether the vehicle pulls a trailer, whether an ADAS camera needs passing through, and whether lighting should live on its own LCM or inside the BCM. That lets us map your requirement onto the EBX‑2164 LCM or a BCM such as the EBX‑954 / EBX‑953 (24 V) or the EBX‑2305 (12 V), pair it with the combination switch and light sensor on the input side, or point out where a custom variant is the honest answer. For how the lighting group sits among the BCM, VCU, PMU and gateway, and alongside sibling cab-side modules like the EBX‑2162 wiper module and the door and window module, the Smart Control Modules technical guide covers the full stack.
