Commercial Vehicle HUD: How Head-Up Displays Keep a Driver's Eyes on the Road

Updated June 2026

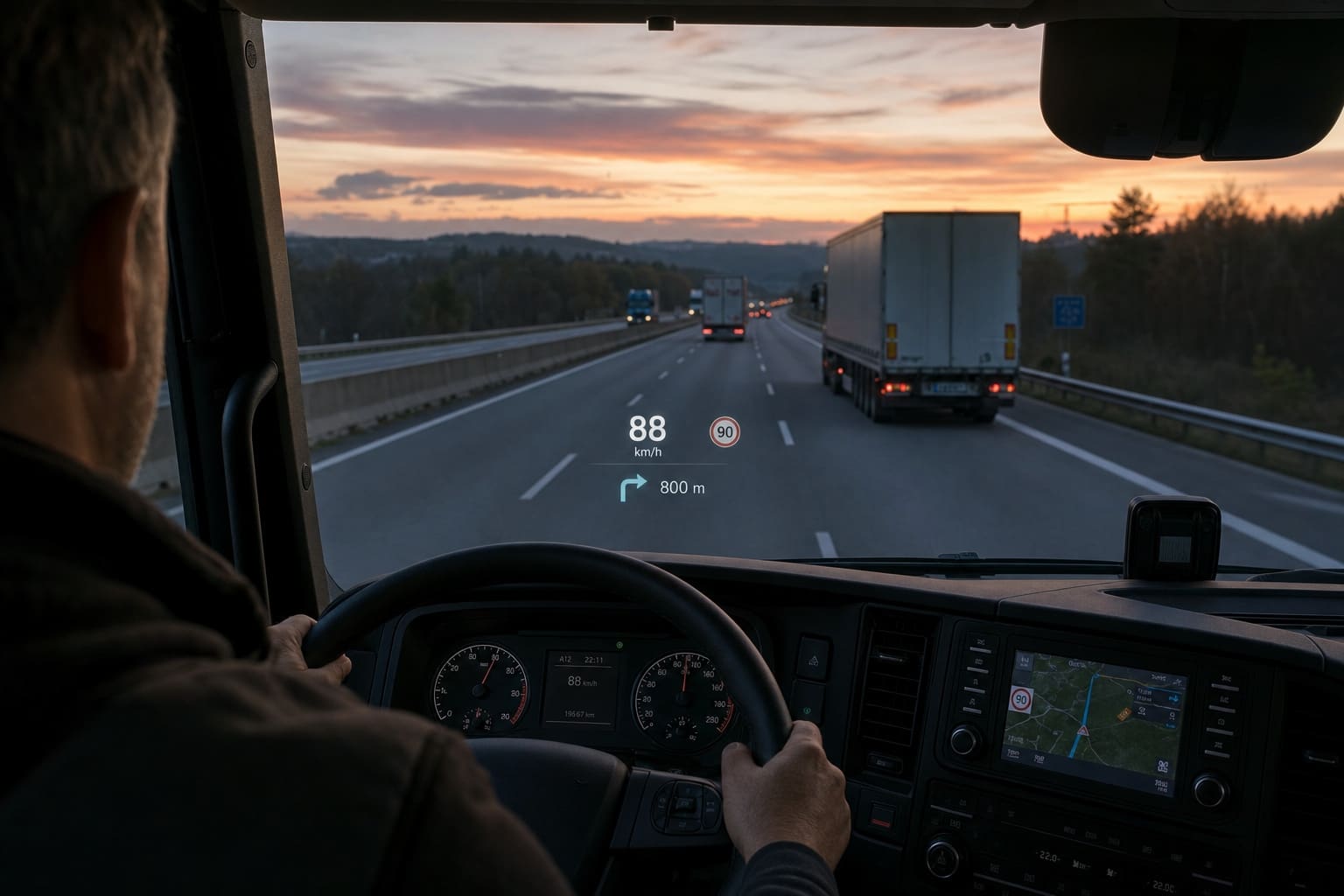

A head-up display moves the few pieces of information a driver checks most often — speed, the next turn, a lane-departure warning — off the instrument cluster and into the forward line of sight. On a passenger car that is a comfort feature. On a commercial vehicle, where the driver is in the seat for a full shift and the route mixes dense city sections with long monotonous highway runs, the case is ergonomic rather than cosmetic.

This guide is the version of the conversation we have with OEM engineering buyers scoping a HUD for a new cab or an upfit programme. It walks through what a HUD is, how the two mainstream architectures differ, where the data on the screen comes from, and the parameters that actually change the specification.

1. What a commercial vehicle HUD actually is

A head-up display is a projection module that throws a virtual image of selected driving information into the driver's forward field of view. The image appears to float ahead of the vehicle at a set distance, so the eye reads it at close to the same focus as the road rather than refocusing down to a dashboard cluster and back. The module does not generate the information it shows; it is a rendering surface fed by the vehicle's electronics.

Two things define the part you are buying: the optical path that forms the image, and the data link that supplies the content. The optical path decides whether the HUD projects onto the windscreen or onto a small dedicated combiner glass, which in turn sets the image size, the projection distance and most of the cost. The data link is the vehicle bus — CAN, CAN-FD or J1939 — over which the cluster ECU, the navigation head-unit and the ADAS controller dispatch the speed, prompts and warnings the HUD draws.

You will see the same product described as a HUD, a head-up display, a windshield display or a combiner display. Youlai builds both mainstream types: the PBX‑961 windshield HUD projects a 15-inch virtual image onto the windscreen at a 2.4 m distance, and the entry-level PBX‑2203 combiner HUD projects an 8 to 12-inch image onto a fold-up combiner glass at 1.5 to 2 m. The difference between those two lines is the first decision in a HUD specification, and section 3 is about how to make it.

2. How a head-up display works

Behind the projection face a HUD is an optical instrument with an image source, a folded mirror path and a thermal design holding it together. The chain runs from a panel through mirrors to the projection target:

• Image generation. A light source illuminates a display panel that renders the HUD content. On commercial-vehicle programmes this is usually an LED light source behind a TFT panel — the same back-light-plus-LCD principle as a dashboard cluster, tuned for the high luminance a daylight-readable HUD needs. DLP and LCoS imagers exist but sit at the passenger-car luxury end of the market.
• Optical path. One or more mirrors fold the light from the panel and magnify it into a virtual image at the design projection distance. Higher-end windshield units use free-form mirrors — mirror surfaces not constrained to a sphere or cylinder — so the optical designer can correct distortion, ghosting and brightness uniformity together, which a simple curved mirror cannot.
• Projection target. The image lands either on the windscreen (a windshield HUD) or on a small fold-up combiner glass on top of the enclosure (a combiner HUD). This choice drives the rest of the design more than any single component does.
• Brightness and thermal control. A HUD has to stay readable against a bright sky, so the imager runs hot under sustained full-brightness operation. A dedicated heat-sink keeps the panel and light source inside their rated temperature envelope, and brightness control follows ambient light so the image does not dazzle at night.

The content side is just as important as the optics, and it is where a HUD programme touches the rest of the cab electronics. The HUD does not measure vehicle speed or compute a navigation route; it receives them. Speed comes from the cluster or the powertrain over the vehicle bus, turn-by-turn prompts come from the navigation head-unit, and ADAS warnings such as lane departure come from the ADAS controller. The HUD subscribes to those messages and renders them.

That makes the message interface part of the specification, not an afterthought. Which signals the HUD displays, on which bus, with which identifiers, is a document that has to be agreed the same way a switch-panel message matrix is. If your cab uses a multiplexed network for its controls, the CAN bus switch panel guide covers the bus-addressing thinking that applies equally to a HUD node.

3. Windshield HUD or combiner HUD: which to use

The single biggest decision in a HUD specification is the projection architecture. A windshield HUD (W-HUD) projects onto the windscreen itself; a combiner HUD (C-HUD) projects onto a small dedicated glass that folds up from the top of the enclosure. They are not two grades of the same thing — they are different optical problems, with different cost and packaging consequences.

The combiner approach is simpler because it projects onto a purpose-made glass with uniform thickness and a coating tuned to the projection wavelength, so the optical correction reduces to a clean 2D surface. A windshield HUD has to compensate for the windscreen's 3D curvature, its tint and an asymmetric eye-box, which is why it needs the free-form mirror stack and a tuning pass per cab. The pay-off is a bigger image further away, which reads as more immersive and sits closer to the focus distance of the road.

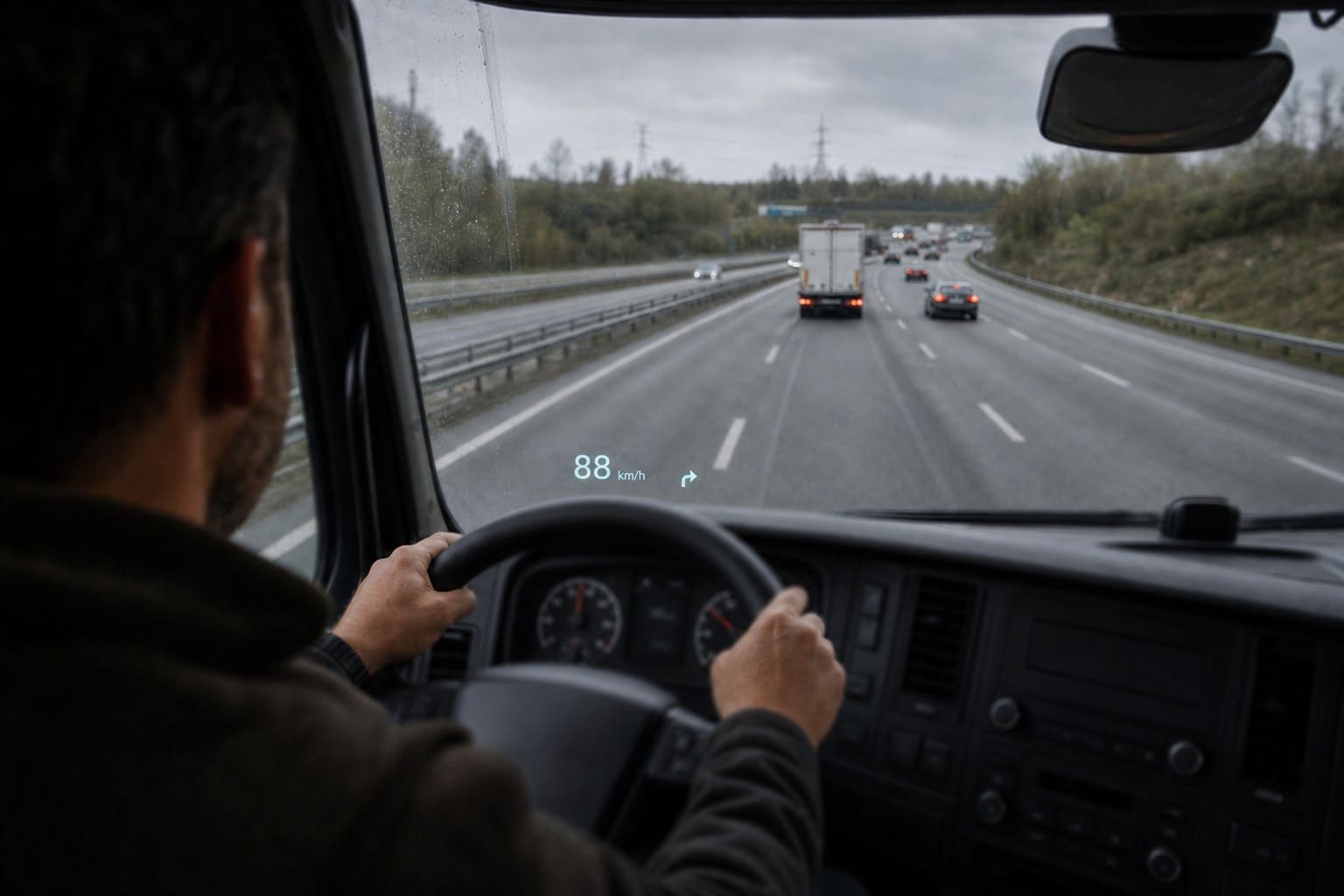

One often-missed point on a windshield unit is that the enclosure cannot be fully recessed below the dash line. In a typical commercial-vehicle driver position the eye-down angle to the road is around 14° below horizontal; recessing the HUD forces a steeper angle at which the steering-wheel rim starts to occlude the projected image. That is why a W-HUD such as the PBX‑961 is designed to sit proud of the dash top with the projection face pointing up to the windscreen, and it is worth knowing at the cab-design stage rather than discovering it during packaging.

The other windshield-specific point is the glass itself. A W-HUD projects through a wedge-shaped interlayer laminated into the windscreen; a standard screen without that wedge returns a doubled, offset image. The wedge has to be called out when the glass is sourced, not after the first cab build, so on a W-HUD programme the windscreen and the HUD belong in the same specification conversation. A combiner HUD sidesteps this entirely, because it projects onto its own purpose-made combiner glass rather than the windscreen.

4. Where HUDs go on a commercial vehicle

The same projection module turns up across the commercial-vehicle range, but the value it adds depends on the duty cycle rather than the seat hours alone:

• Long-haul heavy truck. The benefit is strongest on the monotonous highway stretches where fatigue builds and lane-keeping degrades, with lane-departure cues surfacing without an eye-down glance. On predictable constant-cruise running the gain is smaller, because the cluster already sits close to the driver's primary line of sight — the HUD earns its place here on the fatigue-and-warning dimension more than on the speed read-out alone.
• Bus and coach. Driver-facing speed and navigation in dense urban routes with frequent speed-limit changes, where the driver is also managing doors, passengers and stops.
• Construction and off-road cabs. Excavator, loader and crane cabs with a primary windscreen can carry a HUD for operating prompts, though the sealing and vibration environment shapes the enclosure more than the optics.
• Aftermarket and light-duty fitments. A combiner HUD with a wide-range supply input covers 12 V installations as well as 24 V cabs, which is why the entry-level C-HUD line spans a broader programme range than a windshield unit.

What ties these placements together is that the HUD is one display among several in a modern cab. It works alongside the instrument cluster and any centre display, drawing the same vehicle data those screens use. Deciding what belongs on the HUD — the short list a driver needs without looking down — versus what stays on the cluster is part of scoping the programme, not something to leave to the supplier.

5. How to specify a commercial vehicle HUD

A HUD requirement a supplier can quote against, rather than guess at, covers the optical target, the content interface and the cab environment. None of it is exotic; leaving any of it open shows up at sample stage as a mismatch between what was built and what the cab needed.

The message interface is the line buyers leave until last and regret. A HUD that renders cleanly but subscribes to the wrong identifiers, or expects a signal the cab does not publish, fails at integration rather than on the bench. Agree the content list and the bus matrix with whoever owns the network early, and the rest of the specification follows from the architecture choice.

Two configuration points are worth fixing because the driver lives with them. The content layout — what sits where in the projected image, and how a navigation arrow or a warning is rendered — should be agreed against the customer's preference rather than inherited from a default. And the dimming behaviour, where the HUD follows ambient light smoothly between day and night levels, is the difference between a display that feels engineered for the cab and one that is either washed out by day or glaring at night.

6. What to look for in a HUD supplier

A HUD is an optical instrument, an electrical node on a safety-adjacent bus, and a part the driver looks at for an entire shift. The supplier questions that matter are about optical capability, protocol depth and durability, not headline price.

• Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on programme handoff. Treat any "automotive grade" claim without a certificate number as marketing.
• Optical capability. A supplier that builds both windshield and combiner HUDs can give an honest recommendation between them rather than selling the one product it makes. Ask about the mirror design, how image distortion and ghosting are corrected, and how the unit holds brightness uniformity across the field of view.
• EMC capability. A HUD sits in a cab full of switching loads and connects to the vehicle bus, so it is both an EMC source and victim. Confirm in-house EMC pre-compliance rather than outsourced-only testing. Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment.
• Protocol depth. CAN, CAN-FD and J1939 should be routine, and the supplier should discuss the HUD's message subscriptions and node addressing without hesitation. A vague answer here usually means integration problems later.
• Thermal and daylight readability. Ask how the unit stays readable against direct sun and how the imager's thermal load is handled over a long full-brightness run. A HUD that washes out at midday has failed at the one moment a driver needs it.
• Region-specific approvals. e-Mark / ECE for Europe, SASO for the GCC, FCC / DOT for North America are available upon project requirement, not blanket-claimed across the catalogue. An honest supplier separates certifications it holds in hand from those it runs on a project basis.
• Customisation and continuity. Image size, projection distance, content layout and the message matrix are the normal variables on a HUD programme. Ask how the supplier handles imager and component obsolescence over a long service life, and whether content changes can be made in firmware without new optics tooling.

Questions you will be asked at RFQ stage

• MOQ and samples. A configurable variant of an existing HUD platform reaches samples faster than a fully custom optical design. Sample quantities are agreed per programme.
• Lead time. Driven mostly by the optical tuning (windscreen rake on a W-HUD), the content layout and the message-matrix decisions, not by the electronics alone.
• PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on programme handoff.
• Customisation scope. Image size, projection distance, working voltage, content set and bus matrix on an existing PBX platform are routine, not an exception.

7. Suggested next step

If you are scoping a HUD for a new cab or an upfit programme, the most useful things to bring to a first conversation are the cab geometry (driver eye position and windscreen rake), the content list you want on the HUD, and the bus your cab uses. That lets us point you at a combiner or windshield platform and tell you honestly where a custom optical tuning is needed. For the wider display side of the cab — how the HUD, the instrument cluster and the CAN displays fit together — the Displays and HUD technical guide covers the full picture, and the quality system and manufacturing footprint behind the PBX catalogue are documented on our OEM manufacturer profile.

For drawings, a HUD architecture review or a sample request against your cab geometry, please use the contact page or message +86 134 6767 4786 on WhatsApp. Typical reply within 24 hours during China business hours (UTC+8).
