Commercial Vehicle Instrument Cluster: How a Truck Dashboard Reads the Vehicle

Updated June 2026

On an older truck the instrument cluster was a self-contained box of mechanical gauges: a speedometer cable, a fuel sender wire, a handful of warning lamps hard-wired to their switches. Nothing about it was programmable, and nothing about it talked to the rest of the vehicle. That cluster is gone. On a modern commercial vehicle the cluster reads almost nothing directly — it is a display node on the CAN bus that decodes messages from the engine ECU, the body control module, the battery management system and the powertrain controller, then turns them into pointers, telltales and a TFT canvas the driver can read at a glance.

This guide is the version of the cluster conversation we have with OEM engineering buyers during project scoping, written down. It assumes you know what a CAN bus is and that you are specifying a cluster for a truck, bus or machine rather than a passenger car.

1. What an instrument cluster actually does now

A commercial-vehicle instrument cluster has two jobs that pull in different directions. The first is regulatory: it has to present the legally required visual feedback — road speed, the brake and hazard telltales, the high-beam and turn indicators, and the warnings that must reach the driver no matter what else is happening on the dashboard. The second is informational: trip data, fuel or state-of-charge, drive mode, ambient conditions, and on a work vehicle the body-equipment state. The regulated functions cannot fail quietly. The informational layer can be as rich as the program wants.

That split is the single most useful thing to understand about a cluster, because it explains every architectural choice that follows. On a commercial EV the cluster is responsible for:

• Regulated visual feedback. Speed, parking-brake, brake-system warning, hazard, turn signals, high beam — the telltales a vehicle is legally required to show, with defined colours and priority.
• Powertrain and energy state. Engine RPM and temperature on a diesel platform; on an electric or hybrid platform the traction-battery state-of-charge, the READY / STOP state, charging status and high-voltage indicators driven from the BMS and VCU.
• Trip and driver information. Odometer, trip meters, instantaneous and average consumption, range, and the configurable readouts a fleet wants.
• Fault and diagnostic display. Decoding diagnostic messages and presenting the right telltale at the right priority, rather than burying a critical warning under a service reminder.
• Body-equipment visualisation. On service vehicles, the dump-bed angle, PTO state, hydraulic pressure or mixer-drum rotation, usually shared with a secondary CAN display.
• Camera and assist views. Reverse and night-vision camera feeds and ADAS notices, where the cluster carries an AV input rather than a separate monitor.

The point most buyers underestimate is that almost none of this lives in the cluster as data. It arrives as CAN traffic. The cluster's value is in decoding the right messages, prioritising the right telltales, and staying readable in conditions that would defeat a consumer display. For how the cluster fits among the secondary displays, the HUD and the CMS mirrors, the displays and HUD guide covers the full driver-facing stack.

2. Digital, combined and secondary — three cluster formats

"Instrument cluster" covers three formats on a commercial vehicle, and choosing between them is the first real decision in a cluster specification. They differ in how much of the dashboard is glass and how much is hardware.

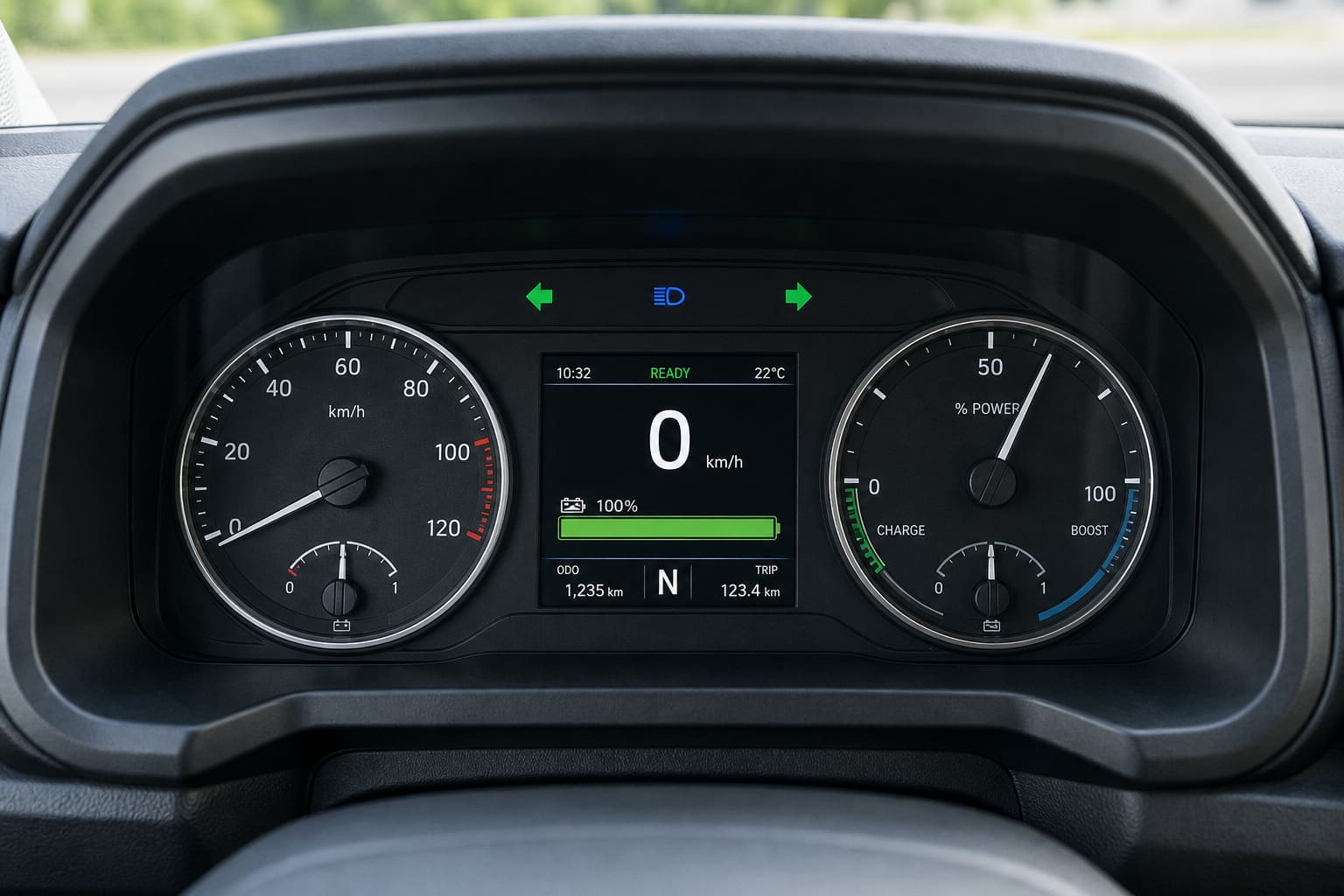

The combined format is worth dwelling on, because it is where commercial-vehicle practice diverges from passenger cars. A pure-digital cluster is elegant until the moment the main MCU rendering pipeline hesitates — a cold-start panel still warming, a software fault, a brown-out during cranking. A combined cluster keeps the speedometer needle and the critical indicator LEDs on a path that does not depend on that pipeline, so the regulated feedback stays in front of the driver. That is why the PBX-2301 keeps its 8-inch 1080×720 IPS panel centred between two analogue dials with fifteen software-controlled LEDs rather than rendering everything on glass. From a sourcing perspective, deciding digital versus combined early is what lets a supplier quote the right platform instead of guessing.

3. What the cluster reads off the bus

The cluster sits at the bottom of an information chain. Every value it shows originates somewhere else on the vehicle and reaches the cluster as a CAN message, increasingly CAN-FD where the payloads are larger and the telemetry richer. Understanding that chain is what turns a vague "we need a screen" into a specification a supplier can build.

The signals a commercial-vehicle cluster typically decodes break down as follows:

• Speed and powertrain. Road speed, engine RPM and coolant temperature on a diesel platform, or motor speed and inverter state on an electric one, sourced from the engine or motor controller.
• Energy. Fuel level on a conventional truck; on an EV the traction-battery state-of-charge, available power and charging status published by the BMS and the vehicle control unit.
• Telltales. Turn signals, high beam, parking brake, ABS and the body warnings, most of which originate in the BCM and arrive across the gateway.
• EV-specific indicators. READY, STOP, high-voltage power-up, insulation-resistance, charging and severe-fault markers driven directly from the BMS and VCU messages — the PBX-2301 carries nine dedicated new-energy indicators for exactly this.
• Video. On clusters with AV inputs, the reverse and night-vision camera feeds, switched by vehicle state.

One detail often overlooked is the gateway boundary. The cluster does not sit on the same bus as every controller it displays. Body telltales generated by the BCM usually reach the cluster across a gateway that bridges the body and powertrain buses, which means the indicator-to-message mapping has to be agreed across that boundary, not assumed. This is why CAN-FD matters on a current cluster: with up to 64 bytes per frame against classic CAN's 8, it carries the richer telemetry — cell-level battery data, multi-channel diagnostics — without the frame-fragmentation overhead that classic CAN would impose.

4. The envelope that separates a truck cluster from a screen

A cluster that works on a bench in a temperate office is a long way from a cluster that survives a commercial-vehicle duty cycle. The environmental envelope is where a real truck cluster earns its specification, and it is the part of a requirement that buyers most often leave too loose.

Three conditions do most of the damage to a display in service:

• Cold start. An LCD panel without active heating can fail to start below roughly −25 °C — the liquid-crystal viscosity rises, the panel ghosts, and the start-up sequence can stall. A plateau or cold-climate program needs a cluster with low-temperature self-heating. The PBX-2301 carries a built-in heater behind the panel that runs at a higher power envelope on cold-start, then drops back once the display reaches normal state, so the driver sees a normally-rendered cluster from the first instant of power-up rather than waiting through a cold screen.
• Altitude. Mainstream truck clusters are rated to roughly 4000 m. Plateau and high-altitude mining routes operate above 4500 m, where reduced air pressure changes thermal behaviour and sealing margins. A plateau-grade cluster such as the PBX-2301 is rated to 5000 m altitude for exactly these programs.
• Sunlight and glare. A cluster the driver cannot read in direct sun is a safety problem, not a cosmetic one. Anti-glare instrument-face and screen-panel treatment, plus a brightness target matched to the cab, is what keeps the regulated feedback legible. The combined-cluster approach helps here too, because analogue dials with their own face treatment stay readable independent of panel backlight behaviour.

Around those, the qualification envelope on a commercial cluster runs to salt-spray endurance (the PBX-2301 specifies ≥ 100 hours, matching winter de-icing-salt exposure), damp-heat ≥ 240 hours, and a full vibration, shock and EMC profile. A cluster commanding nothing but displaying everything is still an EMC victim in a cab full of switching loads, so EMC immunity is part of the brief, not an afterthought. The supply side matters as well: a 9–32 VDC input drops cleanly into both 12 V and 24 V wiring without an external converter, which is why both the PBX-2202 and the PBX-2301 specify that range.

5. How to write an instrument cluster specification

A cluster requirement a supplier can quote against, rather than guess at, covers five things. Skipping any one of them is what turns a quotation into a round of clarification emails.

1. Display format and size. Digital TFT, or combined TFT plus analogue dials; the diagonal (4.6 inch through 12 inch are common); and for a combined cluster, the dial configuration — what each needle reads, its range and its face artwork.
2. Resolution and brightness. Panel resolution (960×320 on a compact digital cluster, 1080×720 on an 8-inch combined unit) and the daylight-readability target, with anti-glare treatment called out explicitly.
3. CAN matrix and indicator mapping. The CAN / CAN-FD channels and baud rates, and which telltales and EV indicators map to which messages. On a software-controlled indicator set like the PBX-2301's fifteen LEDs, this mapping is configurable per program, so it has to be specified rather than assumed.
4. Environmental envelope. Working and storage temperature, altitude rating, IP grade, and the salt-spray, damp-heat and vibration exposure the route demands. State whether low-temperature self-heating is required.
5. Mechanical and video interface. The dash cut-out and mounting interface, the main connector, and any AV camera inputs (reverse, night-vision) with their supply and wake-up behaviour.

From a sourcing perspective, the indicator-mapping line is the one buyers leave implicit and regret. A cluster with software-controlled LEDs can match almost any program, but only if the OEM supplies the message-to-indicator map. Provide it early, ideally with the CAN matrix, and the cluster moves to sample as a configuration of an existing platform rather than a custom development.

6. What to look for in a cluster supplier

An instrument cluster carries the regulated visual feedback of the vehicle and stays in the program for years, so the supplier questions that matter are about capability and support, not headline price.

• Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on program handoff. Treat any verbal "automotive grade" claim without a certificate number as marketing.
• EMC and environmental capability. A cluster lives in a cab full of switching loads and is an EMC victim. Confirm in-house EMC pre-compliance and environmental testing — cold-chamber start-up, salt-spray, damp-heat, vibration — rather than outsourced-only validation. Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment.
• Display and harsh-environment experience. Low-temperature self-heating, altitude rating and sunlight-readable brightness are not generic display work. A supplier that has shipped plateau and cold-climate clusters should be able to discuss them concretely, with parameters.
• Configurable platform depth. The most useful suppliers offer a cluster family you configure — dial graphics, indicator mapping, CAN matrix, connector, AV inputs — rather than a single fixed part. Ask what is configurable on an existing platform before any custom tooling.
• Region-specific approvals. e-Mark / ECE for Europe, SASO for the GCC, FCC / DOT for North America are available upon project requirement, not blanket-claimed across the catalogue. An honest supplier separates certifications it holds in hand from those it runs on a project basis.

Questions you will be asked at RFQ stage

• MOQ and samples. A configurable platform variant can usually move to samples quickly; a fully custom dial and UI design follows the artwork and calibration timeline. Sample quantities are agreed per program.
• Lead time. Driven mostly by how much is configuration versus custom development, and by connector and bezel tooling where the dash cut-out is bespoke.
• PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on program handoff.
• Customisation scope. Variants on an existing PBX cluster platform — dial graphics, indicator mapping, CAN-FD matrix, connector, AV inputs, environmental envelope — are routine, not an exception.

7. Suggested next step

If you are scoping an instrument cluster for a commercial-vehicle program, the most useful things to bring to a first conversation are the display format and size, the CAN matrix with your telltale and EV-indicator mapping, and the environmental envelope from section 4 — especially the temperature and altitude the route demands. That lets us map your requirement onto an existing PBX cluster platform such as the PBX-2202 or the plateau-grade PBX-2301, or tell you honestly where a custom variant is needed. For how the cluster sits among the secondary displays, the HUD and the CMS mirrors, the displays and HUD technical guide covers the full stack.

For drawings, a dial-and-indicator mapping review or a sample request against your cab program, please use the contact page or message +86 134 6767 4786 on WhatsApp. Typical reply within 24 hours during China business hours (UTC+8).
