The cab is where commercial vehicles look most different from passenger cars. The road has the same rules; the dashboard does not.
A modern heavy-truck cab now carries a wide digital instrument cluster behind the wheel, a secondary CAN information display in the centre console, two A-pillar monitors that replace the conventional Class II / Class IV mirrors on programs that adopt CMS, surround-view cameras around the cab perimeter on the higher-trim variants, and a windshield-projected HUD image floating about two metres ahead of the driver on the long-haul tractor and the coach programs that specify it. A coach cab adds the destination sign, the passenger announcement display and the wheelchair-bay monitor. A construction-machinery cab swaps the HUD for a hardened operator-station display rated for high humidity and constant vibration. Almost none of it can be designed the way it was a decade ago, because the dashboard real-estate budget, the harness count and the regulator's expectations on indirect vision and blind-spot have all moved at once.
This guide is written for OEM purchasing and engineering teams scoping that layer on heavy trucks, buses, construction machinery and new-energy commercial vehicles. It covers what each display and HUD category does, how the driver-facing display partitions across digital cluster / combined cluster / secondary CAN display, how mirror replacement and surround-view fit the UN-R46 and UN-R151 framework, how W-HUD and C-HUD differ on a commercial-vehicle cab, and where the Youlai PBX catalogue fits across the five product families. For the product catalogue itself, see the Displays & HUD category page; for the receiving side — the BCM and gateway that consume these signals — see the Smart Control Modules technical guide; for the input layer that feeds the same cluster, see the Switches & Sensors technical guide.

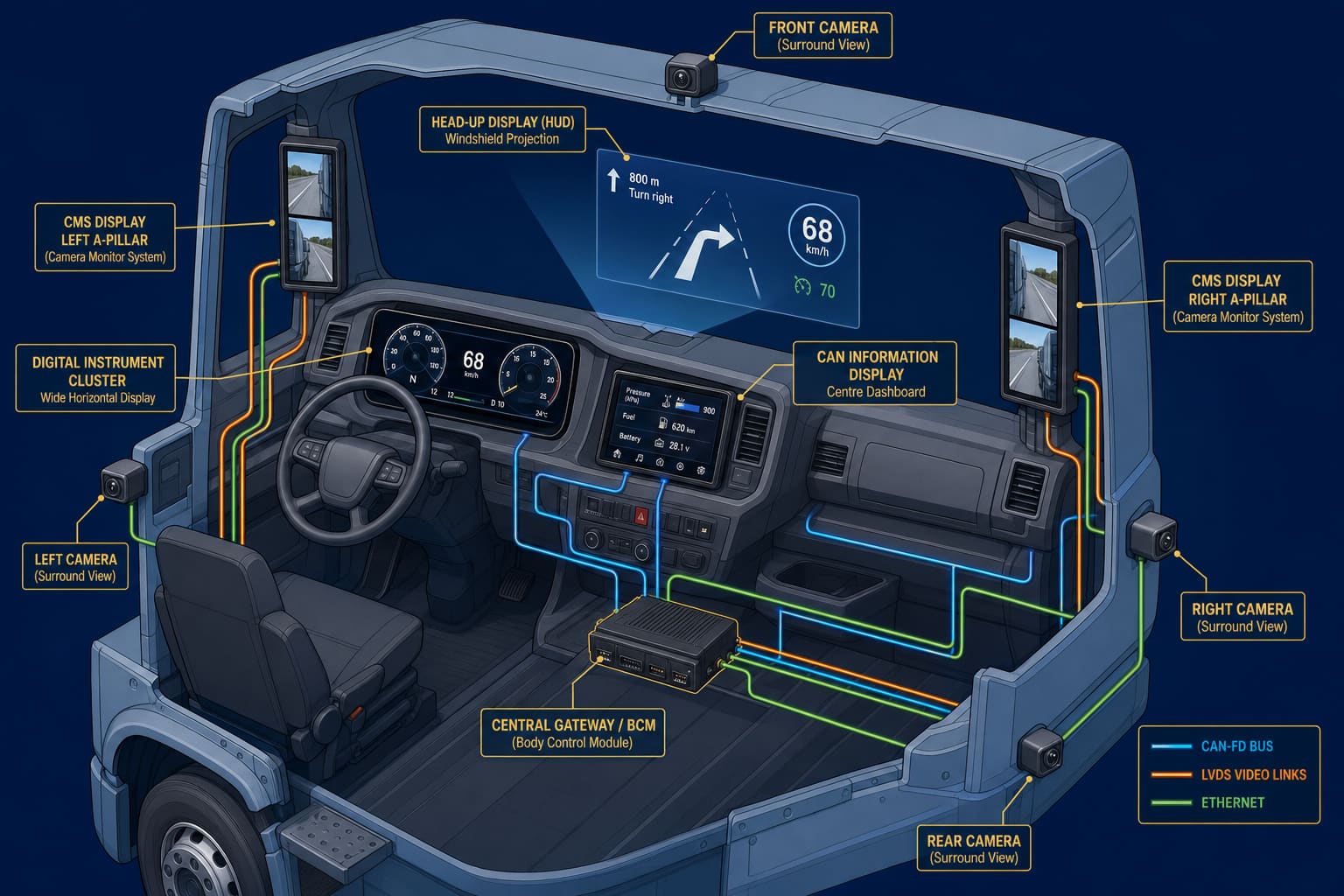

1. What the displays and HUD stack actually covers
The cabin display, mirror replacement and HUD layer carries four overlapping functions on a modern commercial-vehicle program, each with its own electrical philosophy and its own regulatory pressure. Naming varies by program but the partition is fairly stable:
- Driver-facing displays. The instrument cluster sitting directly behind the steering wheel, plus any secondary CAN information display in the centre console or operator station. The cluster carries the regulated visual feedback (speed, brake, hazard, fuel, temperature, ADAS warnings) and the program-styled trip computer. A pure-digital cluster like PBX-2202 (4.6-inch smart cluster) runs the visual feedback as a single TFT canvas driven over CAN; a combined cluster like PBX-2301 (8-inch plateau / new-energy combined cluster) keeps the TFT canvas centred between analogue dials and indicator LEDs so the regulated functions stay reachable independent of the main MCU rendering pipeline. The dash-mounted CAN information display PBX-2201 sits in the secondary position when a cluster-style format is not the right answer.
- Mirror replacement. The CMS (camera-monitor system) electronic mirror pair that replaces the conventional Class II main rear-view mirror and Class IV wide-angle mirror with two side-mounted cameras and one or two A-pillar monitors. PBX-955 is the working CMS platform — sized for M-category and N-category vehicles under the UN-R46 indirect-vision framework, with three-camera baseline and extended-coverage geometries available subject to project specification, and homologation against UN-R46 and UN-R151 available upon project requirement. The aerodynamic gain over a conventional mirror head is the long-haul tractor argument; the operational benefit on city buses and coaches is the wider low-speed field-of-view and the high-beam glare suppression in the monitor pipeline.
- Surround-view. The PBX-2050 platform, configurable for 270-degree baseline and 360-degree all-round applications subject to camera count, mounting geometry and project specification. Sits alongside CMS rather than replacing it — CMS handles the indirect-vision regulatory case during normal driving, surround-view handles the close-perimeter blind-spot case during low-speed manoeuvring at the depot, the construction site and the bus terminal forecourt.
- Head-up displays. Windshield-projected (W-HUD, PBX-961, 15-inch image at 2.4-metre projection distance, lane-departure ADAS) and combiner-projected (C-HUD, PBX-2203, 8 to 12-inch image at 1.5 to 2-metre projection distance) variants that put speed, navigation prompts and ADAS warnings in the driver's primary line of sight. W-HUD on the higher-trim long-haul tractor and the coach; C-HUD on the retrofit and the lower-volume program where re-tooling the windshield is not on the table. Both products specify daylight luminance margins for direct cab-side glare scenarios.
In practice the four functions interact rather than stack independently. A digital cluster that already carries lane-departure visuals drains some of the HUD's eyes-on-road value; a CMS pair that already gives a wide low-speed field-of-view shifts the surround-view scope from blind-spot management to close-perimeter parking only. The decision is not "which of the four does the program need" but "what does the driver glance at, in what order, on this duty cycle" — the catalogue answers come after that conversation, not before.
2. Driver-facing displays in the cabin E/E architecture
Driver-facing displays were the first part of the cabin to migrate from analog to digital, and the migration is now nearly complete on the higher-trim heavy-truck and coach programs. The reasons are partly visual (the regulator allowed it once readability could be proven against direct sun, and the OEM marketing teams asked for it once smartphones reset what a dashboard was supposed to look like) and partly architectural (CAN-FD on the powertrain segment can carry signal counts that the older 500 kbit/s body bus could not, which makes the cluster-as-canvas idea practical at the bandwidth the OEM domain controller actually has).
The working partition on a commercial-vehicle program looks like this:
- Digital instrument cluster. A single TFT canvas, typically 4.7 to 12.5 inches diagonal, IPS panel with optical bonding, sun-readable brightness above 700 nits standard and above 1500 nits on the daylight-margin variants. PBX-2202 is the working entry point — a 4.6-inch IPS at 960×320 driven over CAN, with Bluetooth phone-link for navigation mirroring. The cluster reaches the BCM and gateway over CAN-FD on flagship platforms and CAN 2.0 (typically 500 kbit/s body) on the volume-trim variants. Working temperature, IP rating and IATF 16949 manufacturing path are inherited from the broader Youlai catalogue (see the IATF 16949 quality programme).
- Combined cluster. PBX-2301 is the working combined-cluster model — an 8-inch IPS TFT centred between a pair of analogue dials, with nine EV-specific indicator LEDs and built-in low-temperature self-heating for plateau and cold-climate duty (rated to −45 °C ambient and above 5000-metre altitude). The combined-cluster pattern keeps a small number of indicator LEDs and stepper-driven gauges next to the TFT panel; if the rendering pipeline drops a frame or stalls during a software update, the regulated indicators continue to track the body-bus signal directly. On a heavy-truck cab specified to a strict ASIL allocation on the visual feedback path, this is often the right answer rather than a pure-digital cluster — ASIL-rated component qualification and the documentation that goes with it are available upon project requirement.
- Secondary CAN information display. PBX-2201 sits in the centre console or the operator station as a dash-mounted display-only device, decoding CAN messages from the BCM and gateway and presenting a configurable readout. Used heavily on service-vehicle programs where the instrument cluster owns the regulated visuals and the secondary screen owns the body-controls visualisation (PTO state, dump-bed angle, hydraulic pressure, mixer drum rotation). Larger formats and touch variants are quoted per program.
- Cluster signal sourcing. The cluster does not generate signals; it consumes them. Speed comes from the wheel-speed sensors via the ABS / ESC controller, RPM comes from the engine ECU, brake state and ABS warnings come from the brake controller, fuel level and cab temperature come from the BCM after the analog-to-CAN translation, TPMS per-wheel pressure comes from the EBX-957 receiver on chassis CAN, and ADAS lane-departure / over-speed visuals come from the ADAS controller via the gateway. Mis-mapping any one of these is the most common end-of-line acceptance failure on a new cluster integration. The CAN signal map is owned by the OEM body engineering side, not by the cluster supplier; the supplier's job is to render whatever the body engineering team specifies, with the styling, the warning thresholds and the failure-mode visuals tuned during program development.
- Update and OTA strategy. Modern digital clusters carry a graphics layer configured per program during development and a styling layer that is updated through the OEM's diagnostic or telematics path during the vehicle life. PBX-2202 and PBX-2301 both support OEM-specified update flows; the actual procedure (USB at the dealer, cellular OTA via the telematics box, or DoIP through a service tool) is defined by the OEM service strategy rather than the cluster supplier. Useful detail: a cluster that takes 90 seconds to boot then renders a placeholder before drawing the live values is one that the driver experiences as "the dash is broken at start-up". The boot-to-glanceable interval is a project-level parameter worth nailing down at the RFQ stage.
A digital cluster decision locks in several downstream choices. The BCM increasingly comes CAN-FD-capable on at least one channel to leave bandwidth for the cluster and the gateway, the diagnostic tool has to read cluster state through UDS rather than back-probing a wire, and the OEM design and validation team carries a graphics review cycle that did not exist on an analog dashboard. The marketing benefit ("the cab looks 10 years younger") is real, but it is not free.
3. CMS electronic mirrors and surround-view — the UN-R46 / R151 frame
Mirror replacement and close-perimeter blind-spot management are the part of the displays stack where the regulator has moved most aggressively in the last five years. The European UN-R151 blind-spot regulation took effect in May 2022 with a phased extension to M3 and N3 vehicle classes; UN-R46 (indirect vision) defines the field-of-view any mirror or mirror-replacement system has to cover on M-category and N-category vehicles. The supplier-side market response is an electronic mirror category (CMS) that satisfies the indirect-vision case during normal driving, plus a surround-view category that handles the close-perimeter case during low-speed manoeuvring. They are not interchangeable.
How the two products partition on a commercial-vehicle program:

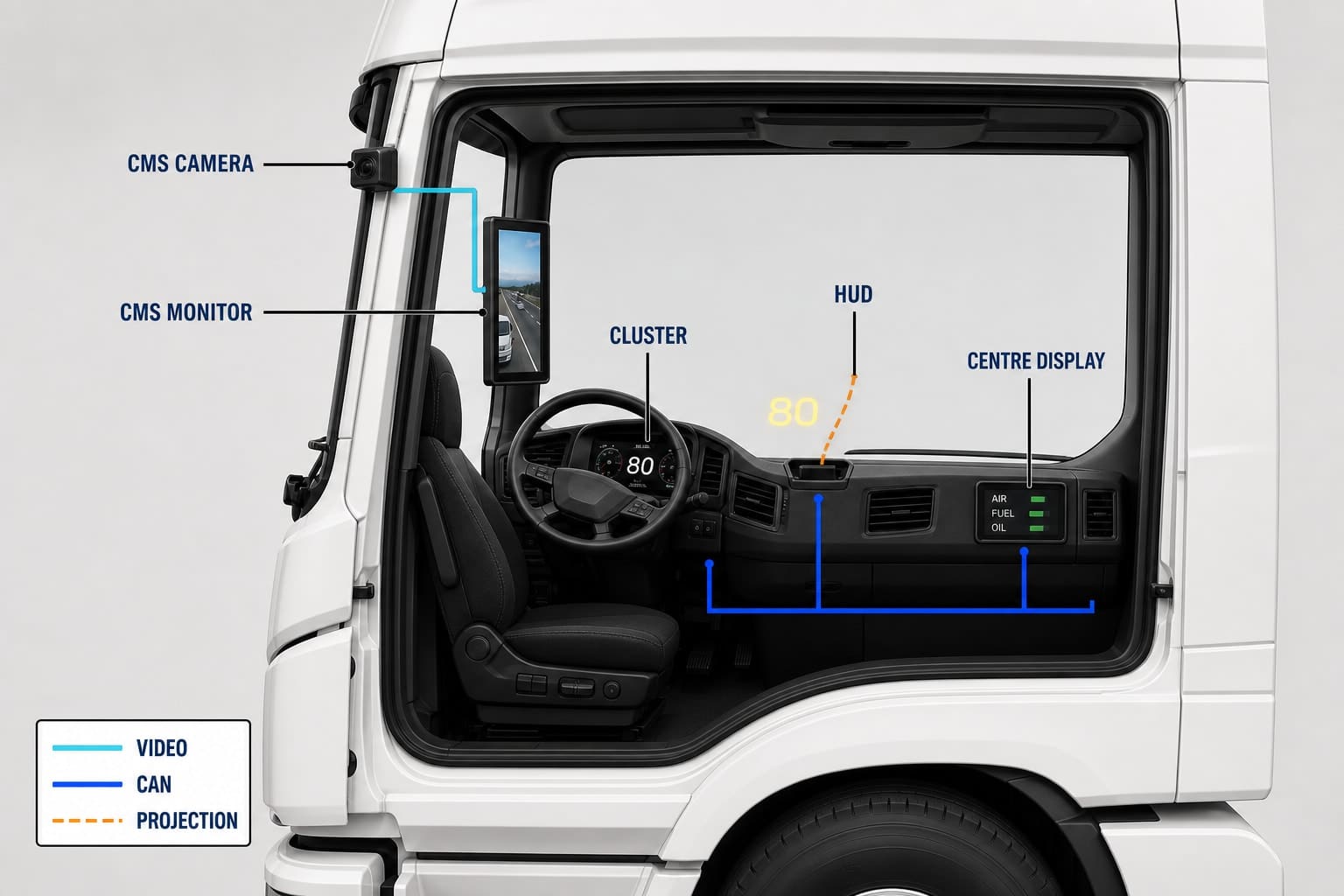

- CMS electronic mirrors (PBX-955 platform). A side-mounted camera pair plus one or two cabin monitors that replace the conventional Class II main rear-view mirror and Class IV wide-angle mirror. The PBX-955 platform is sized for M-category and N-category vehicles under the UN-R46 indirect-vision framework, with three-camera baseline geometry and extended-coverage configurations available subject to project specification. Camera resolution, lens field-of-view, IP sealing on the exterior modules and the cabin-monitor interface are confirmed against the OEM body engineering brief during program development. Homologation against UN-R46 and UN-R151 is available upon project requirement; the qualification path runs through field-of-view geometry validation, monitor luminance against direct cab-side glare, and high-beam glare suppression in the monitor pipeline. The aerodynamic gain over a conventional mirror head is the long-haul tractor argument — the side-mirror drag penalty on a tractor cab is commonly cited at low single-digit percent of total drag, which is one reason CMS has become a recurring topic in European long-haul OEM programs; the operational benefit on a city bus and a coach is the wider low-speed field-of-view and the high-beam glare suppression in the monitor pipeline.
- Surround-view (PBX-2050 platform). A four to six-camera setup feeding a stitched bird's-eye-view image to the cabin display. The PBX-2050 platform is configurable for both 270° baseline and 360° all-round view applications, subject to camera count, mounting geometry and project specification — the right configuration depends on whether the program needs forward-blind-spot coverage, low-speed parking visualisation in a depot, articulated-bus rear-section coverage, or a combination of the three. Surround-view runs alongside CMS rather than replacing it; the two products solve different cases (CMS is the indirect-vision regulatory product, surround-view is the close-perimeter operational product).
- Failure mode and fail-safe. A CMS pair is a regulated product on UN-R46 / UN-R151 programs, which means the failure mode (camera dark, monitor blank, lens contaminated) has to be handled in a way the regulator accepts. Typical degraded-mode strategies on the supplier side include redundant camera or signal paths, heated lens elements for snow-belt operation, and documented fall-back rendering schemes — specific implementation is project-dependent and confirmed against the OEM safety case during program development. On a coach or a long-haul tractor specified to UN-R151, the failure mode strategy is the part of the supplier conversation that takes the longest, not the camera resolution.
- Mounting position and harness routing. CMS cameras live on the wing-mirror replacement housing, in a position that takes wash-water spray, road salt, stone-chip and the worst thermal cycle on the cab. Surround-view cameras live at the cab perimeter (front, sides, rear) and increasingly behind a heated transparent cover for snow-belt operation. The harness from the camera to the cabin monitor or the surround-view ECU runs at a video signal level (LVDS or analog NTSC depending on the program era) plus the CAN control link; the routing through the door pillar and the cab-rear bulkhead is one of the most rework-heavy parts of a CMS or surround-view integration on a redesigned cab.
- Companion driver-monitoring hardware. Programs that adopt CMS and surround-view increasingly add a steering-wheel hands-on-detection (HOD) sensor for ADAS L2+ takeover requirements; the HOD sensor lives on the steering wheel and pairs with the ADAS controller rather than the CMS controller, but the supplier conversation usually crosses the two because the OEM cab-interior team owns both. Driver-monitoring camera (DMS) and CMS share the cabin-display real-estate budget on programs that adopt both.
Monitor luminance against direct sunlight at the worst cab orientation is the detail that catches the most CMS programs at acceptance drive. A pair specified at 700 nits looks fine on the bench and falls apart at noon on an east-west motorway in mid-summer, when the side-window sun reaches the monitor at a glancing angle. Worth asking at the RFQ stage — the daylight-margin variants spec above 1500 nits for exactly this reason.
4. How head-up displays work in the cab
Head-up displays project speed, navigation prompts and ADAS warnings into the driver's primary line of sight, with the goal of cutting the secondary-glance count to the cluster on the duty cycles where it matters. On a commercial-vehicle program the matters part is the part the buying side often gets wrong — a long-haul tractor cruising at constant speed gets relatively little out of a HUD, while a coach navigating a dense city centre or a heavy-construction machine switching between road and operator station every few seconds gets meaningfully more.
The two HUD families on the catalogue cover different program assumptions:
- W-HUD — windshield head-up display (PBX-961). A dashboard-mounted projection unit that bounces the image through aspheric reflectors onto a wedge-shaped layer in the windshield. The driver sees a virtual image of speed, lane-departure warning, navigation arrow or ADAS notice floating roughly two metres ahead of the glass. PBX-961 specifies a 15-inch image at 2.4-metre projection distance with lane-departure ADAS on the rendering layer. Program-level requirements: a windshield with the wedge layer specified at glass build (retrofit glass without the wedge produces a doubled image), plus enough upper-dashboard volume for the projection unit and reflector path.
- C-HUD — combiner head-up display (PBX-2203). A separate combiner panel (deployable from the dashboard or fixed in front of the cluster) that receives the projection from a unit mounted underneath. PBX-2203 specifies an 8 to 12-inch image at 1.5 to 2-metre projection distance, sized for entry-level HUD adoption. No windshield wedge layer needed — the right answer on retrofit programs and lower-volume runs where windshield re-tooling is not on the table. Trade-off: a smaller image volume and a visible combiner element in the driver's line of sight.
- Commercial-vehicle HUD vs passenger-car HUD. The geometry differences matter more than the optical principle. A commercial-vehicle cab puts the driver's eye 0.5 to 1 metre higher than a passenger car, which changes the projection geometry and the off-axis vehicle-pitch tolerance the HUD has to absorb. The cab also takes harder vibration than a passenger car, which means the projection unit has to ride out the cab-frame resonance without wandering the virtual image; the aspheric optical path is sized accordingly. Sun-readability against direct cab-side glare is the criterion that drops most candidate HUDs out of the heavy-truck pool; the daylight luminance margin is what the OEM acceptance drive looks at, not the catalogue brightness number.
- ADAS visual integration. A HUD that renders only speed and navigation is doing half the job. The ADAS visual layer (lane-departure, forward-collision, blind-spot, over-speed, navigation arrow, turn-by-turn instruction) is what justifies the HUD on a long-haul tractor or a coach. PBX-961 carries the lane-departure ADAS visuals on the rendering pipeline directly; the upstream signals (lane-camera output, distance-from-lane, time-to-collision) come from the ADAS controller via the gateway, the same way the cluster receives them. The HUD does not run the ADAS algorithm; it renders the algorithm output.
- ASIL allocation on the visual feedback path. ADAS notices that operate as a primary safety message (forward-collision warning, lane-departure warning) typically carry an ASIL allocation that the regulator and the OEM safety case both look at. Where the HUD shares responsibility with the cluster on the same warning, the ASIL allocation is split between the two display devices and the gateway that feeds them; ASIL-rated component qualification is available upon project requirement. The supplier conversation on a HUD specified to share an ASIL-B path with the cluster is structurally different from the conversation on a HUD specified as a comfort feature only.
Windshield specification is the detail that most often blocks a W-HUD program at acceptance build. A W-HUD that ships against a windshield without the wedge layer produces a doubled virtual image; a glass supplier that has not been briefed on the HUD spec will quote a standard windshield and the program discovers the mismatch on the first cab build. Best to discuss the windshield specification, the upper-dashboard volume budget and the HUD optical path geometry together at the RFQ stage rather than across separate RFQs to glass and electronics suppliers. In-house EMC and environmental testing covers the qualification side; CISPR 25 and ISO 11452 results on the projection unit, the optical path and the LVDS link are part of the qualification record.
5. Where the Youlai PBX catalogue fits

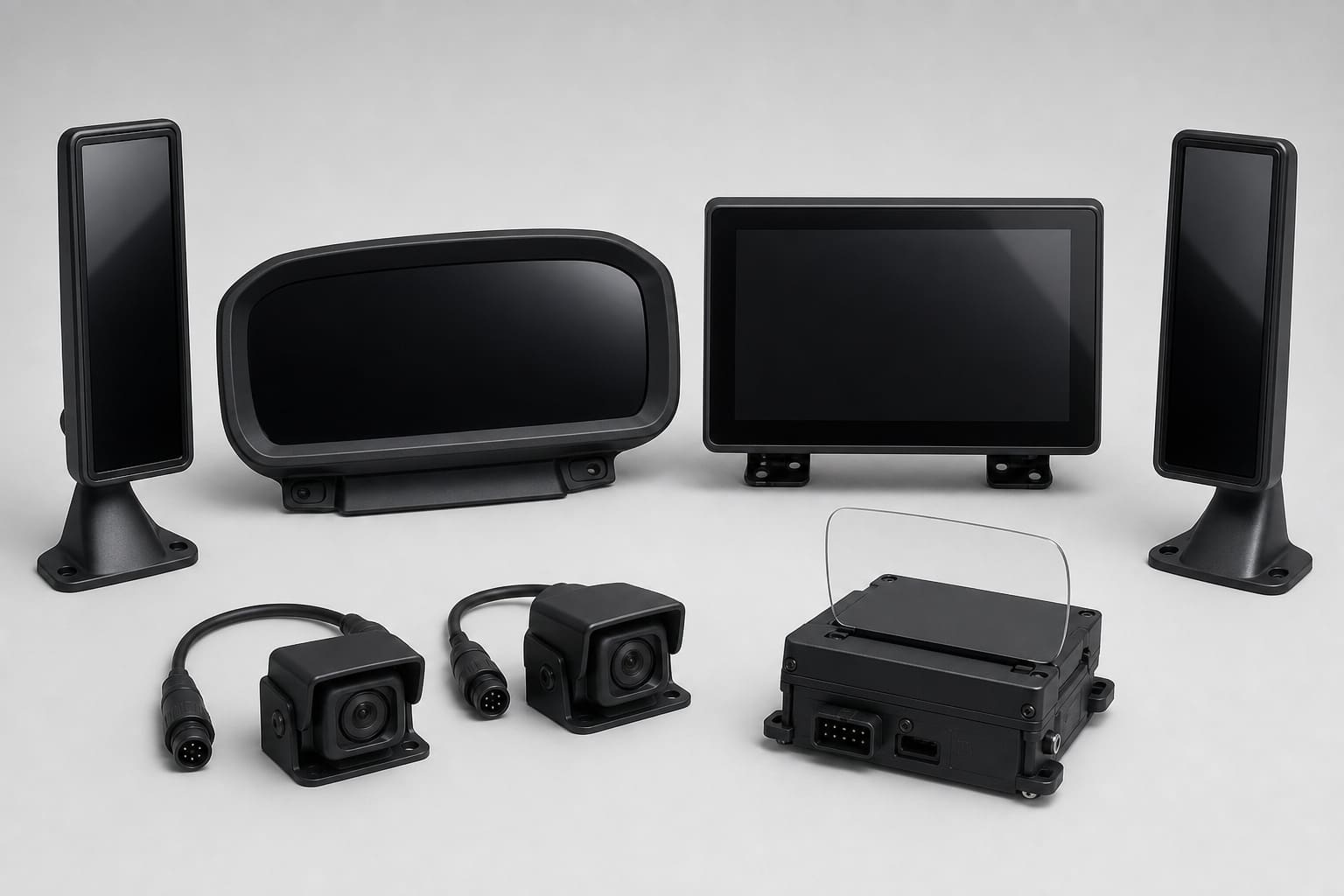

The Youlai displays and HUD catalogue is built around the PBX series, with five product families that address a slice of the cabin display, mirror replacement and HUD layer. The naming convention reflects the function rather than the panel size: a cluster part addresses the regulated visual feedback in front of the driver, a CAN display part addresses the secondary readout in the centre console or operator station, a CMS part addresses mirror replacement under the UN-R46 framework, the surround-view platform addresses the close-perimeter blind-spot case, and the HUD parts address the windshield-projected and combiner-projected variants.
| Family | Role | Representative models | Display | Bus / I/F | IP / Env. |
|---|---|---|---|---|---|
| ClusterDigital + combined | Driver-facing instrument cluster carrying regulated visual feedback, ADAS notices and trip computer; combined variant retains analogue dials and indicator LEDs alongside the TFT panel | PBX-2202 (4.6″ digital smart cluster, IPS 960×320, Bluetooth phone-link), PBX-2301 (8″ plateau / new-energy combined cluster, TFT centred between analogue dials, −45 °C self-heating, ≥5000 m altitude, 9 EV indicator LEDs) | 4.6–8″ TFT, IPS, optical bonding | CAN 2.0 / CAN-FD | IP54+, −40 to +85 °C |
| CAN displaySecondary information | Dash-mounted display-only device for centre-console and operator-station readouts; configurable per-program rendering of body-controls and ADAS visuals | PBX-2201 CAN information display; larger formats and touch variants quoted per programme | 7–10″ TFT, optical bonding | CAN 2.0 / CAN-FD | IP54+ |
| CMSElectronic mirrors | Camera-monitor system replacing Class II / Class IV mirrors under the UN-R46 indirect-vision framework; UN-R46 / R151 homologation available upon project requirement | PBX-955 CMS platform — configurable for 3-camera baseline or extended-coverage geometries subject to project specification; paired with cabin A-pillar monitors | A-pillar TFT monitors + 1080p HDR cameras | CAN + LVDS | IP67 cameras, IP54 monitors |
| Surround-viewClose-perimeter blind-spot | Stitched bird's-eye-view system for low-speed manoeuvring, depot operation and articulated-bus rear-section coverage; configurable for 270° baseline and 360° all-round applications | PBX-2050 platform — configurable for both 270° baseline and 360° all-round view applications, subject to camera count, mounting geometry and project specification | Cabin display reused | CAN + LVDS / NTSC | IP67 cameras |
| HUDW-HUD + C-HUD | Head-up display projecting speed, navigation and ADAS notices into the driver's primary line of sight; W-HUD on programs with windshield wedge layer, C-HUD on retrofit and lower-volume programs | PBX-961 (W-HUD, 15″ image at 2.4 m projection, lane-departure ADAS), PBX-2203 (C-HUD, 8–12″ image at 1.5–2 m projection, entry-level) | 15″ W-HUD / 8–12″ C-HUD virtual image | CAN + LVDS | IP54 dashboard volume |
Common operating envelope across the catalogue: working temperature typically −40 to +85 °C (specific per-model bands per datasheet, with the cabin-monitor parts narrower and the exterior-camera parts wider, and the plateau cluster PBX-2301 self-heating to −45 °C), supply 9–32 VDC, sun-readable brightness above 700 nits with above 1500 nits available on the daylight-margin variants, optical bonding and capacitive multi-touch on the cluster and display panels, IP54 to IP67 sealing matched per mounting position, ISO 14229 UDS support on the CAN-attached parts, and IATF 16949 manufacturing throughout. PPAP, IMDS, UN-R46 / R151 homologation, ASIL-rated component qualification, e-Mark, SASO and EAC documentation are available upon project requirement rather than as catalogue documents.
If the program has not yet decided which screen owns the regulated visuals, which screen owns the secondary body-controls visualisation and whether the mirror replacement runs alongside surround-view or in place of it, the best starting point is to scope the driver's glance path against the duty cycle first, then add the cluster + secondary display partition, then add CMS and surround-view based on the indirect-vision and blind-spot requirements, and finally add the HUD if the duty cycle justifies it. The supplier conversation goes more smoothly when the cabin-display layout is sketched on one sheet rather than negotiated module-by-module across several email threads — for an architecture review against an existing program brief, the same project workflow described on the PDB and BCM manufacturer profile applies to the PBX catalogue.
