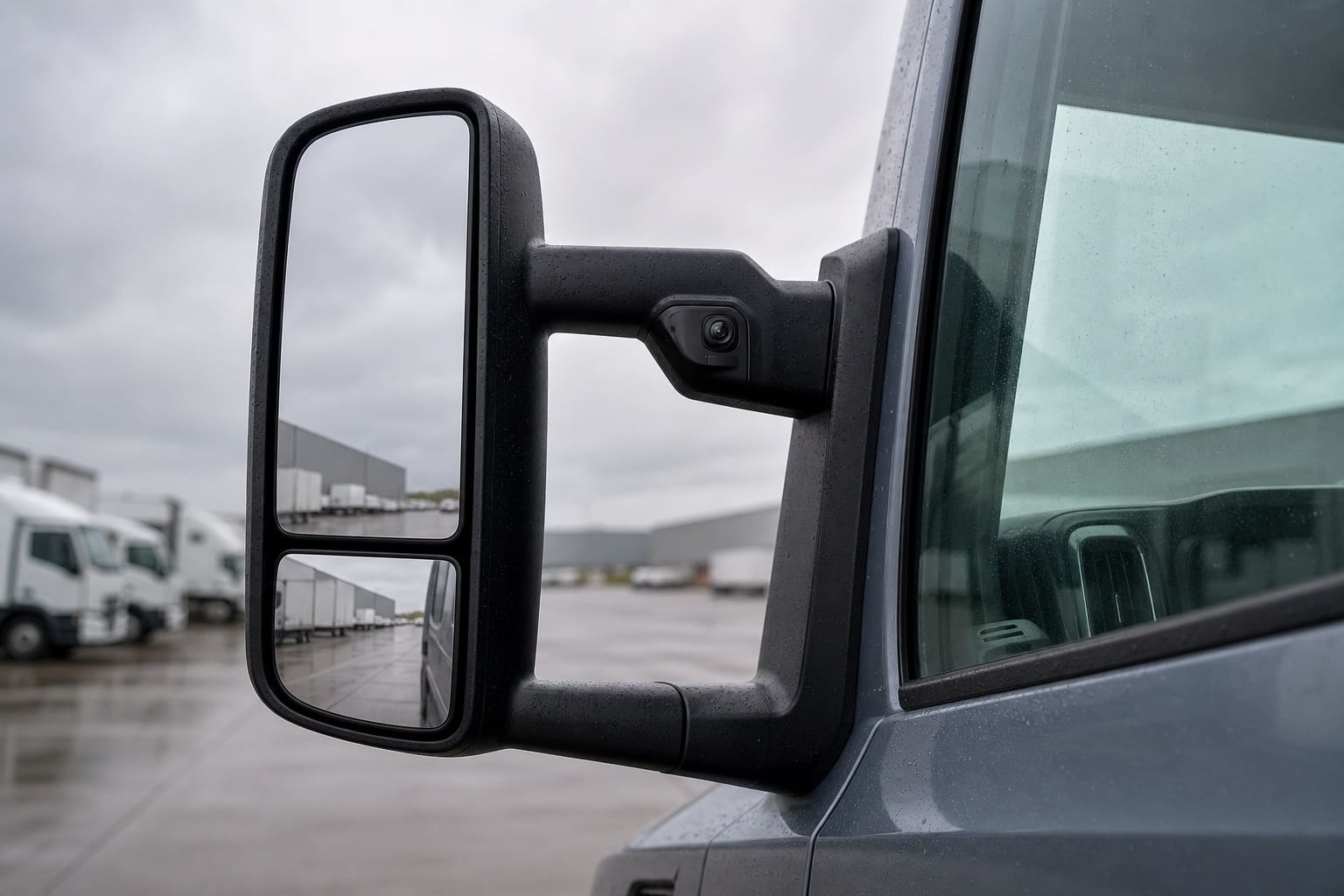

The exterior mirror is one of the oldest parts of a truck or bus, and one of the fastest changing. For decades it was a piece of glass on an arm, aimed by hand. Then the glass got motors and a heater, and the driver aimed it from a switch on the door panel. Now the glass itself is starting to disappear, replaced on some vehicles by a camera and a screen. Through all of that, the job never changes: give the driver a reliable, legal view down the sides of a large vehicle, especially into the blind spots where a cyclist or a car can vanish.
This guide is the version of the mirror-systems conversation we have with commercial-vehicle OEM buyers. It covers what the mirror system is responsible for, how powered mirror control works and which control layout to pick, what the field-of-view regulations actually demand, where camera monitor systems (electronic mirrors) fit and where they do not yet, and what to confirm with a supplier before you source either the control or the whole system.
1. What a mirror system on a commercial vehicle does
On a passenger car a pair of mirrors is a convenience item. On a heavy truck, a bus or a piece of construction machinery it is a safety system, because the vehicle is long, tall and surrounded by blind spots a driver cannot see directly. A commercial-vehicle mirror system has to do several jobs at once.
- Cover the legally required fields of view. Regulations define zones down each side of the vehicle, at the front, and close to the cab that the driver must be able to see indirectly. The mirror set — or its electronic replacement — has to cover all of them.
- Let the driver aim the view. Different drivers, different loads and different trailers all change where the mirror needs to point, so the glass (or camera) has to be adjustable from the seat.
- Stay usable in bad conditions. A mirror that is fogged, iced or rain-covered is not covering its field of view, which is why heated glass and, on cameras, heated housings matter in commercial service.
- Survive the vehicle's life and duty. Cab-mounted controls get used every shift for years, and exterior hardware lives in spray, vibration and temperature extremes.
Most buyers think about the mirror head and forget the two electronic pieces that decide whether drivers actually use it well: the control that aims it and, on newer vehicles, the display that shows it. Those are the parts Youlai builds, and they are where this guide focuses. For how the mirror display fits with the rest of the driver-facing screens, the Displays & HUD technical guide covers the full picture.
2. Powered mirror control: how the driver aims the glass
On any vehicle with powered exterior mirrors, a control on the door panel or dash drives the mirror motors. The control does not carry the motors; it reports the driver's commands — which mirror, which direction, heat on or off — to the actuators through the cab harness. Youlai builds this control in two HMI formats, and the choice between them is about the cab layout and driver expectation, not electrical capability, because both share the same 24 V (18 – 32 V) envelope.
The EDK-2319 powered side-mirror switch is the multi-key layout most drivers already know: a four-way direction pad tilts the selected mirror, dedicated keys pick the left or right mirror, and a separate key drives mirror heating to clear frost and condensation. Its 6 – 10 N key force gives the deliberate press drivers expect, and every legend follows GB 4094-1999 so the function reads at a glance. The multi-key format suits vehicles working in cold or wet climates, where a dedicated mirror-heat key is a direct safety control rather than a convenience.
The TDK-2307 side-mirror adjustment module puts the same job on one rotary knob: turn to select the L or R mirror, then work the knob to aim the glass. It trades the extra keys and the dedicated heat channel for a single round cut-out, which suits cabs where the switch bank is crowded or where the dash already uses a rotary HMI language. Both controls are cabin-interior parts specified for the protected door-panel environment, and both are configured — legend set, connector, mounting — per vehicle programme. If the two formats leave you undecided, the rule of thumb is: rocker for a familiar multi-function layout with mirror heat, rotary for the smallest footprint.
3. Field of view, blind spots and the regulations
The reason mirror specification is not a free-for-all is that indirect vision is regulated. On the international side, UN Regulation No. 46 defines the mirror classes and the fields of view a vehicle must provide: Class II main mirrors, Class IV wide-angle, Class V close-proximity (kerb) and Class VI front mirrors on heavy vehicles. China's GB 15084 indirect-vision standard sets equivalent requirements for the domestic market. The practical consequence for a buyer is that the mirror set on a truck or bus is not chosen for styling — each mirror is there to cover a defined zone, and removing or shrinking one is a compliance question, not a preference.
Blind spots are the reason those zones exist. A heavy truck has significant areas down the nearside, immediately in front of the cab, and close to the passenger door where a pedestrian or cyclist is invisible to the driver through the windscreen alone. Wide-angle and close-proximity mirrors exist specifically to cover those areas, which is why a large vehicle carries four to six mirror surfaces rather than the two on a car. It is also why the industry pressure to improve direct and indirect vision — for example the direct-vision requirements some cities now place on urban trucks — pushes toward wider coverage, and toward cameras that can see what a flat mirror cannot.
4. Camera monitor systems: the electronic mirror
The newest way to cover those fields of view is to stop using glass at all. A camera monitor system (CMS), often called an electronic mirror, puts a camera where the mirror head used to be and a screen inside the cab — typically on the A-pillar or the dash — showing the view the mirror would have shown. It is the same idea as a reversing camera, extended to the mirrors the driver relies on while moving.
The appeal on commercial vehicles is practical, not futuristic. A camera with a wide sensor can be designed to cover the Class II and Class IV zones in one view and to shrink the blind spot a flat mirror leaves. Depending on the system, it can widen the view when the vehicle indicates or turns, hold a clearer image at night than the eye reads from a dim mirror, and — on a full mirror-replacement design — remove the large aerodynamic mirror heads that cost fuel on a long-haul truck. Those are the operator gains driving CMS from option toward mainstream on new heavy vehicles.
The trade is that a CMS is a system, not a part. It brings a camera, a display, the processing between them, a power and heating budget, and a failure mode a piece of glass does not have — a screen can go blank. That is why regulators treat mirror-replacement CMS carefully, and why the display side is an engineering discipline in its own right rather than a bolt-on. A system-level electronic-mirror product combines cameras, an ECU and a display, and at Youlai that kind of integrated cockpit hardware is scoped as part of a vehicle solution rather than a single catalogue part, because the camera count, the display and the vehicle integration are defined by the programme.
5. Powered mirrors vs camera monitor systems: how to choose
For most commercial-vehicle programmes being specified today, the mirror is still glass with a powered control, and the CMS question is about whether and when to move. The honest comparison is less about which is “better” and more about where each one fits right now.
| Powered glass mirror | Camera monitor system (CMS) | |
|---|---|---|
| What the driver uses | Mirror glass + a cab control (EDK-2319 / TDK-2307) | A camera outside + an in-cab display |
| Field of view | Fixed by the glass; blind spots need extra mirror surfaces | Wider, can cover several zones and widen on a turn |
| Bad weather / night | Heated glass clears frost; limited by the eye at night | Heated housing + sensor can hold a clearer low-light image |
| Cost & complexity | Low; a proven control and a mirror head | Higher; a camera, display, processing and a blank-screen failure mode to design out |
| Regulation | Long-established under UN R46 / GB 15084 | Permitted as mirror replacement, approved per device and market |
| Best fit today | The mainstream choice for most programmes now | Fuel-sensitive long-haul, blind-spot-critical urban and higher-trim cabs |
The pragmatic path most buyers take is to specify a solid powered-mirror control now — the part that every current programme needs — while scoping CMS as a solution for the vehicles where its gains pay off: long-haul tractors where mirror drag costs fuel, urban trucks where blind spots are the safety priority, and higher-trim cabs where the cockpit is a selling point. A control such as the EDK-2319 or TDK-2307 is not wasted work in that transition, because a vehicle can carry powered glass mirrors and a CMS side by side while fleets and regulations catch up.
6. What to confirm with a supplier
Whether you are sourcing a powered-mirror control or scoping a full camera monitor system, the questions that matter are about capability and honest scope, not headline price. A mirror-related part carries a safety function and stays on the vehicle for its whole life.
- Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on programme handoff. Treat any verbal “automotive grade” claim without a certificate as marketing.
- The electrical and mechanical fit. For a control: the 12 V or 24 V supply, whether a mirror-heat channel is needed, the HMI format, the connector and the panel cut-out. The EDK-2319 and TDK-2307 share a 24 V (18 – 32 V) envelope, so confirm the mirror-actuator side matches whichever control you pick.
- Indirect-vision approvals, per market. For a CMS this is the whole ballgame: the device and its installation have to meet the destination market's indirect-vision requirements. Region-specific approvals are available upon project requirement, confirmed per programme and per region rather than blanket-claimed across a catalogue.
- System integration ownership. A CMS is a camera, a display and the processing between them. Ask who owns the integration — camera placement, display position, the failure mode if a screen drops — and whether it is scoped as a solution or handed over as loose parts.
- Environmental and durability evidence. Cab controls are rated for a cabin duty cycle; exterior camera housings live in spray, vibration and temperature extremes. Ask for the rated life and the ingress and vibration validation, and confirm they come from testing rather than a datasheet copy.
Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment, and works with commercial-vehicle OEM display and control suppliers through the OEM display & HUD manufacturing route. The contact page reaches the project team directly.
7. Suggested next step
If you are specifying the mirror side of a truck, bus or machine cab, the most useful things to bring to a first conversation are the supply voltage, whether you need a mirror-heat channel, the HMI format you prefer, and whether the programme is staying on powered glass mirrors or scoping a camera monitor system. That lets us match the EDK-2319 rocker or the TDK-2307 rotary module to your cab, or scope an electronic-mirror system against your vehicle plan. For how the mirror display sits alongside the instrument cluster and the head-up display, the cluster-versus-HUD guide and the Displays & HUD technical guide cover the rest of the driver-facing stack.
