HUD vs Digital Cluster: What Belongs in a Truck Driver's Line of Sight?

Updated July 2026

"We want to upgrade the dashboard display." That request lands on a sourcing desk almost weekly, and it hides a fork: it could mean a modern digital instrument cluster, a head-up display, or both. The two get compared as if you pick one, but they are not the same kind of part — one is the primary instrument the driver reads, the other keeps a few numbers in the driver's forward view. Quote against the wrong one and the sample disappoints for reasons that were never about the hardware.

This guide is the version of that conversation we have with OEM engineering buyers scoping a cockpit for a new truck, bus or machine. It assumes you know the cab has a CAN bus, and it sets out to do one thing: make the digital cluster, the combiner HUD and the windshield HUD easy to tell apart, so a requirement names the right display and the quote comes back for the right part.

1. Why the cluster and the HUD get compared

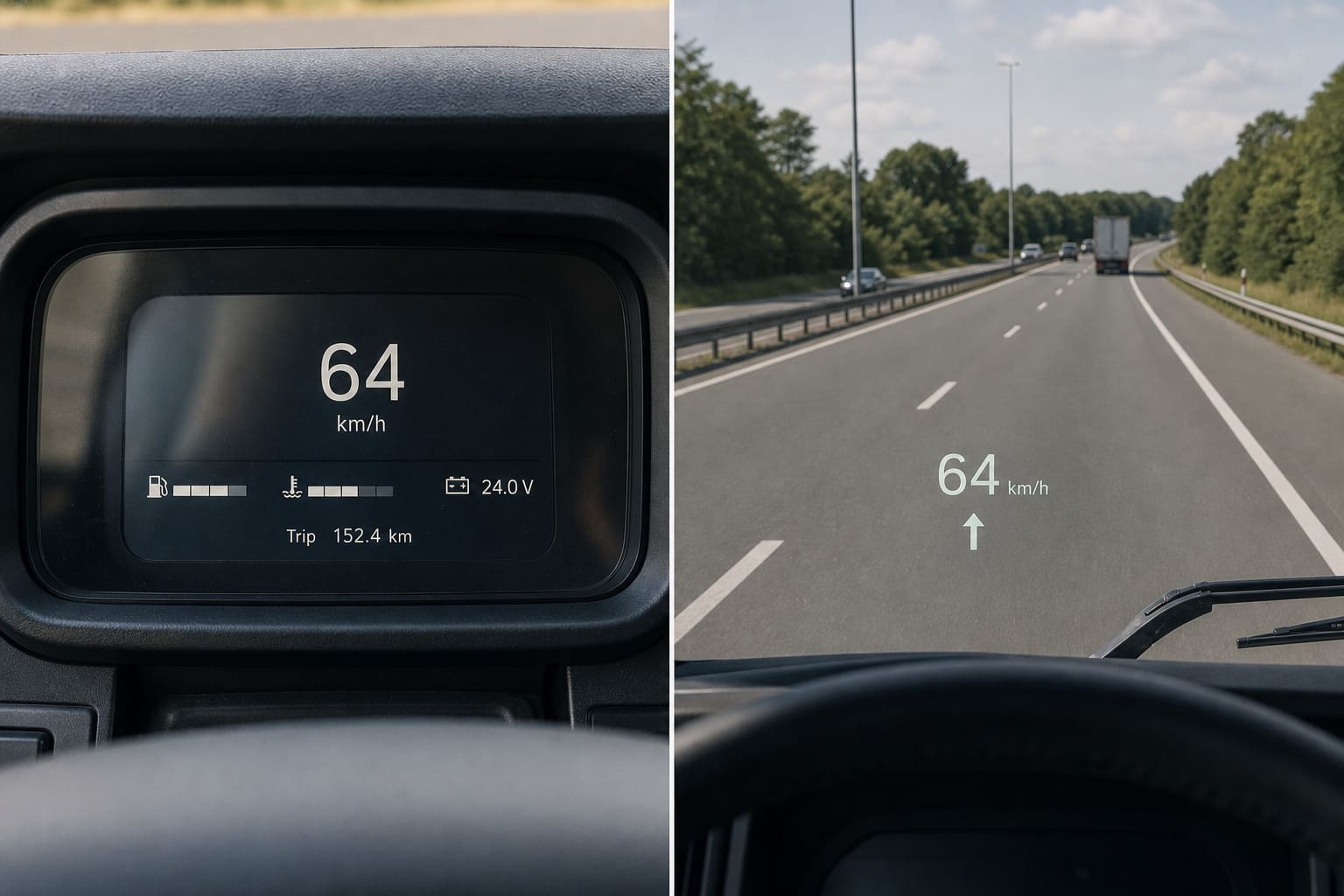

The confusion is understandable. Both are glass-fronted electronic displays, both are driven off the same CAN or J1939 signals, and both show the driver's speed. From a spec line that just says "driver display," they look interchangeable. They are not, because each answers a different question.

• The digital cluster answers where does the driver read the vehicle's full status — speed, engine or motor state, fuel or charge, temperatures, odometer and the regulated warning symbols.
• The HUD answers how do we keep the driver's eyes on the road for the few values that matter most while moving — speed, a navigation arrow, a lane-departure or ADAS warning.
• Windshield vs combiner answers, once a HUD is wanted, how large an image and how much cab integration the programme will pay for.

Hold those questions in mind and most cockpit requirements sort themselves. The cluster is the instrument every vehicle has to have; the HUD is the overlay a programme adds when reduced glance-down time is worth the cost. The rest of this guide takes each in turn, puts them in one table, and finishes with how to choose and whether to run both.

2. What the digital instrument cluster does

The digital instrument cluster is the primary instrument display, mounted behind the steering wheel where analog gauges used to sit. It replaces needles and lamps with a TFT / IPS screen driven off the vehicle bus, and it carries the complete picture: road speed, engine rpm or motor state, fuel level or state-of-charge, coolant and system temperatures, odometer and trip data, and the regulated telltale symbols (the ISO 2575 icons for brakes, ABS, airbag, indicators and the rest) that must stay visible whenever the vehicle is running.

The distinction that matters is that the cluster is the regulated, always-on instrument. Whatever else a cockpit adds, the mandatory warnings and the primary speed reading live here. Clusters come as fully digital screens or as combined clusters that mix a screen with a few physical gauges or telltales; the commercial-vehicle instrument cluster guide covers that split and what each reads off the bus. On the Youlai catalogue the range runs from the compact PBX‑2202, a 4.6-inch 960×320 IPS smart cluster with Bluetooth phone-link and wireless navigation mirroring on 9–32 VDC, up to the PBX‑2301, an 8-inch 1080×720 plateau / new-energy cluster with self-heating to −45 °C, a 5000 m altitude rating, CAN + CAN-FD and nine EV indicator lamps. The defining trait across all of them: the cluster carries the full, regulated instrument set. The litmus test is simple — if a symbol is required by regulation to stay visible, it belongs on the cluster.

3. What a HUD does: windshield vs combiner

A head-up display projects a small, focused set of values into the driver's forward line of sight, so reading them does not require looking away from the road. The data is the same CAN / J1939 information the cluster uses — speed, a navigation instruction, a lane-departure or ADAS alert — but only the handful that earn a place in the forward view. A HUD never carries the full instrument set, and it is not the regulated primary instrument; it is a glance-reduction overlay that sits on top of the cluster. The commercial-vehicle HUD guide covers how the optics form the image. The two forms differ mainly in where that image lands.

• Combiner HUD (C-HUD). Projects onto its own small fold-up glass combiner that rises from the dash, so it is self-contained and does not depend on the windshield. The PBX‑2203 gives an 8–12-inch image at 1.5–2 m projection distance from a 480×240 TFT in a 1.2–2 L housing on 9–32 VDC. Because it brings its own optics, it is the easier retrofit and the lower-integration choice.
• Windshield HUD (W-HUD). Uses free-form mirrors to project onto the windshield itself, for a larger virtual image that appears farther down the road. The PBX‑961 puts a 15-inch image at 2.4 m through a dual free-form mirror and is lane-departure / ADAS-ready on 18–32 VDC. It gives the most immersive result, but it has to be matched to the windshield rake and needs more dashboard packaging, which makes it a new-programme decision rather than a bolt-on.

The trade-off between the two is image size and immersion against integration effort and cost. A combiner is the quicker, cheaper way to put speed and navigation in the forward view; a windshield HUD is the higher-integration option, worth it when a larger image and a lane-departure or ADAS overlay justify the optical work. Neither removes the need for a cluster behind them.

4. Digital cluster vs C-HUD vs W-HUD, side by side

With each display's job clear, the differences line up. The table below is the one to keep next to a cockpit requirement: it answers the questions a buyer has to settle before naming a part.

The row that resolves most disputes is "carries regulated telltales." The cluster does, which is why it is mandatory and cannot be removed; the HUDs do not, which is why they are always additions on top of a cluster, never a replacement for it. Read that one row and the "can a HUD replace the dashboard?" question answers itself.

5. How to choose, and whether to run both

Once the jobs are clear, the choice follows the programme's budget and the value of keeping the driver's eyes up. Three common shapes cover most cabs.

The question buyers ask most is whether a HUD can stand in for the cluster to save cost. It cannot: the regulated telltales and the primary speed reading have to remain on an always-on instrument, so the cluster stays and the HUD is the layer added on top. Budget the HUD as an addition, not a substitution, and the architecture stays honest.

6. Supplier and specification questions

Because a cluster and a HUD share the same bus data and often the same cockpit, the supplier questions that matter are about optical quality, environment and protocol depth, not headline price.

• Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on programme handoff. Treat any verbal "automotive grade" claim without a certificate number as marketing.
• Brightness and sunlight readability. For a HUD this is the make-or-break spec: ask for the luminance in cd/m² and the automatic dimming source, because the image has to out-shine daylight through the same glass. Clusters need a sunlight-readable rating too, especially in open or high-cab machines.
• CAN / J1939 signal ownership. Both displays read the vehicle bus. Agree the signal list, the message matrix and who owns it — the OEM or the supplier — and confirm CAN, CAN-FD and J1939 support. The PBX‑2301's CAN-FD support and EV indicator set are examples of matching the cluster to the drivetrain.
• Environmental and altitude rating. Temperature range, vibration and, for plateau routes, an altitude rating are cockpit realities. A self-heating cluster rated to −45 °C and 5000 m exists for exactly these routes; state the worst case for your operation.
• Optical integration for HUD. A windshield HUD must be matched to the glass rake and treated to avoid double-imaging; a combiner HUD carries its own glass but still needs a defined eyebox and mounting. Confirm the supplier does this optical work rather than shipping a generic projector.
• Region-specific approvals. e-Mark / ECE for Europe, SASO for the GCC, FCC / DOT for North America are available upon project requirement, not blanket-claimed across the catalogue. An honest supplier separates certifications it holds in hand from those it runs on a project basis.

Questions you will be asked at RFQ stage

• Cluster, HUD or both? Which sets the cockpit scope, the connector count and whether the windshield has to be designed around a projector.
• MOQ and samples. A configurable variant of an existing PBX cluster or HUD can usually move to samples quickly; a custom screen size or layout follows the tooling and firmware timeline. Sample quantities are agreed per programme.
• PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on programme handoff.
• Customisation scope. Variants on an existing PBX platform (screen size, resolution, telltale and EV-indicator set, projection distance, bus matrix, connector, mounting) are routine, not an exception.

If you are scoping a cockpit and still deciding what the driver should see, the most useful things to bring to a first conversation are your driveline and cab type, the CAN / J1939 signal list, and whether reduced glance-down time is a programme goal. That lets us map the requirement onto the PBX‑2202 or PBX‑2301 cluster, the PBX‑2203 combiner or the PBX‑961 windshield HUD, or tell you where a custom screen is needed. For the full display stack the Displays and HUD technical guide is the wider reference, and if you are past architecture and evaluating sourcing, the commercial-vehicle display & HUD manufacturer page covers the OEM manufacturing side.

For drawings, a cockpit-layout review or a sample request against your vehicle programme, please use the contact page or message +86 134 6767 4786 on WhatsApp. Typical reply within 24 hours during China business hours (UTC+8).
