T-BOX Telematics: How a Commercial Vehicle Talks to the Fleet Office

A practical guide for OEM teams scoping a commercial-vehicle T-BOX: what it does, how it links the vehicle to the fleet back-end, how it differs from a gateway and BCM, and what a supplier needs before quoting.

Buyer Guide ~10 min read
Blueprint-style flow illustration of a commercial-vehicle T-BOX: the truck's CAN bus feeds the telematics box, which links to a GNSS satellite, a cellular tower and a fleet back-end office.

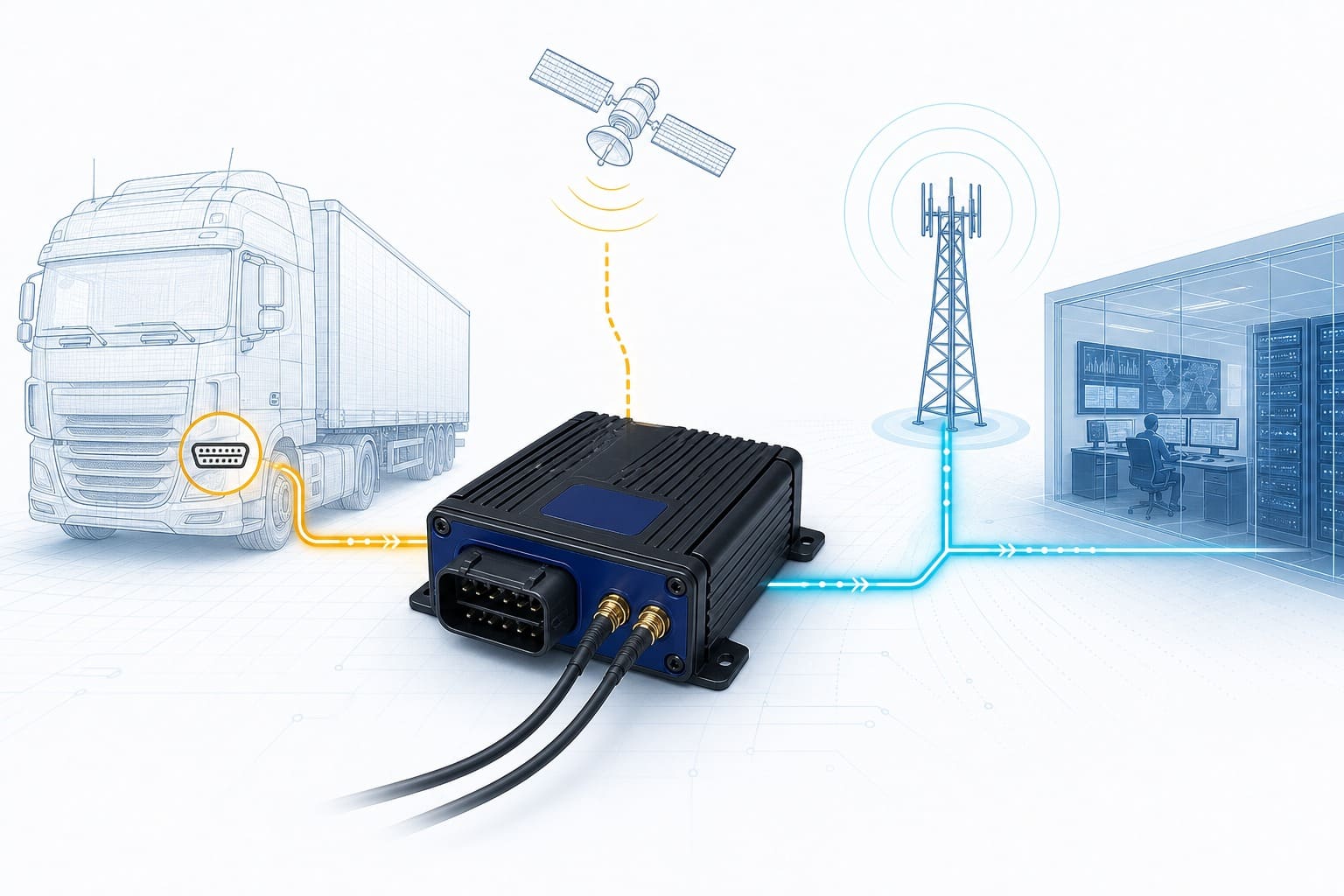

A T-BOX reads the vehicle CAN bus and carries the data off the truck over the mobile network to the fleet office, with GNSS supplying position.

A fleet operator wants to know three things about every vehicle: where it is, what it is doing, and whether it needs attention. For most of the history of commercial vehicles there was no way to answer those questions without a phone call to the driver. The telematics box changed that. It is the unit that takes the data already moving on the vehicle's CAN bus and carries it off the vehicle, over the mobile network, to a back-end the fleet office can see.

This guide is the version of the T-BOX conversation we have with OEM engineering buyers during project scoping, written down. It assumes you know what a CAN bus is and that your program is weighing a connected-vehicle build, whether that is fleet tracking on a heavy truck, OTA update on a connected passenger car, or a regulator-driven emergency-call requirement on a bus.

1. What a T-BOX actually does

A T-BOX, short for telematics box, is the controller that connects the on-vehicle networks to the mobile network and to a positioning system. It is the bridge between two worlds: the CAN or J1939 bus inside the vehicle, and the cellular and GNSS infrastructure outside it. Everything else a telematics box does is built on that bridge.

On a commercial vehicle a T-BOX is responsible for:

  • Cellular connectivity. Carrying vehicle data to the fleet back-end over the mobile network, on a 4G LTE link with 3G and 2G fallback for patchy coverage.
  • Positioning. Reporting where the vehicle is, through a GNSS receiver, so the back-end can place it on a map and reconstruct a trip.
  • CAN data acquisition. Reading the buses the vehicle already runs — speed, fuel, fault codes, odometer, driver inputs — and packaging what the fleet platform wants.
  • Driver-behaviour sensing. Flagging harsh acceleration, harsh braking and tow-away events from an on-board accelerometer and gyroscope.
  • In-cab connectivity. Hosting a WIFI hotspot that shares the cellular link with the driver and passengers, where the program asks for it.
  • Emergency and service calls. Running an E-Call or B-Call voice channel so an incident, or a button press, can open a line to a call-centre.
  • Remote management. Accepting OTA software updates and a limited set of remote commands, and waking itself on the right trigger without draining a parked battery.

A short way to describe it: the gateway moves data between the vehicle's own networks, and the T-BOX moves data between the vehicle and the world. On the Youlai catalogue this role is filled by the EBX‑2054 4G LTE T-BOX, a full-stack unit that folds the cellular modem, the GPS and BeiDou receiver, the in-cab WIFI hotspot, the E-Call audio path and a 6-axis crash sensor into one box rated for both 12 V and 24 V vehicles.

2. The connectivity stack: cellular, GNSS, WIFI and E-Call

A telematics box is really three radios and an audio path sharing one MCU. Each layer answers a different fleet question, and a specification has to say which of them the program actually needs rather than assuming the full set.

Cellular WAN — the link to the back-end

The cellular modem is the layer that defines a T-BOX. It carries the vehicle data to the fleet platform and brings remote commands back. A unit such as the EBX‑2054 covers a 4G LTE TDD and FDD compatibility set with 3G and 2G GSM fallback, so a vehicle that drops off 4G in a rural corridor keeps reporting on a slower bearer rather than going dark. A detail worth setting early is dual-APN support, which lets the operator separate the back-end telematics traffic from any in-cab consumer traffic on the same SIM, so a driver streaming video does not share a data path with the fleet-management channel.

GNSS — where the vehicle is

Positioning is the second half of what makes telematics useful, and on its own it is what most buyers picture when they say tracking. A dual-system GPS + BeiDou receiver, as on the EBX‑2054, fixes position faster and holds it better in urban canyons than a single-constellation receiver, with a cold start under 40 seconds, a warm start under 10 seconds and accuracy within about 10 metres on the standard build. The update rate of 1 Hz is enough for fleet tracking and trip reconstruction; a higher rate is a project conversation, not a default.

In-cab WIFI and the E-Call audio path

The last two layers are program-dependent. A 2.4 GHz WIFI hotspot turns the cellular link into an in-cab amenity for the driver and passengers, which matters on a coach and rarely on a tipper. The E-Call and B-Call audio path puts an emergency or business voice channel into the box, automatically on a crash event detected by the gyroscope, or manually from a cab button. Some markets mandate an emergency-call function on certain vehicle classes, which is exactly the kind of destination-market requirement worth pinning down before you fix the hardware.

How a T-BOX connects the vehicle bus to the fleet back-end A clean left-to-right diagram on a light background. On the left, a truck icon represents the vehicle, with an amber CAN and J1939 bus inside it and a caption listing the on-board modules: BCM, gateway, instrument cluster and powertrain. An arrow carries that bus data into the T-BOX, drawn as a navy module in the centre. A satellite above sends a one-way GNSS position signal down into the T-BOX. A dashed vertical line marks the boundary of the vehicle just to the right of the T-BOX. A cellular report arrow crosses that boundary from the T-BOX to a mobile-network tower, which connects on to a cloud-shaped fleet back-end on the right. Along the bottom, a separate dashed return line runs from the fleet back-end back to the T-BOX, labelled OTA updates and a limited set of remote commands. A legend at the bottom explains that amber is on-bus data that stays inside, teal is links that leave the vehicle, and the dashed line is the narrower return path. T-BOX: from the vehicle bus to the fleet back-end Only the T-BOX crosses the boundary out of the vehicle — the bus and the gateway stay inside. INSIDE THE VEHICLE OUTSIDE THE VEHICLE Vehicle network on CAN / J1939 BCM · gateway · instrument cluster · powertrain CAN data GNSS position (1-way) T-BOX GNSS + cellular cellular report out mobile network Fleet back-end tracking · diagnostics · reports OTA updates & a limited set of remote commands back amber: bus data (stays inside) teal: links that leave the vehicle dashed: return path (OTA)
The gateway keeps bus traffic inside the vehicle; the T-BOX is the module that reports it to the fleet back-end.

3. T-BOX, gateway and BCM are three different jobs

The most common source of confusion in a connected-vehicle requirement is treating the T-BOX, the network gateway and the body control module as interchangeable because all three sit on the CAN bus. They are not interchangeable. They answer different questions, and a part built for one will not do the work of another.

ModuleWhat it ownsReference module
T-BOX (telematics box) The link between the vehicle and the outside world: cellular WAN, GNSS positioning, in-cab WIFI and the emergency-call path. The part that takes data off the vehicle. EBX‑2054 4G LTE T-BOX
Gateway (network gateway) Routing between the vehicle's own networks: bridging CAN segments, hosting the OBD diagnostic port, isolating one bus from another. Data stays inside the vehicle. EBX‑2301 network gateway
BCM (body control module) The body-load logic: which lights, wipers, doors and signals switch on, and when. Covered in the heavy-truck BCM guide. EBX‑954 heavy-truck BCM

A useful test when a requirement lands on your desk: ask where the data goes. If the answer is "off the vehicle, to a back-end," it is a T-BOX. If it is "between two networks on the vehicle," it is a gateway. If it is "to a body load that needs switching," it is a BCM. The line buyers blur most is the T-BOX-and-gateway one, because both read CAN. The distinction holds anyway: the gateway keeps the conversation inside the vehicle, the T-BOX is the only one of the three that opens a channel to the world.

On some platforms the gateway and the telematics function share a housing, and a single box can route the internal buses and carry the cellular link at once. That is a packaging decision, not a reason to stop specifying the functions separately. You still have to define the telematics behaviour — the bands, the back-end protocol, the sleep budget — even when it shares a box with the routing logic.

4. Inside a T-BOX: wake strategy, antennas and staying alive when parked

Underneath the connectivity, a T-BOX is defined by how it survives on a vehicle for years and how little power it draws when the vehicle is parked. When you write a specification, this is the layer that separates a fleet-grade box from a repackaged consumer tracker.

The hardest engineering problem in a T-BOX is not the radio; it is the sleep budget. A parked vehicle still has to report position and respond to a remote wake, but it cannot flatten the battery over a weekend. The answer is a tiered wake strategy. The EBX‑2054 arms several wake sources — CAN activity, a timer, a remote cellular push or SMS, and the G-sensor — and trims its own current to match: on the order of 1 mA with CAN and timer wake armed, around 2 mA with the G-sensor added, and about 5 mA in the active-sleep state that keeps the remote-wake path listening. Active, it averages under 400 mA. Those numbers, not the data rate, are what decide whether a fleet of parked trucks starts on Monday.

  • Tiered wake and sleep. CAN-wake, timer-wake, remote-wake over the cellular link and G-sensor-wake, each with its own quiescent budget, so a parked vehicle reports without draining the battery.
  • Service-runtime backup. An on-board 320 mAh battery keeps the telematics service alive for around ten minutes after the main supply is cut, which is what lets the box report a tow-away or a disconnected battery; the real-time clock holds time for up to fifteen days.
  • External antennas, keyed. The cellular and positioning antennas land on FAKRA connectors — one keyed body for the positioning antenna, another for the cellular antenna — so a roof-mounted antenna pair cannot be cross-connected at the harness. The WIFI antenna is internal.
  • Self-recovery. A hardware watchdog auto-resets the box on a software hang, so a hung unit in a vehicle three countries away does not need a physical visit, and OTA closes the loop on firmware in the field.
  • Survives the environment. A three-coat conformal coating on the board guards against humidity, dust and salt-fog above the housing seal, on a unit rated for an in-cab or behind-dash mounting rather than open chassis exposure.

Most buyers underestimate the sleep budget and over-specify the data rate. A fleet box spends almost all of its life parked or cruising at a steady 1 Hz report; the megabits per second on the WIFI radio almost never bind. The current draw when the key is off, on the other hand, is what generates the warranty calls.

5. What makes the fleet side work: back-end protocol, dual-APN and OTA

A T-BOX is only half of a telematics system. The other half is the fleet back-end it reports to, and the two have to agree on a protocol before any of the hardware matters. This is the part of the requirement that most often arrives undefined, and it is the part that decides whether the integration takes a week or a quarter.

Three things sit at the centre of the fleet-side conversation. The first is the back-end protocol: the message format and the server the box reports to, whether that is a standard fleet-platform protocol or the OEM's own. The second is the data plan, where dual-APN matters, keeping the fleet-management traffic on an enterprise path separate from any consumer hotspot traffic on a public one. The third is OTA, because a connected vehicle that cannot update its own telematics firmware in the field is a connected vehicle that needs a workshop visit for every change, which defeats the point.

From a sourcing perspective, the question to ask is not "does it support OTA" — almost everything claims to — but "what exactly is OTA-updatable." On a unit like the EBX‑2054 both the customer telematics application and the cellular modem firmware update over the air, which is the combination that keeps a deployed fleet maintainable without recalling vehicles. A box that can only update its application but not its modem stack will eventually strand you on an obsolete bearer configuration.

6. How to write a T-BOX specification a supplier can quote

A T-BOX requirement a supplier can quote against, rather than guess at, covers six things. Skipping any one of them is what turns a quick quote into a round of questions.

  1. System voltage. 12 or 24 V nominal, the tolerance band, and whether one platform has to serve both — a dual-rated 10–32 V input lets a single box cover a car and a truck program.
  2. Destination market. The country or region the vehicles run in, which fixes the cellular operator bands, the SIM or eSIM arrangement, and the radio type approval the box has to carry. This is the single most important section, and the one most often left blank.
  3. Connectivity scope. Cellular only, or cellular plus GNSS, plus an in-cab WIFI hotspot, plus an E-Call or B-Call audio path. Each layer you add is a cost and an approval, so add only the ones the program needs.
  4. Vehicle interface. How many CAN channels, which protocol — CAN 2.0, CAN-FD or SAE J1939 — and the back-end protocol the box reports to. Name the fleet platform if it is fixed.
  5. Sleep and wake budget. The acceptable parked-current draw and the wake sources the program needs, so the supplier can size the quiescent design to the fleet's parking pattern.
  6. Environment and connectors. The IP rating and mounting location (in-cab, behind-dash or sealed external), the working-temperature range, and the connector and antenna interface the unit has to match.

The decision buyers leave until last and regret is the destination market in point two. It sets the radio bands and every approval that follows, so deciding it after the quote means re-quoting the radio. Settle it early.

7. What to look for in a T-BOX supplier

A T-BOX carries a fleet's connectivity for years and depends on a radio that is subject to per-market approval, so the supplier questions that matter are about capability and honesty, not headline price.

  • Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on program handoff. Treat any verbal "automotive grade" claim without a certificate number as marketing.
  • Cellular and approval experience. Band plans, dual-APN, and the per-market radio type approval are not generic embedded work. A supplier that has shipped telematics boxes should discuss the approval path for your destination market concretely rather than promising blanket compliance.
  • Sleep-current discipline. Ask for the quiescent figures in each wake state, not just a single "low power" claim. A supplier that can quote the budget per wake source has actually engineered the parked case.
  • EMC and environmental capability. A box with multiple radios is both an EMC source and a victim. Confirm in-house EMC pre-compliance and environmental testing rather than outsourced-only validation. Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment.
  • Region-specific approvals. Radio type approval for the destination market, and any vehicle-side telematics type approval the market requires, are available upon project requirement, not blanket-claimed across the catalogue. An honest supplier separates what it holds in hand from what it runs on a project basis.

Questions you will be asked at RFQ stage

  • MOQ and samples. A configurable variant of an existing EBX platform can usually move to samples quickly; a band plan or back-end protocol unique to your fleet follows the firmware and approval timeline. Sample quantities are agreed per program.
  • Lead time. Driven mostly by the destination-market radio approval and the back-end-protocol integration, not by the hardware build itself.
  • PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on program handoff.
  • Customisation scope. Variants on an existing EBX platform — band plan, antenna pairing, CAN matrix, back-end protocol, connector — are routine, not an exception.

If you are scoping a telematics box, the most useful things to bring to a first conversation are your destination market and your connectivity scope from section 6 — which radios you actually need, and the back-end protocol the box reports to. That lets us map your requirement onto the EBX‑2054 platform or tell you honestly where a custom variant is needed. For how the T-BOX sits among the BCM, VCU, PMU and gateway, the Smart Control Modules technical guide covers the full module stack.

For drawings, a band-plan and back-end-protocol review or a sample request against your fleet platform, please use the contact page or message +86 134 6767 4786 on WhatsApp. Typical reply within 24 hours during China business hours (UTC+8).

FAQ

Is a T-BOX the same thing as a vehicle gateway?

No, though the two are easy to confuse because both sit on the CAN bus. A gateway routes traffic between the vehicle's own networks, for example bridging a powertrain CAN segment to a body CAN segment or exposing the buses to an OBD diagnostic port. A T-BOX takes the data off the vehicle entirely and carries it to a fleet back-end over the mobile network, and it adds GNSS positioning and usually an in-cab WIFI hotspot and an emergency-call audio path. A gateway keeps data inside the vehicle; a T-BOX is the unit that gives the vehicle a connection to the outside world.

Does the T-BOX control anything on the vehicle, like a BCM does?

Not in the body-control sense. A T-BOX mostly reads the CAN bus and reports what it sees to the back-end, and it accepts a limited set of remote commands, such as a remote wake-up or, on a suitably equipped vehicle, a door-unlock request that the relevant control module actually executes. The body control module owns the body-load logic and the vehicle control unit owns the powertrain decisions; the T-BOX is the connectivity layer that lets those modules be monitored and, within tightly scoped limits, commanded from off the vehicle.

Which cellular bands and approvals does a T-BOX need for my market?

That is set by the destination market, not by the box. The radio has to support the operator bands in the target country, and it has to carry the local radio type approval for that market plus any vehicle-side telematics type approval the market requires. A unit such as the EBX-2054 covers a 4G LTE TDD and FDD set with 3G and 2G fallback; the specific band plan, SIM or eSIM arrangement and the radio type approval are confirmed per destination market on a project basis rather than claimed across the catalogue.

What do I need to send a supplier to quote a T-BOX?

Six things move a T-BOX quote fastest: the system voltage, 12 or 24 V, and whether one platform has to serve both; the destination market, which fixes the cellular bands and the radio type approval; the connectivity scope, meaning whether you need GNSS, an in-cab WIFI hotspot and an E-Call or B-Call audio path on top of the cellular link; the vehicle interface, meaning how many CAN channels and which protocol the box reads and the fleet back-end protocol it reports to; the sleep budget, because a parked vehicle reporting position must not flatten the battery; and the environment and connectors, meaning the IP rating, the mounting location and the connector and antenna interface. With those a supplier can map the requirement onto an existing platform or tell you where a custom variant is needed.
