Power Management Unit (PMU): How Trucks Replace the Fuse-and-Relay Box with Software

Updated June 2026

For decades the power side of a commercial-vehicle electrical system was a box of fuses and relays. Battery power came in, a fuse protected each circuit, a relay switched the bigger loads, and if something drew too much current the fuse blew and a technician replaced it. The box was reliable and easy to understand, but it could not tell you anything. It could not report which circuit had tripped, it could not shed a load to protect the battery, and every change meant re-cutting the harness.

The power management unit is what replaced it. This guide is the version of the PMU conversation we have with OEM engineering buyers during project scoping, written down. It assumes you know what a CAN bus is and that your program is weighing a smart power-distribution module against the fuse-and-relay box it would replace.

1. What a power management unit actually does

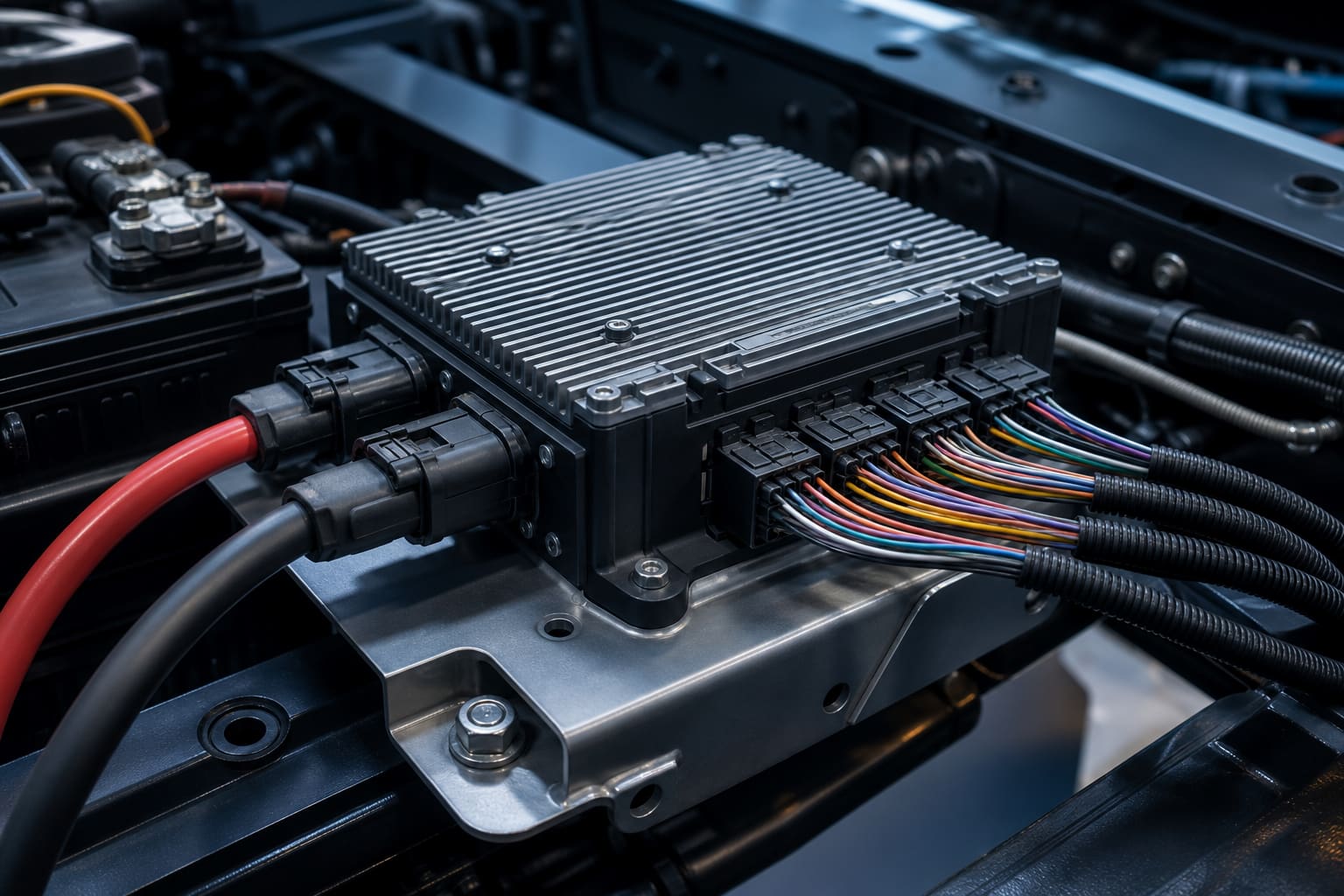

A power management unit is the controller that distributes and protects the low-voltage power on a vehicle. It takes the heavy feed from the battery and splits it into the dozens of protected circuits that run the lights, the solenoids, the pumps, the heaters and the accessories, and it does that with electronics rather than with mechanical fuses and relays.

On a commercial vehicle a PMU is responsible for:

• Power distribution. Taking the battery feed and splitting it into the protected output circuits the vehicle needs, on the 12 or 24 V side.
• Solid-state switching. Turning loads on and off through high-side-driver (HSD) channels instead of electromechanical relays, with no contacts to wear out.
• Per-channel protection. Current-limiting each channel, tripping it on a sustained over-current, and re-enabling it once the fault clears, in place of a one-shot fuse.
• Load budgeting and shedding. Deciding, under software control, which non-critical loads to drop when the battery is low so the vehicle keeps the circuits that matter.
• Diagnostics. Reporting the state of every channel — on, off, current-limited, tripped — over CAN or SAE J1939 so a fault can be read from a diagnostic tool rather than found by hand.
• PWM drive. On the channels that need it, modulating the output to hold a solenoid at a controlled current rather than just switching it.

A short way to describe it: the fuse box protected circuits and the relay box switched them, and both were blind. The PMU does both jobs in one controller and tells you what it is doing. On the Youlai catalogue this role is filled by the EBX‑2050 integrated PMU, which folds a 12-fuse and 4-relay distribution sub-section into the same housing as the smart-logic side, and the higher-current EBX‑2052 PMU with direct 50 A output channels.

2. The PMU versus the traditional fuse-and-relay box

The clearest way to understand a PMU is to put it next to the box it replaces. The two cover the same circuits; what changes is how much the system knows and how much it can do without a technician.

The part that matters most for a buyer is the in-rush behaviour. A mechanical fuse has to be sized above the load's start-up surge or it nuisance-trips, which means it is too slow to protect against a real fault. A PMU channel runs a current-limit envelope: it lets the channel draw its in-rush long enough to start, then trips only if the over-current persists past a protect-time threshold. That is how a PMU protects a circuit more tightly than a fuse while tripping less often on normal start-ups.

None of this makes the fuse box obsolete on every program. A simple low-channel-count vehicle with no diagnostic requirement is well served by fuses and relays, and they remain the cheaper option per circuit. The PMU earns its place when the program wants diagnostics, configurable protection, fewer physical relays, or load management the mechanical box cannot provide.

3. PMU, BCM and VCU are three different jobs

The most common source of confusion in a smart-control-module requirement is treating the power management unit, the body control module and the vehicle control unit as interchangeable. They are not. They answer different questions, and a part built for one will not do the work of another.

A useful test when a requirement lands on your desk: ask which question the module answers. If the answer is "how does power get to each load, and how is it protected," it is a PMU. If it is "which body loads switch on, and when," it is a BCM. If it is "how much torque, and how much energy do we recover," it is a VCU. The line between the PMU and the BCM is the one buyers blur most, because a PMU with smart outputs can switch loads directly. The distinction holds anyway: the PMU owns the power and its protection, the BCM owns the logic that decides what should happen.

On some platforms these roles are physically combined into a domain controller, and a single housing can carry more than one of them. That is a packaging and software decision, not a reason to stop specifying the functions separately. You still have to define the PMU's distribution and protection behaviour even when it shares a box with body logic.

4. Inside a PMU: smart channels, protection and diagnostics

Underneath the strategy, a PMU is defined by its channels, the protection envelope each channel runs and the bus it reports on. When you write a specification, this is the layer the supplier works from.

The channels themselves come in a few types, and a specification has to say how many of each:

• PWM-capable HSD channels. The main actuator interface, typically one per solenoid valve on a hydraulic-rich vehicle, modulated to hold a controlled current. The EBX‑2050 carries 12 of these; the EBX‑2052 carries 16 split across a 15 A and a 9 A drive class.
• Digital inputs (DI). The switch, sensor and interlock lines the PMU reads — vehicle-side switches, position feedback, pressure or level switches.
• Standard digital outputs. Lower-current accessory drives for indicator lamps, status LEDs and accessory taps that do not need PWM.
• High-current direct outputs. The largest loads. The EBX‑2052 provides two dedicated 50 A direct channels for a work-light bank, a pump motor or a blower motor that would otherwise force an external relay.

Every smart channel runs the same protection envelope, and it is worth understanding because it is the heart of what a PMU does differently from a fuse. The channel turns on and drives the load. If the current rises above the configured limit it enters current-limit mode, supplying the limited current while it watches whether the over-current clears. If the over-current persists past the protect-time threshold, the channel trips off and asserts a per-channel fault flag on the J1939 message catalogue. When the fault clears, the channel re-enables on its own.

That envelope rides through a start-up in-rush without nuisance-tripping, but disconnects a genuine sustained fault — a stuck actuator, a partial short or a wiring fault — within the protect time.

5. Integrated, high-current or central: choosing a PMU

Power management units are not one product. They differ mainly in how much current they switch, whether they fold the fuse-and-relay distribution into the same housing, and how they seal against the environment. The three on the Youlai catalogue map onto three common program shapes — two PMUs and the larger central power-distribution module a program steps up to.

The choice usually comes down to three questions. First, do you want the fuse-and-relay distribution inside the PMU housing or kept as a separate box — the EBX‑2050 integrates it, which removes the inter-box harness and gives a single fault-isolation point. Second, how much current do the biggest loads draw — if any load needs direct switching above what a standard HSD channel handles, the EBX‑2052 with two 50 A direct channels avoids an external relay. Third, where does the unit mount — a controller sitting chassis-side in the road-spray needs the IP66 sealing of the EBX‑2052 rather than the IP54 of an engine-bay placement. A pure smart-logic I/O extension with no distribution at all, such as the CAN-attached EBX‑962, is the right answer when the distribution already lives elsewhere and you only need more channels.

6. How to write a PMU specification a supplier can quote

A PMU requirement a supplier can quote against, rather than guess at, covers six things. Skipping any one of them is what turns a quick quote into a round of questions.

1. System voltage and battery input. 12 or 24 V nominal, the tolerance band, and the heavy-current class on the battery-input side so the connector and busbar are sized correctly.
2. Channel count and class. How many PWM-capable solenoid drives, how many digital inputs, how many standard outputs, and how many high-current direct outputs (for example 50 A channels). This is the single most important section.
3. Integrated or external distribution. Whether the fuse-and-relay distribution belongs inside the PMU housing, like the EBX‑2050, or stays as a separate program-side box.
4. Bus and diagnostics. CAN or SAE J1939, single or dual segment, and the per-channel diagnostic model — whether each channel's state has to appear on the message catalogue for fleet diagnostics.
5. Environment and sealing. The IP rating for the mounting location, the working-temperature range, and whether the unit sits in the engine bay or chassis-side in the road-spray.
6. EMC and connectors. The EMC profile the program runs to, and the connector family and harness drawing the unit has to match.

The decision buyers leave until last and regret is the integrated-versus-external one in point three. It changes the housing, the connector count and the harness topology, so deciding it after the quote means re-quoting. Settle it early.

7. What to look for in a PMU supplier

A PMU carries the vehicle's power and stays in the program for years, so the supplier questions that matter are about capability and support, not headline price.

• Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on program handoff. Treat any verbal "automotive grade" claim without a certificate number as marketing.
• High-current and protection experience. Per-channel current-limit tuning, in-rush ride-through and the protect-time envelope are not generic embedded work. A supplier that has shipped PMUs should be able to discuss the trip behaviour concretely.
• Diagnostics depth. Confirm that each channel's state reaches the J1939 message catalogue, not just an aggregate fault line, so the fleet can locate a fault to a channel.
• EMC and environmental capability. A controller switching high-PWM-duty inductive loads is both an EMC source and victim. Confirm in-house EMC pre-compliance and environmental testing rather than outsourced-only validation. Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment.
• Region-specific approvals. e-Mark / ECE for Europe, SASO for the GCC, FCC / DOT for North America are available upon project requirement, not blanket-claimed across the catalogue. An honest supplier separates what it holds in hand from what it runs on a project basis.

Questions you will be asked at RFQ stage

• MOQ and samples. A configurable variant of an existing EBX platform can usually move to samples quickly; a fully custom channel mix follows the harness and firmware timeline. Sample quantities are agreed per program.
• Lead time. Driven mostly by the channel-mix and connector decisions, and by whether the distribution side is integrated or external.
• PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on program handoff.
• Customisation scope. Variants on an existing EBX platform — channel mix, protection thresholds, connector, sealing class, J1939 message map — are routine, not an exception.

If you are scoping a power management unit, the most useful things to bring to a first conversation are your system voltage and the channel count and class from section 6 — how many solenoid drives, inputs, standard outputs and high-current channels, and whether you want the distribution integrated. That lets us map your requirement onto the EBX‑2050 or EBX‑2052 platform or tell you honestly where a custom variant is needed. For how the PMU sits among the BCM, VCU and gateway, the Smart Control Modules technical guide covers the full module stack.
