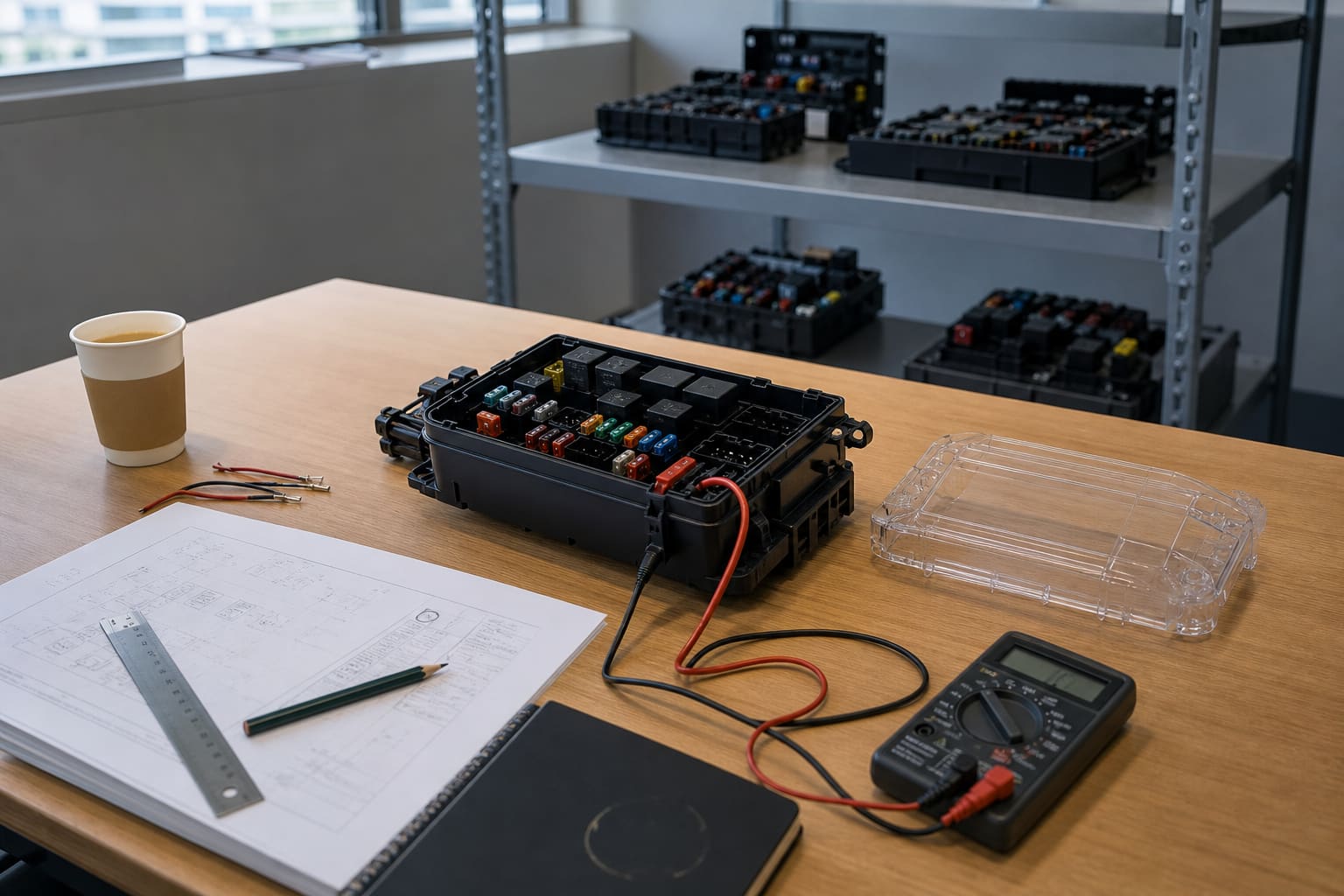

Power distribution is the spine of any commercial-vehicle electrical system. Everything downstream of the battery — lighting, body-control loads, comfort actuators, the BCM (body control module) and ECU (electronic control unit) rails, dashboard subsystems, sensor power, motors, valves — flows through one or more power distribution boxes before it reaches the harness. Get the box wrong and the rest of the program inherits the problem: nuisance fuse blows in cold mornings, intermittent contacts after a year of vibration, a sealing failure on the third spring after delivery. Get it right and the harness becomes invisible, which is exactly what an OEM customer wants.
This guide is written for OEM purchasing and engineering teams scoping power distribution for commercial vehicles, construction machinery and bus / coach programs. It covers what the box does, how it is structured, where the differences with passenger-car PDBs actually bite, the parameters that decide a sourcing choice, and where the Youlai NBX series fits across the four product families and 24+ active models. For the product catalogue itself, see the Power Distribution category page.
1. What an automotive power distribution box actually does
An automotive power distribution box (PDB) sits between the battery and the loads. Functionally it is doing four things at the same time, and a useful way to think about a PDB is to look at it as four stacked layers:
- Protection layer — fuses and fusible links that interrupt a circuit before the wire becomes the fuse. ATO / ATC blade fuses for low-current branches, mini-blade fuses where space is tight, Bussmann maxi-fuses or fusible links for the high-current trunks coming straight off the alternator and battery.
- Switching layer — relays that let a low-current signal (from the BCM, ignition switch, or a CAN-controlled output) close a high-current contact for headlamps, fan motors, fuel pumps, heater elements, body actuators. ISO mini and ISO micro relays are the workhorses; some platforms add a few solid-state relays where switching frequency is high.
- Distribution layer — busbars, common rails and copper geometry that get +B (constant battery) and switched-B (ignition-switched battery) from one entry point to many exit points without dropping voltage. On a 47-way distribution box this is the layer that quietly determines whether the harness behaves under full electrical load.
- Interface layer — connectors, terminals and seals on the outside of the box. Delphi (Aptiv), TE Connectivity (formerly AMP / Tyco), Molex and JST series are the standard menu. The connector choice is what binds the box to the harness mating side, and changing it later is one of the more painful program revisions.
Older commercial-vehicle harnesses had a single central PDB plus a couple of in-cabin fuse boxes and a relay block. Modern programs split the same function across multiple smaller boxes — a body central distribution box near the cabin, a chassis-mount sealed PDB on the frame rail, a dedicated fuse panel for the cab, sometimes an integrated power-and-control box on a piece of construction machinery — and the BCM increasingly takes over the smarter switching tasks that used to live in dumb relay logic. The PDB stays as the backbone for protection, current rails and sealed entry points; the BCM handles intelligence and CAN-controlled outputs. The two are designed together, not separately. We cover that interaction in Relay Box vs Fuse Box vs Junction Box and in the Smart Control Modules technical guide.
2. Power distribution box, fuse box, relay box, junction box — where the names overlap
The four names cover overlapping territory and the project conversation gets clearer once everyone agrees on which box does what. The short version:
| Box type | Core role | Typical contents | Youlai examples |
|---|---|---|---|
| Fuse box | Protection only | Fuse positions on a busbar; the core job is protection, not switching. Cabin-mounted, accessible to the driver in most commercial vehicles. | NBX‑955 (12-way), NBX‑981 (15-way) |
| Relay box | Switching only | Bank of relay sockets on a common rail, fed by a single supply, driven by low-current signals. | NBX‑2404 (6-channel modular — body-actuator switching for heavy trucks & buses) |
| Junction box | Passive distribution | Sealed enclosure that joins several incoming circuits onto a busbar and splits them out again — often no active components inside. Used on chassis runs, off-road equipment and places where a regular fuse panel will not survive. | NBX‑965, NBX‑966 |
| Power distribution box | All of the above in one box | Central PDB carrying fuses, relays, busbar distribution and sealed connector banks together. Circuit counts 30–65; body-mounted or sealed-chassis variants. | NBX‑957, NBX‑953, NBX‑958, NBX‑970, NBX‑971 |
In real programs the boundary between these categories blurs. A small-fleet customer will sometimes call a 12-way fuse box "the PDB" because it is the only distribution-side enclosure on the truck. A heavy-machinery customer will sometimes split a single PDB into a sealed junction box plus a separate relay block plus a small in-cabin fuse panel because the duty cycle and accessibility requirements pull in different directions. The naming on the BOM line follows the customer convention; what matters for the design conversation is which of the four functional layers (protection / switching / distribution / interface) each box is carrying, and whether the architecture is consolidated or split. We expand the architecture decision tree in Relay Box vs Fuse Box vs Junction Box.
3. Commercial-vehicle vs passenger-car PDBs — where the differences actually matter
Passenger-car PDBs and commercial-vehicle PDBs look similar from the outside. The differences are in the duty profile, and once you scope a heavy-truck or excavator program against passenger-car parts, the gap shows up quickly. Five places where it matters:
| Factor | Passenger-car baseline | Commercial-vehicle requirement | Design implication |
|---|---|---|---|
| Duty cycle | Short daily windows, intermittent use | Long daily operating windows; more vibration time, thermal cycling and service exposure | Failure modes that look like late-life passenger-car issues become early-warranty issues on truck, excavator or bus programs |
| Working temperature | −40 to +85 °C with passenger duty assumption | Same −40 to +85 °C on paper, but extended high-end exposure (desert summers, dust-storm under-bonnet) | Design margin must be built around realistic duty cycle, not the certificate number |
| Current density | Light body / accessory loads | Heavy lighting banks, heater elements, fans, pumps, hydraulic auxiliaries and sensor rails running concurrently | Busbar geometry sized for passenger-car density runs hot in commercial-vehicle programs, even with every circuit fused correctly |
| Vibration class | ISO 16750-3 | ISO 16750-3 heavy-duty road + JASO D008 / equivalent off-road profiles (an order of magnitude harsher) | Connector retention, terminal stress, busbar attachment and fastener torque must all step up — see Excavator Power Distribution Box |
| Sealing | Protected by the surrounding body | The PDB has to be the seal itself — IP65 floor for road spray, IP67 baseline for off-road / washdown | Sealing decision is upstream of almost every other parameter — see Waterproof IP67 Central Distribution Box |
The practical effect of all five together: a commercial-vehicle PDB is over-engineered relative to a passenger-car part, and the cost reflects that. The trade is reliability over the duty cycle. Programs that try to bring passenger-car parts up the ladder almost always end up paying for it through warranty, not BOM.
4. The parameters that decide a PDB sourcing choice
When an OEM purchasing team scopes a PDB against a new program, the conversation usually moves through the same eight parameters. Getting these on the table early — ideally before the harness drawing is locked — saves a revision cycle later.
| Parameter | Typical decision | What to confirm in RFQ |
|---|---|---|
| Operating voltage | 24 V nominal for heavy trucks, buses, construction and agricultural machinery in most of the world; 12 V nominal for light commercial and some pickup platforms. | Box rated 9–32 VDC to absorb cranking dips and load-dump transients on a 24 V system. |
| Total & per-circuit current | Total current shapes the busbar and main entry connector; per-circuit current shapes the fuse standard (ATO / ATC for low-to-medium branches, mini-blade where tight, maxi / Bussmann / fusible links for trunks). | Ask the supplier to separate total box current, continuous branch current and peak / inrush current — not just a circuit-count table. |
| Circuit count | 12 ways for cabin fuse panel; 30–65 ways for central distribution box; bespoke for integrated machinery box. | Go one step above the actual count — programs grow a feature or two between RFQ and SOP, and a spare position usually costs less than a respin. |
| IP rating | IP54 in-cabin only; IP65 chassis with road spray; IP67 off-road, machinery and any enclosure that sees pressure-wash. | See IP65 / IP67 Protection for the test methodology and what the rating means in service. |
| Connectors | Sealed Aptiv (Delphi) and TE Connectivity (AMP / Tyco) on commercial-vehicle baseline; Molex and JST on signal-side and lighter-load circuits. | Connector family decides harness-side cost and field-service experience — align with the customer's existing harness shop early. |
| Vibration & environmental class | ISO 16750-3 as a minimum; JASO D008 or equivalent for off-road equipment. | Cycle life on housing fasteners, connector retention force and busbar attachment decide survival — not the headline IP number. |
| EMC | CISPR 25 emission limits; ECE R10 immunity. | A relay-heavy PDB radiates if suppression is wrong — on CAN-driven vehicles that shows up first as bus errors. See EMC and environmental testing. |
| Quality system | IATF 16949 is the practical floor for Tier-1 commercial-vehicle programs; ISO 9001 is not a substitute. | See IATF 16949 for what this means for PPAP, APQP and FMEA expectations on the supplier side. |
The interaction between these parameters is where most program revisions come from. A higher IP rating typically forces a different connector family. A higher vibration class typically forces a different fastener strategy on the cover, which sometimes reopens the IP rating. The total current and the circuit count together set the busbar geometry, which sets the working temperature inside the housing, which sets the temperature class of the relays and fuses. Getting the eight parameters onto a single sheet at the RFQ stage — not eight parallel email threads — is the simplest form of insurance on a PDB program.
5. Where the Youlai NBX series fits
The Youlai NBX series is a family of OEM-grade power distribution boxes, fuse boxes, relay boxes and junction boxes built for the duty cycles, vibration profiles and environmental ranges that Chinese commercial-vehicle and construction-machinery manufacturers run their programs against. 24+ active NBX models cover the spectrum from compact cabin fuse boxes through to fully sealed IP67 chassis-mounted central distribution boxes. The four product families:
- Central Power Distribution Boxes — NBX‑950, NBX‑957, NBX‑953, NBX‑958, NBX‑970, NBX‑971, NBX‑954, NBX‑952 and NBX‑972. From a compact cabin unit up to 65 circuits, central placement, multi-relay plus multi-fuse architecture in one housing, with optional on-board CAN body-control logic. The NBX‑950 is the compact entry-level central PDB for light-commercial and light-machinery cabs; the NBX‑957 is the workhorse for body central distribution on heavy trucks; NBX‑953 and NBX‑970 carry higher circuit counts for bus / coach and electric-bus programs; NBX‑971 is the IP67 sealed variant for chassis-mount and off-road; NBX‑952 adds on-board CAN body-control logic; NBX‑972 is the high-density 65-circuit variant for the largest heavy-truck and construction-machinery programs.
- Fuse Boxes and Battery-Fuse Modules — NBX‑955 (12-way), NBX‑981 (15-way) and NBX‑2301 (17-way) are the standard cabin and body-circuit blade-fuse panels (ATO / ATC standard with mini-blade and Bussmann variants on request, removable cover, blade-terminal layout for fast field service). NBX‑980 is the bolt-on Littelfuse-style MEGA / MIDI module for battery main-feed protection, sitting upstream of the central PDBs.
- Relay Boxes — NBX‑2404 6-channel modular relay box for body-actuator switching: headlamps, wipers, fans, heaters. Reverse-polarity protection on the supply side, configurable common rail, ISO mini relay sockets.
- Junction Boxes and Sealed Enclosures — NBX‑961 excavator integrated box, NBX‑969 chassis distribution box, NBX‑968 sealed enclosure, NBX‑965 sealed junction box and NBX‑966 open-style terminal block. The IP65 / IP67 sealed models (NBX‑961, NBX‑969, NBX‑968) suit chassis and outdoor placement on construction machinery and off-road equipment; the NBX‑965 sealed junction box is IP54 for protected cabin or body-cavity placement; and the open-style NBX‑966 is intended for protected in-cabin or in-enclosure placement. NBX‑961 is the reference design for excavator power-and-control integration, with CAN-bus harness compatibility (J1939 family typical on commercial-vehicle and machinery networks) available on request.
Common operating envelope across the family: 9–32 VDC, −40 to +85 °C, ATO/ATC and Bussmann fuses, automotive-grade connectors (Delphi / Tyco / Molex / JST), configurable circuit counts, IATF 16949 manufacturing. CAN-FD and J1939-family harness compatibility is available on the platform variants where the program needs it. The full 19 representative models with images and direct links sit in the NBX model lineup on the product page; product-level drawings, BOMs and OEM compliance documentation are available via the contact page or directly on WhatsApp.
If the program has not yet decided on the architecture, the four buyer guides linked at the bottom of this page — fuse box selection, the relay-vs-fuse-vs-junction decision tree, the IP67 sealing case, and the excavator-PDB application notes — are the most direct path through the decision points. For an RFQ review against an existing harness drawing, the Power Distribution Box Manufacturer in China — IATF 16949 Certified OEM Supplier page covers the supplier side and the project workflow.
