Overview

The EBX-2313 is a pure-logic body control module engineered for light commercial-truck and light-duty machinery cabs. Unlike the larger EBX-953 that integrates a fuse / relay carrier inside the same housing, the EBX-2313 keeps the BCM logic compact and hands power switching back to an upstream power distribution box. The result is a small 138 × 170 mm cab-mount unit with a clean separation between body-control logic and high-current routing — the right architecture for light-truck programs that already have a separate PDB on the chassis.

The harness interface is the engineering centre of gravity. Five sealed connectors carry 100 pins total: three 12-pin output connectors (CON A / B / C) drive the lighting, locking, wiper, window and horn channels, and two 32-pin input connectors (CON D / E) read the body-side switches, door status, vehicle-network signals and the RKE antenna. CAN_H / CAN_L sit on CON D alongside LIN1 / LIN2; the external RKE antenna lands on CON E.

Integrated functions

The EBX-2313 covers the standard body-control function set for a light commercial-truck cab. Functional coverage is grouped by output domain:

  • Interior & exterior lighting. Dome lamp, trunk lamp, door-courtesy lamp drive (CON A); turn signals (left / right), park / position lamp, brake lamp, rear fog lamp, back-light feedback (CON C).
  • Central locking. Door lock / unlock outputs and trunk-unlock drive (CON A / B); door-lock-status feedback and tamper sensing read on the input side (CON D / E).
  • Electric windows. Six window-motor drive outputs — front-left / front-right up & down on CON A, rear-right reserved up & down on CON B; rear-left / rear-right window-switch reads on CON D.
  • Wiper & washer. Wiper LOW / HIGH drive outputs and front / rear washer drive (CON B / C); wiper intermittent / low-speed / high-speed and park-stop signal reads on CON E.
  • Horn & signal. Horn drive (CON B), with horn switch and hazard switch reads on CON E.
  • Vehicle network & RKE. CAN bus (CAN_H / CAN_L on CON D) for inter-controller communication; two LIN buses (LIN1 / LIN2 on CON D) for sub-network communication (electric-window / mirror-fold sub-buses are typical allocations); external RKE antenna pin on CON E for remote keyless entry.

Engineering details

The EBX-2313 fits a 138 × 170 mm rectangular envelope with five connectors arranged on three sides of the housing — three on the top edge (CON A / B / C in a 12P-12P-12P arrangement), two on the bottom edge (CON D / E in a 32P-32P arrangement). A 130.1 × 38 mm label area on the housing top is reserved for program-specific labelling. The housing material is PP-GF20 (polypropylene + 20% glass fibre), suitable for cab-interior temperature swing.

  • Pure-logic BCM — no integrated fuse / relay carrier; upstream fuse / relay routing handled by the customer's power distribution box
  • 5-connector / 100-pin harness interface: 3 × 12P output side (CON A / B / C) + 2 × 32P input side (CON D / E)
  • 1 CAN bus + 2 LIN buses on CON D — bus protocol family confirmed per program (J1939 family commonly used on commercial-vehicle networks); LIN1 / LIN2 allocation specified per program (electric-window and mirror-fold sub-networks are typical)
  • External RKE antenna interface on CON E pin 32 — remote-key frequency, modulation and security pairing confirmed per program
  • Reserved-input map (entries marked as reserved on the source PIN tables) gives the program room to add late-stage features without rev'ing the housing
  • PP-GF20 housing typical for cab-mount placement; chassis-mount or wash-down service should specify a sealed-connector variant at quotation

Mechanical layout & connector positions

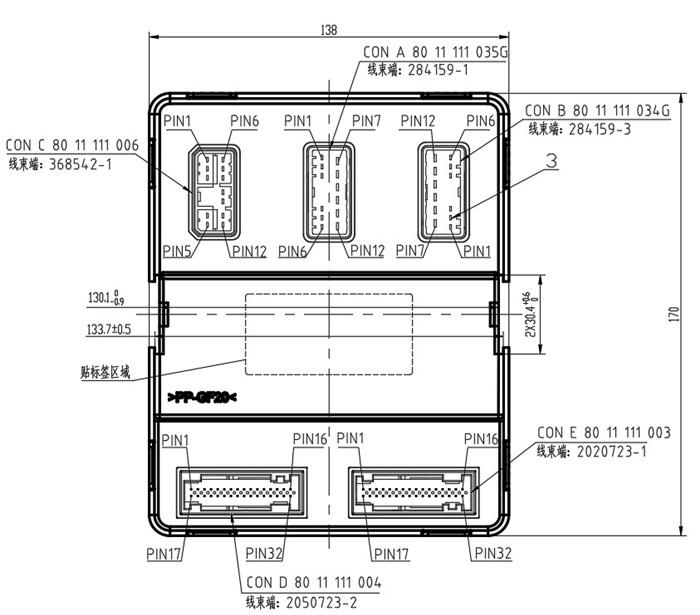

EBX-2313 mechanical drawing with five-connector layout, PP-GF20 housing and label area
Mechanical layout for EBX-2313 — 138 × 170 mm rectangular housing with five connector positions and a 130.1 × 38 mm label area on the housing top. CON A / B / C (12P) are on the top edge; CON D / E (32P) are on the bottom edge. Housing material noted on the drawing is PP-GF20. Programme-specific layout is confirmed against the customer harness drawing at quotation.

Mating connectors

Current-production EBX-2313 housings include 5 OEM-grade automotive connectors, all from the Tyco/AMP families. The reference P/N below documents the connectors on the current production build; the matching wire-side seals, terminal P/N and harness colour code are confirmed against the customer harness drawing at quotation.

Reference P/N (current production) — final housing / terminal set confirmed against the customer harness drawing at quotation
IDPositionPin countReference P/NBrand
ATop edge, output12P284159-1Tyco/AMP
BTop edge, output12P284159-3Tyco/AMP
CTop edge, output12P368542-1Tyco/AMP
DBottom edge, input32P2050723-2Tyco/AMP
EBottom edge, input32P2020723-1Tyco/AMP

I/O reference (CON A – E)

The five figures below document the full pin-level I/O reference for the current production build. Each connector figure shows pin number, signal name (English mnemonic plus Chinese definition), I/O direction and active level. Use these as the engineering reference; programme-specific signal allocation and active-level inversion are confirmed against the customer harness drawing at quotation.

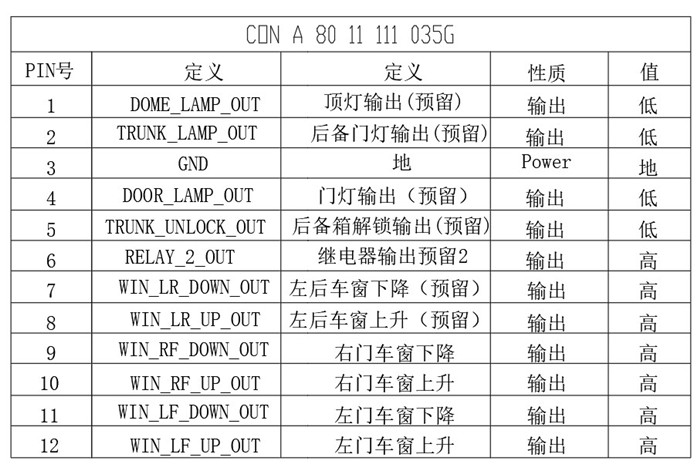

EBX-2313 CON A 12-pin output reference table — dome lamp, trunk lamp, door lamp, electric-window drive
CON A — 12P output (Tyco/AMP 284159-1). Drives interior lighting (dome lamp, trunk lamp, door lamp), trunk unlock, a reserved relay output and the four-door electric-window up / down outputs. Pin 3 is the ground reference.

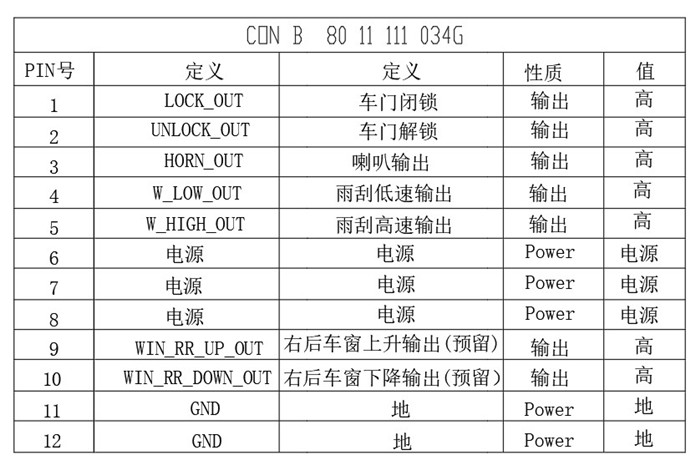

EBX-2313 CON B 12-pin output reference table — central locking, horn, wiper drive, electric-window reserved
CON B — 12P output (Tyco/AMP 284159-3). Drives central-locking (door lock / unlock outputs), horn output, front-wiper LOW / HIGH outputs, rear-right window-motor reserved up / down outputs, and carries three power rails plus two ground returns.

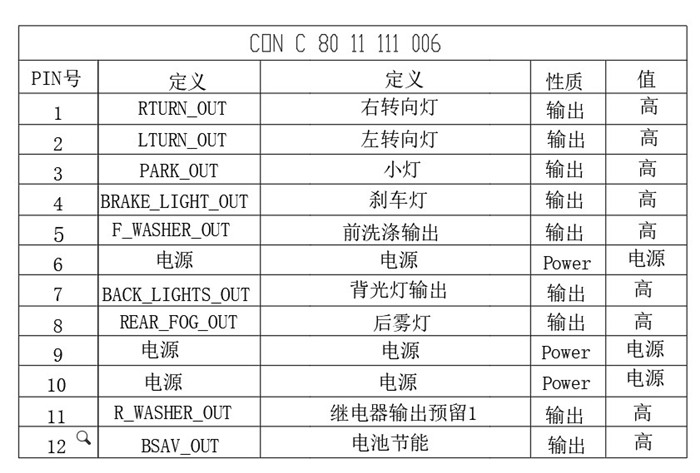

EBX-2313 CON C 12-pin output reference table — turn signals, park lamp, brake lamp, washer drive, fog lamp
CON C — 12P output (Tyco/AMP 368542-1). Drives exterior lighting (left / right turn signal, park lamp, brake lamp, back-light, rear fog lamp), front and rear washer outputs and a battery-saver (BSAV) output, with three power-rail positions.

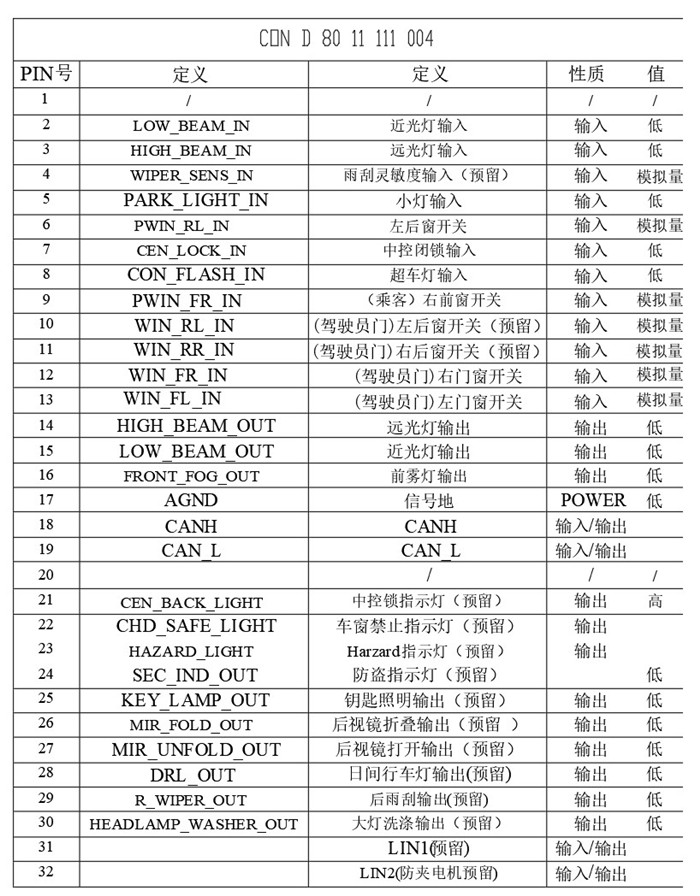

EBX-2313 CON D 32-pin input reference table — low-beam, high-beam, window switch, central-lock switch, CAN bus, LIN bus
CON D — 32P input (Tyco/AMP 2050723-2). The vehicle-network connector. Reads low-beam / high-beam inputs, wiper-sensor analog input, park-lamp input, central-lock switch input, flash-to-pass input, four-door electric-window switch inputs (driver-side master plus passenger reserved positions), high-beam / low-beam / front-fog feedback outputs, and carries the CAN_H / CAN_L vehicle-network bus plus LIN1 / LIN2 sub-network buses. Pin 17 is AGND signal ground.

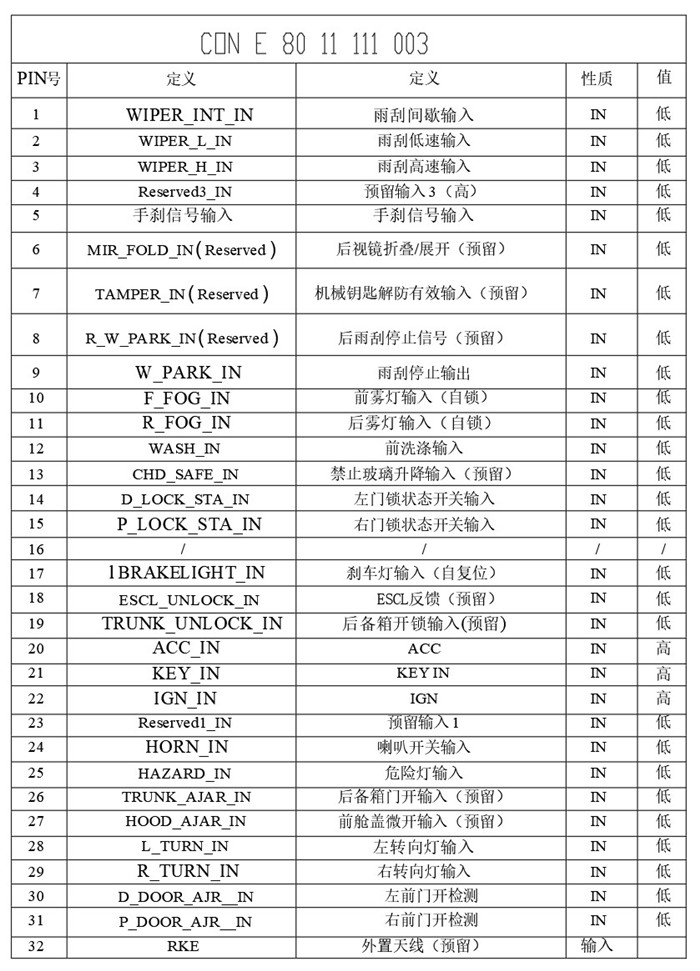

EBX-2313 CON E 32-pin input reference table — wiper switches, washer switch, door-lock status, ACC / IGN / KEY, RKE antenna
CON E — 32P input (Tyco/AMP 2020723-1). The driver-side switch-input connector. Reads wiper intermittent / low-speed / high-speed inputs, wiper park-stop output, front / rear fog-lamp switch inputs (self-locking), front-washer switch, child-safety lock-disable input, driver / passenger door-lock status inputs, brake-light switch input, ESCL / trunk-unlock feedback, ACC_IN / KEY_IN / IGN_IN ignition signals, horn switch input, hazard-switch input, trunk / hood ajar inputs, left / right turn-stalk inputs, four-door ajar detection, and the external RKE antenna pin (pin 32).

Comparison with other Youlai BCM modules

The EBX BCM family covers two main architectural patterns — pure-logic BCM versus BCM with integrated fuse / relay carrier — and two main voltage classes:

ModelPatternVoltage classHarnessFootprintTypical use
EBX-2313Pure-logic BCM12 V or 24 V (per program)5 conn / 100 PIN138 × 170 mmLight commercial truck cab
EBX-953BCM + integrated fuse/relay24 V (18–32 VDC)9 conn / ~145 PIN285.8 × 159.8 mmHeavy truck (one box on harness)
EBX-2305Pure-logic BCM + integrated 433.92 MHz RKE/PKE12 V (9–16 VDC)3 conn / ~120 PIN (J1/J2/J3)Compact new-energy classNew-energy vehicle smart-key BCM

The EBX-2313 is the right choice when a light commercial-truck program already has its own power distribution box and only needs the BCM logic on a compact cab-mount footprint. For a heavy-truck program that wants one box covering both BCM logic and fuse / relay routing, the EBX-953 is the closer match. For a new-energy commercial vehicle with on-module RKE / PKE smart-key, the EBX-2305 is the closer match.

Manufacturing & testing

Built under IATF 16949 with APQP project planning and a PPAP package available for OEM programmes. Every unit is end-of-line functional-tested before packaging — CAN / LIN bus health, current draw and the full lighting / locking / window / wiper / horn output matrix are checked against the production test plan. Environmental validation and EMC pre-compliance screening in our in-house lab is run when the programme requires it.

How to ask

The EBX-2313 belongs to the Smart Control Modules family. To request the harness drawing, the per-pin signal map or a PPAP package, please use the contact page with your target vehicle programme, expected annual volume and key technical requirements (target voltage class, CAN / LIN protocol family, RKE frequency, IP rating, working temperature, connector preference). Drawings welcome.
