Heavy-Truck TPMS: Catching a Slow Leak Before It Becomes a Blowout

Learn how heavy-truck TPMS sensors send tyre data to the cab, when to choose valve-stem or clamp-mount sensors, and what to confirm before requesting a supplier quote.

Buyer Guide ~11 min read

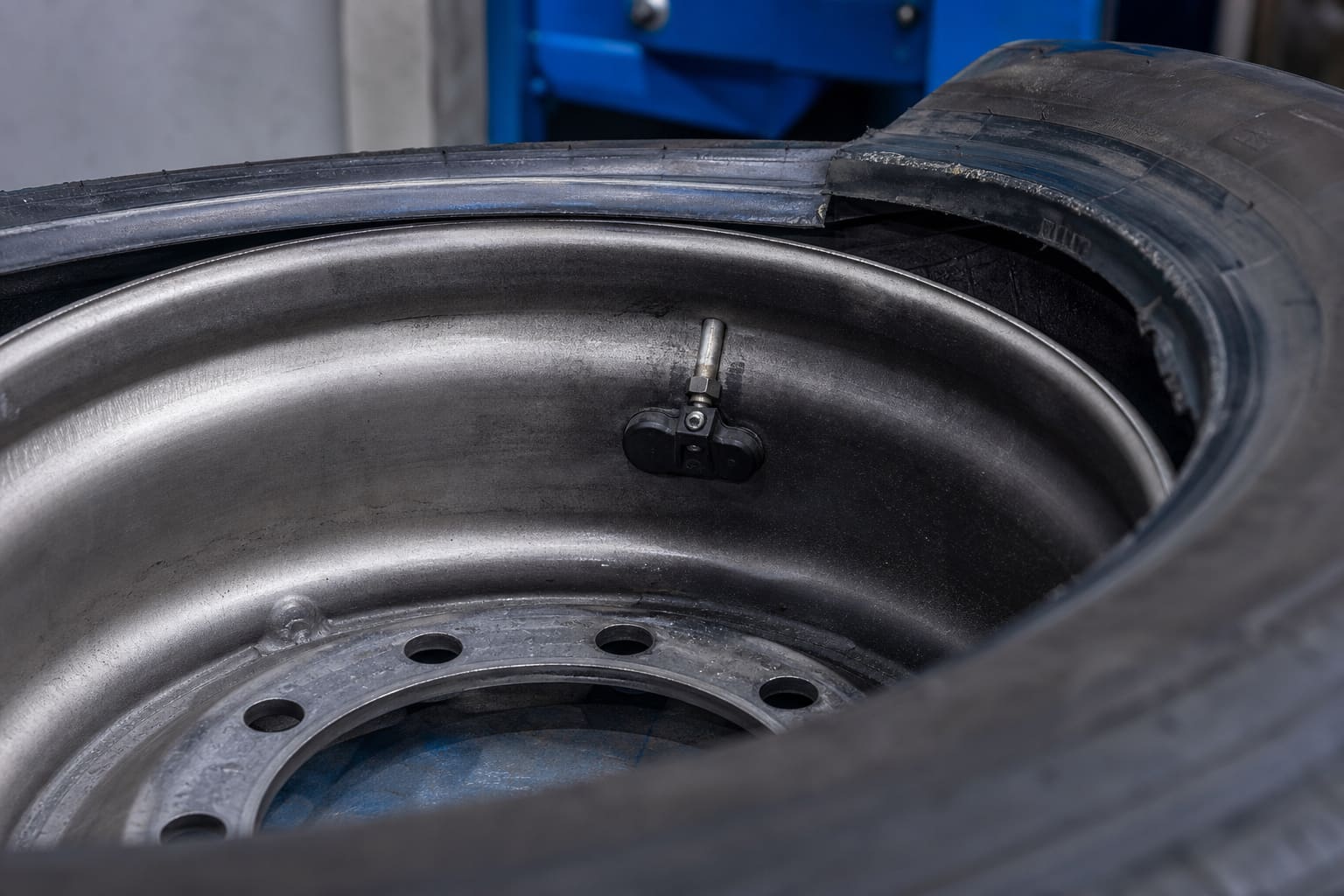

Demounted heavy-truck wheel rim with the tyre bead pulled aside, showing a valve-stem TPMS sensor mounted inside the rim at the valve base
A valve-stem TPMS sensor installed on the inner side of a demounted heavy-truck rim — wheel-side sensors like this sit inside the tyre cavity and transmit per-wheel pressure and temperature over RF to a cab-side receiver.

A tyre on a loaded heavy truck holds far more energy than a car tyre. It runs at higher pressure, carries a much greater load, and turns for ten or twelve hours a day across hot tarmac. When one of those tyres loses pressure slowly, the driver usually cannot feel it from the cab; by the time the tyre is visibly low it is already overheating, and an overheating tyre on a long descent is how a blowout starts. A tyre-pressure monitoring system, or TPMS, is the layer that watches every wheel continuously and puts the warning in front of the driver while there is still time to act.

This guide is the version of the TPMS conversation we have with OEM engineering buyers during project scoping, written down. It assumes you are specifying a system for a truck, bus, trailer or machine — where the wheel count is high and the duty cycle is unforgiving — rather than fitting an after-market kit to a passenger car.

1. What a TPMS actually does on a commercial vehicle

On a passenger car a TPMS watches four tyres and is mostly a regulatory tick-box. On a commercial vehicle the same idea has to scale, and that changes the engineering. A tractor-trailer combination can carry eighteen or twenty-two wheel positions across several axles, often in dual-tyre pairs where an inner tyre going soft is invisible from outside. The pressures are higher, the loads are heavier, and a single failure strands a load and a driver on the roadside. So a commercial-vehicle TPMS is not a convenience feature; it is fleet-economics and safety equipment.

A commercial-vehicle TPMS is responsible for:

  • Per-wheel pressure monitoring. Continuous pressure on every fitted position, including trailer axles and the inner tyre of a dual pair, so a slow leak surfaces as a reading rather than a roadside surprise.
  • Tyre temperature. Cavity temperature on each wheel, used to flag an overheating tyre or a dragging brake on a long descent before the heat turns into a failure.
  • Slow-leak and pressure-trend detection. Catching the gradual loss that a driver cannot feel, early enough to schedule a fix instead of a recovery.
  • Dual-tyre imbalance. Surfacing the case where one tyre of a dual pair carries the load the other has lost — the failure mode that destroys both tyres if it runs unseen.
  • Fleet logging. Feeding per-wheel data to a telematics unit so a fleet can manage tyre life, fuel economy and maintenance scheduling across many vehicles.

The economics behind this are concrete. An under-inflated tyre wears faster, burns more fuel, and runs hotter; catching it early protects the casing for retreading and avoids the disproportionate cost of a highway blowout. That is why a TPMS is increasingly written into commercial-vehicle programs as standard rather than an option, and why the specification deserves the same care as any other electronic subsystem on the vehicle. For where the sensor stack sits among the cabin switches and the other chassis sensors, the Switches and Sensors technical guide covers the full input layer.

2. The two halves: wheel-side sensors and a cab-side receiver

Every TPMS, no matter how many wheels it covers, is built from two halves: a population of wheel-side sensors and a single cab-side receiver. Understanding how data moves between them is what turns a vague "we want tyre monitoring" into a specification a supplier can build.

Multi-axle TPMS system architecture A modular system architecture diagram in three columns. On the left, wheel-side TPMS sensors are grouped by steer axle, drive duals and trailer axles, each measuring pressure, temperature and acceleration at the wheel. In the centre, all groups report over a 433.92 megahertz frequency-hopping RF layer that filters by paired sensor ID. On the right, one EBX-957 receiver decodes the paired wheel IDs and publishes the whole vehicle on a single CAN reporting channel, which is read by the instrument cluster, body control module and telematics unit. Multi-axle TPMS system architecture Wheel groups report over RF; one receiver maps each wheel ID and forwards the vehicle state over CAN. Wheel-side TPMS sensors 433.92 MHz RF collection Cab-side reporting Steer axle front wheel positions Drive duals inner + outer tyres Trailer axles scales with axle count 433.92 MHz frequency-hopping RF filters by paired ID EBX-957 receiver decodes paired wheel IDs pressure · temperature 1 × CAN reporting channel Read on the CAN bus by Cluster · BCM · telematics
Wheel-side TPMS sensors send tyre pressure and temperature data over 433.92 MHz RF to one EBX-957 receiver, which forwards the vehicle status over CAN to the cluster, BCM or telematics unit.

The pieces work like this:

  • The wheel-side sensor sits inside or on each wheel and samples three things: tyre-cavity pressure (the primary signal), cavity temperature, and acceleration. It transmits short RF bursts at a regular reporting interval while the wheel is rotating, and drops to a low-rate watchdog while the vehicle is parked.
  • Acceleration earns its place by acting as a wake-up and a "wheel rotating" qualifier. The sensor stays in deep sleep when the truck is parked and only reports at the full rate once it detects motion, which is what stretches the battery across years rather than months.
  • The RF link is frequency-hopping on the 433.92 MHz band. The hopping pattern is what lets a yard full of parked trucks avoid cross-talk: each receiver filters for its own paired sensors and rejects the neighbours' transmissions.
  • The cab-side receiver demodulates the bursts, deduplicates them against the paired sensor IDs learned at commissioning, and pushes the per-wheel readings onto one CAN reporting channel. The EBX-957 TPMS receiver is the Youlai unit for this role: a 24 V, IP67 module on a single Deutsch DT06-4S connector with one CAN output.
  • The consumer — instrument cluster, body control module or telematics unit — subscribes to those CAN messages and presents the per-wheel state. The cluster side of that handoff is covered in the instrument cluster guide.

The clean separation between the two halves is what makes the system flexible: the wheel-side population can change — more axles, a swapped trailer, a different rim that needs a different sensor mount — while the cab-side receiver and the CAN interface stay the same.

3. Valve-stem versus clamp-mount sensors

The first real choice in a TPMS specification is how the sensor attaches to the wheel, because that is driven by the rim, not by the electronics. Youlai builds the heavy-truck sensor in two mechanical variants that share the same RF link, the same pressure / acceleration / temperature payload, the same 5–8 year battery target and the same receiver pairing flow. Only the attachment changes.

SensorHow it attachesWhen it fits
Valve-stem Sits on the wheel's valve stem inside the tyre, held by an M5 stainless drop-resistant retaining screw. No external antenna; nothing protrudes outside the rim, and the sensor is balanced as part of the wheel. The standard route for trucks, buses, trailers and multi-axle commercial vehicles whose rims take a conventional metal valve. Entry point is the YDK-902 valve-stem TPMS sensor.
Clamp-mount Clamps to a chosen point inside the rim or wheel-well, with an external whip antenna routed into the cavity so the RF link stays clear of the rim-metal shadow. Programs whose wheels do not accept a valve-stem sensor — heavy mining wheels with non-standard valve geometry, special trailer rims, and drop-centre wheels with cooling fins. Example: the YDK-903 clamp-mount TPMS sensor.

The practical reason to keep both variants on one protocol is fleet operation. An operator running a mixed wheel population — standard rims on the tractor, non-standard rims on a mining trailer — can fit the valve-stem variant where it suits and the clamp-mount variant where it does not, and still run a single TPMS protocol against a single in-cab receiver type. The wheel-by-wheel ID coding is what tells the receiver which axle and which position is reporting, so the driver sees "inner tyre, drive axle, left" rather than an anonymous low-pressure flag.

4. The envelope that separates a truck TPMS from a car kit

A wheel sensor lives in one of the harshest spots on the vehicle. It is sealed inside a tyre that heats and cools through a wide range, spun at speed, and expected to keep transmitting for years without service. The environmental envelope is where a real commercial-vehicle TPMS earns its specification, and it is the part buyers most often leave too loose.

  • In-tyre temperature. The sensor sees the full tyre-cavity range, so the working specification runs to roughly −40 to +125 °C — far wider than a cabin device. A sensor rated only to automotive ambient will not survive inside a hot tyre on a long summer haul.
  • Battery life. The sensor is not wired, so battery life is the service interval. A quiescent current of around 1 nA between transmissions, with the acceleration sensor gating the full-rate reporting, is what delivers the 5–8 year target on a typical commercial duty cycle of roughly 8–12 hours of running a day. That number is a specification line, not a marketing claim, because it sets when the fleet has to schedule sensor service.
  • Sealing and vibration. The wheel-side sensor is sealed to IP66 in a glass-filled polyamide housing to take water, dust and the constant in-wheel vibration; the cab-side receiver is sealed to IP67 and fully potted so it can sit behind the dash or under-chassis. Neither is an indoor-electronics rating.
  • RF anti-cross-talk. Frequency-hopping on the 433.92 MHz band is what keeps a fleet of trucks parked in the same yard from reading each other's tyres. The receiver filters for its paired sensor IDs and rejects the rest, so this behaviour is part of the brief, not an accident of the radio.

The receiver side has its own envelope: an 18–32 VDC supply that drops cleanly into 24 V truck wiring, a −30 to +85 °C working range, and EMC immunity for a cab full of switching loads. A TPMS receiver reads radio and reports on CAN, so it is an EMC victim on both ports — the immunity profile belongs in the specification alongside the pressure range.

5. How to write a TPMS specification

A TPMS requirement a supplier can quote against, rather than guess at, covers five things. Skipping any one of them is what turns a quotation into a round of clarification emails.

  1. Wheel count and axle layout. How many positions, across how many axles, including trailer axles and dual-tyre pairs. This sets the sensor quantity and the per-position ID map the receiver has to learn.
  2. Pressure range and alarm thresholds. The operating pressure for the tyres in use and the low-pressure, high-pressure and high-temperature thresholds you want surfaced. Commercial tyres run at very different pressures from passenger tyres, so this cannot be inherited from a car specification.
  3. Sensor mount style. Valve-stem, clamp-mount, or a mix across the wheel population — driven by the rims on the actual vehicle, as in section 3.
  4. Receiver interface. Supply voltage (12 or 24 V), connector, and the CAN message catalogue the cluster, BCM or telematics unit expects — which messages carry which wheel, at what rate. With the message map agreed up front, the receiver moves to integration as a configuration rather than a custom development.
  5. Environmental and battery-life target. Working temperature, IP rating, and the battery-life service interval the fleet plans around, plus any altitude or salt-spray exposure the route demands.

From a sourcing perspective, the CAN message catalogue is the line buyers leave implicit and regret. A receiver can map almost any fleet, but only if the OEM supplies the message-to-wheel map and the reporting rates. Provide that early and the system pairs against your fleet plan instead of stalling in clarification.

6. What to look for in a TPMS supplier

A TPMS carries a safety function and stays on the vehicle for years, so the supplier questions that matter are about capability and support, not headline price.

  • Quality system in hand. Ask for the IATF 16949 certificate and what the PPAP package contains. Youlai manufactures under IATF 16949 with a PPAP package on program handoff. Treat any verbal "automotive grade" claim without a certificate number as marketing.
  • RF and battery-life evidence. The two numbers that decide whether a TPMS is fit for fleet service are the frequency-hopping anti-cross-talk behaviour and the battery-life figure. A capable supplier states both as specifications and can explain the deep-sleep design behind the battery number.
  • EMC and environmental capability. Confirm in-house EMC pre-compliance and environmental testing — cold-chamber, salt-spray, vibration — rather than outsourced-only validation. Youlai validates in an in-house environmental laboratory with EMC pre-compliance equipment.
  • Mixed-fleet and receiver compatibility. The most useful suppliers offer both sensor mount styles on one protocol and one receiver, so a mixed wheel population runs as a single system. Ask whether valve-stem and clamp-mount sensors pair to the same receiver SKU before committing to a fleet rollout.
  • Region-specific approvals. Because a TPMS sensor is a radio transmitter, market approvals such as e-Mark / ECE for Europe, SASO for the GCC and FCC for North America are available upon project requirement, not blanket-claimed across the catalogue. An honest supplier separates what it holds in hand from what it runs on a project basis.

If your search is really for a tyre-pressure-monitoring manufacturer or OEM supplier rather than how the technology works, that is a sourcing conversation rather than an engineering one. The Youlai OEM manufacturing & IATF 16949 quality profile covers the quality system and manufacturing footprint, and the contact page reaches the project team directly.

Questions you will be asked at RFQ stage

  • MOQ and samples. A standard sensor and receiver pairing can usually move to samples quickly; a custom ID-coding scheme or a bespoke CAN catalogue follows the program timeline. Sample quantities are agreed per program.
  • Lead time. Driven mostly by how much is configuration versus custom development, and by connector and bracket tooling where the receiver mounting is bespoke.
  • PPAP timeline. The IATF 16949 PPAP package (drawings, BOM, control plan, FMEA, dimensional and test reports) is prepared on program handoff.
  • Customisation scope. Per-wheel ID coding, the CAN message catalogue, the sensor mount mix and the receiver connector are routine configuration items, not exceptions.

7. Suggested next step

If you are scoping a TPMS for a commercial-vehicle program, the most useful things to bring to a first conversation are the wheel count and axle layout, the operating pressure range with the alarm thresholds you want, the sensor mount style your rims demand, and the CAN message catalogue the cluster or BCM expects. That lets us pair the YDK-902 or YDK-903 sensors with the EBX-957 receiver against your fleet plan, or tell you honestly where a custom configuration is needed. For how the sensor stack fits with the cabin switches and the rest of the chassis sensors, the Switches and Sensors technical guide covers the full input layer.

For the sensor-to-receiver pairing protocol, a wheel-installation drawing or a multi-axle fleet configuration against your program, please use the contact page or message +86 134 6767 4786 on WhatsApp. Typical reply within 24 hours during China business hours (UTC+8).

FAQ

What is the difference between valve-stem and clamp-mount TPMS sensors?

A valve-stem sensor sits on the wheel's valve stem inside the tyre, held by a retaining screw, with no external antenna. A clamp-mount sensor attaches to a chosen point inside the rim or wheel-well and routes an external whip antenna into the cavity so the RF link works even where rim metal would shadow it. The valve-stem style (such as the YDK-902) is the standard route for trucks, buses and trailers with conventional metal valves; the clamp-mount style (such as the YDK-903) is for non-standard mining wheels, special trailer rims and drop-centre wheels whose geometry does not accept a valve-stem sensor. Both speak the same 433.92 MHz protocol to the same receiver, so a mixed-wheel fleet runs one TPMS protocol across both.

How does a TPMS reading reach the dashboard?

Each wheel-side sensor samples pressure, temperature and acceleration and transmits short bursts on a 433.92 MHz frequency-hopping RF link. A cab-side receiver such as the EBX-957 demodulates those bursts, filters out neighbouring vehicles' transmissions using the frequency-hopping pattern, deduplicates the data against the paired sensor IDs, and forwards the per-wheel measurements onto the vehicle CAN bus over a single reporting channel. The instrument cluster, body control module or telematics unit subscribes to those CAN messages and shows the per-wheel state to the driver or the fleet back-end.

What do I need to send a supplier to quote a TPMS?

Five things move a TPMS quote fastest: the wheel count and axle layout, including trailers and dual-tyre positions; the operating pressure range and the alarm thresholds you want; the sensor mount style (valve-stem or clamp-mount); the receiver interface, meaning the supply voltage, connector and the CAN message catalogue the cluster or BCM expects; and the environmental and battery-life target. With those a supplier can pair an existing sensor and receiver against your fleet plan or tell you where a custom configuration is needed.
