Heavy trucks and tractor-trailer combinations put long harnesses, high load counts, continuous chassis vibration and long service lives into one platform. Most global heavy-duty programmes use a nominal 24 V architecture; some 12 V programmes remain, so voltage cannot be inferred from vehicle size or destination market alone. Youlai supports global OEM programmes with four product families — power distribution, smart control modules, switches and sensors, and displays — under an IATF 16949 certified quality system in Changsha, China.
This page is the horizontal view: how those four families fit together on one truck. If you already know which box you need, the buyer guides linked at the end of each section go deeper into individual module selection.
1. How the electrical system on a heavy truck is organised
Whatever the cab or the market, a heavy-truck programme resolves into two paths built on the same hardware. Power leaves the battery, is protected once at high current, is split into circuits at a central box and reaches lamps, motors and actuators. Requests and vehicle state travel separately: cab switches and body-function sensors report to the BCM, which commands those output channels and publishes only the body content the programme maps onto the chassis backbone. The control layer is where the two paths meet, which is why it is the most expensive thing to specify late. The same two paths, read at platform level rather than for one vehicle type, are set out in the commercial vehicle E/E architecture guide.
System architecture · navy = in-vehicle control · teal = switched power and the external vehicle boundary
Power path
- Battery main feedBolt-down high-current fusing right at the battery box
- Central distributionFuses, relays and the harness interface in one enclosure
- Switched outputsRelay or high-side driver channels, commanded by the control layer
- LoadsLamps, motors, actuators and heaters across cab and chassis
The BCM joins both paths: it reads cab inputs and commands the switched outputs. Cluster and switch panels issue requests; they do not carry load current here.
Signal path
- Cab switches and sensorsDash panels, stalk and button requests, plus body-function sensing
- Cab hubBCM / body controlOwns body I/O and local LIN; drives the switched outputs above. Engine and brake authority stay outside.
Gateway decision · cab / body content crosses onto the chassis network only where the programme maps it
Chassis backbone — commonly SAE J1939 · driveline and chassis nodes publish; cluster and telematics subscribe to agreed content
- Engine and transmissionSpeed, load, temperatures, torque and gear state
- ABS / EBSBrake and stability — chassis peers, not BCM subordinates
- Cluster, HUD and telematicsConsume and forward agreed states; request authority set separately
Camera videoSeparate link into the display — not J1939 content
Outside the chassis backbone
Commercially, the sequence in which these decisions are frozen matters as much as the topology, because it is the order in which specification errors get expensive. A fuse box chosen before the load list is complete gets re-tooled; a BCM chosen before the I/O count is frozen runs out of high-side drivers halfway through validation; a cluster chosen before the bus content is agreed shows the wrong indicators. On a truck programme the harness drawing and the load list are the two documents that decide most of the hardware, and both belong at the start.
On a tractor-trailer programme, freeze the vehicle boundary at the same time. Trailer lighting, rear sensing and auxiliary feeds need a defined connector, supply allocation, diagnostic ownership and disconnected-trailer state. If those responsibilities are left between the tractor and body-builder teams, the late change usually lands in the harness and the software together.
The second thing that shapes a truck build is where on the vehicle a part lives. The same electrical function needs a completely different enclosure depending on whether it sits behind the dash or hangs off a chassis rail:
Dry, accessible
Cab and under-dash
Cabin fuse panels, central distribution, BCM, switch panels and the cluster. IP54 is a common reference for a protected behind-trim position rather than a default approval: the requirement follows the actual enclosure, the ingress path and the validation plan, and serviceability often weighs as heavily as sealing.
Wet, hot, exposed

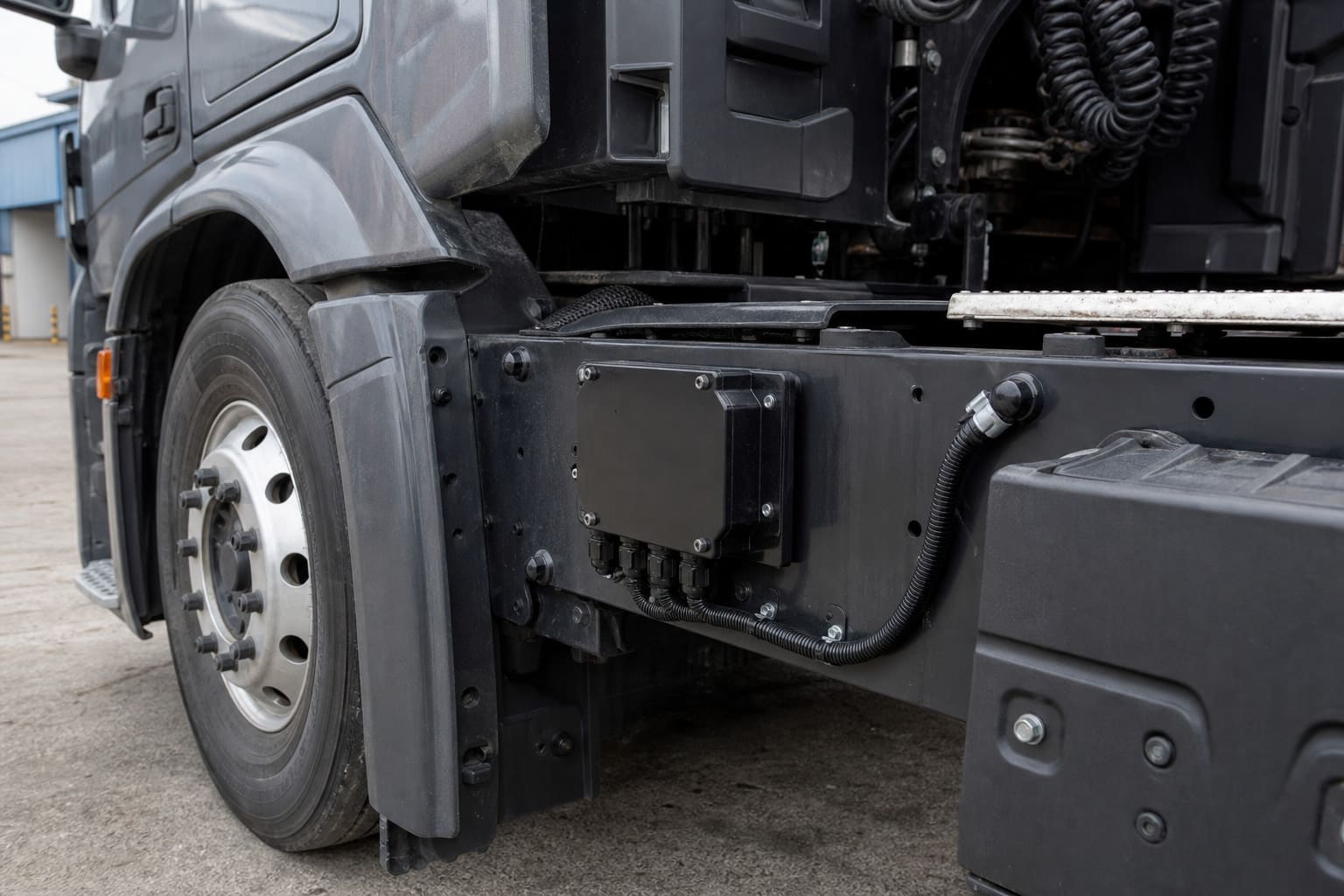

Chassis rail and engine bay
Road spray, wash-down and stone impact along the rail; radiator-side heat and daily thermal cycling once you move inboard, which sets the ambient rating and any derating long before the IP number does. IP65 may cover spray exposure; IP67 covers dust and temporary immersion, not pressure washing. High-pressure jet duty must be specified and validated separately.
High-current, corrosive
Battery box
The first protection point after the battery: bolt-down studs and cartridge fuse blocks rather than blade fuses. The box shields against direct spray but not against acid vapour, road salt or the vibration coming straight off the rail, so terminal plating, torque retention and a serviceable layout belong in the specification next to the current rating.
Rotating, unsprung
Wheel ends and axles
Tyre-pressure sensors and suspension-height sensing, where the only practical link back to the cab is radio or a long sensor loom. Vibration arrives unsprung rather than through the cab mounts, and a wheel-mounted sensor carries its own battery — so service life and receiver placement are specification items, not fitting details.
Coupled by hand, salted
Trailer interface
The connector face at the rear of the tractor and the feeds behind it. Coupled and uncoupled by hand in spray and road salt, so mating-cycle life, contact plating and lid retention sit alongside the ingress rating. This is also the one position where the enclosure question and the commercial question are the same question: supply allocation, diagnostic ownership and what the tractor does with no trailer attached are settled here, and settling them late lands in the harness and the software at once.
2. Power distribution: from the battery box to the chassis rail
Distribution hardware is the part of a truck's electrical system that gets specified first and changed least. The NBX series covers the chain in three steps.
At the battery. The NBX-980 is a 9–36 VDC first-stage module with separate main feeds, bolt-down fuse blocks and six protected outputs. Its IP53 enclosure belongs in a battery box, cab or protected engine-bay position, not on an exposed chassis rail.
In the cab. Accessible blade-fuse panels scale from 12 ways on NBX-955 to 15 on NBX-981 and 17 on NBX-2301. These IP54-class 12 / 24 V references suit protected behind-dash positions.
Centrally. NBX-957 is a 9–32 VDC body-mounted reference with 36 fused circuits and 25 relays; its circuit map is configured against the OEM harness. Higher load counts scale by capacity and installation zone:
| Model | Circuits | Where it fits |
|---|---|---|
| NBX-958 | 32 | Medium and heavy commercial vehicles, protected body cavity. |
| NBX-970 | 42 | High-feature truck and bus platforms; optional sealed connector exit for chassis-near placement. |
| NBX-972 | 65 fused + 25 ISO relays | The highest-density central PDB: cabin, under-dash and dry zones only — it is a vented IP4X enclosure, not a sealed one. |
Size the box from the frozen load list plus 10–15 % spare ways, then match sealing to the mounting zone. NBX-969 and NBX-968 are IP65 references; NBX-971 is IP67. High-pressure cleaning needs its own jet test because IP67 alone does not cover it.
If the box also owns timed circuits, interlocks or bus-commanded outputs, NBX-952 combines relays, fuses and CAN body-control logic in an IP65 enclosure; NBX-954 is the passive counterpart. Both reference builds are rated −30 to +85 °C and sine-sweep tested over 10–500 Hz.
Going deeperThe fuse box buyer guide covers which published circuit step to land on and the fuse format on each rail, relay vs fuse vs junction box covers which enclosure type you actually need, and the power distribution selector lists every NBX model side by side.
3. The control-module layer: centralised or distributed
Should control be centralised or distributed?
Choose from total installed cost and fault containment, not ECU price alone. Centralised control reduces module count and duplicated housings, but creates a wider failure domain and pulls more load wiring to one location. Distributed control shortens high-current runs and isolates door, lighting or wiper faults; the trade-off is more connectors, network nodes and software interfaces. A mixed architecture normally keeps cross-vehicle state in one BCM and places dedicated controllers beside long or high-current circuits.
EBX-954 is the high-I/O, pure-logic 24 V central reference. EBX-953 integrates a fuse and relay carrier with roughly 110 I/O and 48 protected outputs. EBX-2160 and EBX-2050 are further integrated power-and-logic references. Final connector and output allocation follows the load list.
For the distributed route, group modules by the fault domain the workshop should be able to isolate:
- Tractor and trailer lighting: EBX-2164 separates tractor-side and trailer-side supply rails. Its 50 pins are the total across an 18-pin drive connector and a 32-pin input / CAN connector, not one 50-way plug.
- Cab mechanisms: EBX-2163 owns windows, mirrors and locking through two connectors totalling 44 pins (20 + 24); EBX-2208 isolates wiper control, while EBX-2207 covers central locking and the power step.
- Chassis sensing: EBX-2209 handles axle-load inputs and EBX-957 receives wheel-end tyre-pressure data. Keeping these functions separate limits a sensor fault to its own diagnostic domain.
- Access and fleet data: EBX-964 covers PEPS on 24 V cabs; EBX-2054 bridges 12 V or 24 V vehicle CAN to a 4G fleet back end.
CAN hardware does not define the application protocol: message ownership and diagnostics must be written against the OEM DBC. If a 24 V truck carries a substantial 12 V accessory branch, the EBX-2407 battery equaliser belongs in the architecture before harness release.
Going deeperWhat a heavy-truck BCM does explains the module layer function by function, BCM vs VCU vs PMU separates the three controller roles, and the smart control modules guide covers the whole EBX matrix.
4. Cab switching and sensing: what the driver touches
Most cab switches report a request to a controller rather than powering the final load. Keeping that ownership clear prevents a switch from being blamed for logic it never controlled and makes interface, feel, sealing and durability the main selection inputs.
Should a cab request use CAN, LIN or a hard-wired line?
- CAN panels collapse many dashboard requests onto one bus pair. EDK-907 combines CAN with a hard-wired backup path; EDK-2507 packages four buttons and a rotary input in an IP66 panel. Use CAN when the panel carries many functions or needs configurable icons and logic.
- LIN sub-networks suit local door functions. EDK-908 groups window, lock and mirror requests at the driver's door, while EDK-914 is the window-focused member. LIN keeps the local loom short without putting every switch on the body CAN.
- Hard-wired lines remain useful for functions that must work before the network wakes or need a simple service path. Typical examples are hazard warning (TDK-901), engine start (TDK-902 / TDK-905) and emergency cut-off (JDK-2425).
Mounting position still decides the enclosure. EDK-2010 is an IP67 four-button service panel for cab tilt, ground-level engine start / stop and hazard control in an exposed cab-side position; its sealing is about weather exposure, not ordinary window-switch use. A dash-centre part such as EDK-2006, which combines light selection and instrument dimming, has a different protection brief. Where the switch carries load directly rather than reporting a request, the current rating also becomes a primary selection input.
For wheel-end sensing, YDK-902 valve-stem and YDK-903 clamp-mount TPMS sensors pair with the EBX-957 receiver. Cab climate and automatic-light logic can use the CGQ-012A light / sun-load sensor; PEPS programmes can pair EBX-964 with the EDK-911 steering-column lock.
Going deeperCAN vs LIN vs hard-wired switching is the interface decision in full, how a CAN switch panel works covers multiplexed panels, LIN door switch panels covers the door sub-network, and heavy-truck TPMS covers tyre monitoring end to end.
5. Driver information and indirect vision
The display layer is where the rest of the architecture becomes visible to the driver, so it is specified last and depends on decisions made earlier — chiefly what the bus actually publishes. A cluster can only show what a controller sends.
For the instrument position, PBX-2202 is a compact 9–32 VDC smart-cluster reference; PBX-2301 is an 8-inch combined cluster with dual CAN-FD for high-altitude and electric platforms — the EV states it carries, and the domain behind them, are covered in new-energy commercial vehicle electronics. Head-up options separate into the windscreen-projected PBX-961 and combiner-type PBX-2203. Dashboard geometry, bus content, regulated tell-tales and sunlight performance decide the format.
When do CMS and surround-view solve different jobs?
The required field of view comes from cab geometry, trailer geometry and destination-market approval rules; it should be measured on the target vehicle rather than copied from generic blind-zone dimensions. The project-configured PBX-2050 platform is configurable for both 270° baseline and 360° all-round view applications, subject to camera count, mounting geometry and project specification; a four- to six-camera layout is the usual range for low-speed perimeter work, agreed per programme rather than quoted as a fixed coverage figure. PBX-955 is a camera-monitor mirror platform for the normal-driving indirect-vision case, with exterior cameras and cabin monitors configured per vehicle. The two systems can coexist: surround-view supports close manoeuvring, while CMS replaces defined mirror fields. UN R46 approval scope and fail-safe behaviour are confirmed for each destination market and vehicle installation.
Going deeperThe instrument cluster guide, commercial-vehicle HUD, HUD vs digital cluster and commercial-vehicle mirror systems cover this layer in detail.
6. What makes a heavy-truck specification different
Most of what separates a truck part from a passenger-car part comes down to five linked constraints. A functional match is not enough: the same module can pass behind the dashboard and fail on a chassis rail because the electrical and environmental evidence does not match the installation.
What must be validated for each installation zone?
| Constraint | How it lands in the specification |
|---|---|
| System voltage | State 12 V or 24 V explicitly, then define cranking dip, jump-start, reverse-battery and load-dump test levels. Operating range alone does not prove transient survival. High-current outputs also need thermal and duty-cycle derating at the programme's worst-case ambient. |
| Vibration | Cab, engine-bay and chassis-rail locations need different profiles and fixture orientations. NBX-952 and NBX-954 reference builds are sine-sweep tested over 10–500 Hz; that evidence must not be generalised to every central box or every mounting position. |
| Sealing by position | IP54 may suit a protected cab, IP65 addresses dust and water jets, and IP67 adds temporary immersion. IP67 does not prove resistance to high-pressure or high-temperature washing; specify that duty and its test method separately. |
| Temperature | −40 to +85 °C is common on exposed distribution hardware; many cab modules use −30 to +85 °C. Ask for powered hot and cold operation, storage limits and output-current derating, not only a headline temperature range. |
| EMC | CISPR 25 and ECE R10 are the reference frames on commercial-vehicle programmes. Youlai runs an in-house environmental and EMC pre-compliance lab; certified testing is performed at third-party accredited laboratories when the programme requires it. |
Youlai serves global OEM programmes. GCC heat and dust, Southeast Asian humidity, African road and service conditions, CIS cold climates, European compliance paths and North American 12 V conventions are examples of different inputs — not boundaries on where we work. The Middle East / GCC and Southeast Asia pages show how one catalogue is filtered for two duty cycles; every other market is specified from its own vehicle, environment and approval plan.
The other difference is programme discipline rather than hardware. Truck parts live in a build for years, so change control on connectors, MCUs and materials is part of the specification — see what to verify when sourcing OEM vehicle electronics for how IATF 16949, APQP and PPAP divide that responsibility, and IP65 / IP67 protection for how sealing claims are validated rather than asserted.
7. Specifying a heavy-truck programme
Quotes come back accurate when the request carries the facts that decide the hardware. For a truck programme that means:
What should a heavy-truck electronics RFQ include?
- Platform and electrical limits — vehicle type, 12 V or 24 V, cranking, load-dump, reverse-battery and jump-start requirements, plus any 12 V branch on a 24 V truck.
- The load list — every circuit with its current, duty and whether it is switched by relay, high-side driver or PWM. This is what sizes a distribution box and an output bank.
- I/O count and function list for the control layer, including which functions must work with the ignition off and the bus asleep.
- Bus architecture — how many CAN channels, whether CAN-FD, which application protocol (J1939 family is typical), any LIN sub-networks, and the DBC or signal list if it exists.
- Tractor / trailer boundary — connector and supply ownership, trailer detection, diagnostics, disconnected state and responsibility for body-builder or swappable-trailer interfaces.
- Mounting position and evidence per part — IP and pressure-wash duty, temperature, vibration profile and orientation, salt / chemical exposure, EMC plan and the reports required at each validation gate.
- Connector preference and the harness drawing — most re-work on truck programmes traces back to a connector or cavity assumption made without the drawing.
- Commercial programme inputs — target markets, annual and lifetime volume, prototype and sample stages, tooling ownership, PPAP level, documentation language and SOP date. These inputs decide validation depth, amortisation and delivery timing.
The OEM RFQ checklist puts this in a form you can send. Manufacturing is IATF 16949 certified with in-house environmental and EMC pre-compliance testing, and PPAP deliverables and the submission level are agreed against the customer-specific requirements and the released drawing revision.
If you are scoping the electrical architecture on a heavy-truck platform, send the load list and harness drawing and we will come back with a proposed hardware split across the four families. Use the contact page or message +86 134 6767 4786 on WhatsApp — typical reply within one business day.
