CAN vs LIN vs Hard-Wired: Which Switch Interface Does Your Vehicle Really Need?

Updated July 2026

"Send us your switch." It sounds like the simplest line in a switch enquiry, and it hides the decision that shapes the whole cab harness. A rocker that carries its own current, a window switch that talks to a door module over one thin wire, and a rotary panel that reports every button over CAN are all "switches" — but they wire differently, cost differently, seal differently and diagnose differently. Choose the wrong interface and you either overspend on bus silicon for three buttons, or you bury a twenty-function dashboard under a loom you cannot build.

This guide is the conversation we have with OEM buyers when a dashboard is being scoped. It assumes you know what CAN and LIN are as networks; the goal here is narrower and more useful — to make it obvious which interface each switch on your dash should use, so the harness, the cost and the diagnostics all land where you want them.

1. Why the switch interface decides more than the switch

A switch does two things: it senses an action, and it gets that action to whatever acts on it. The first part barely changes between interfaces — a button is a button. The second part, the interface, is what drives your bill of materials. It sets how many wires leave the dash, how much the panel costs, whether the panel can report a stuck button, and where the heavy load current actually flows.

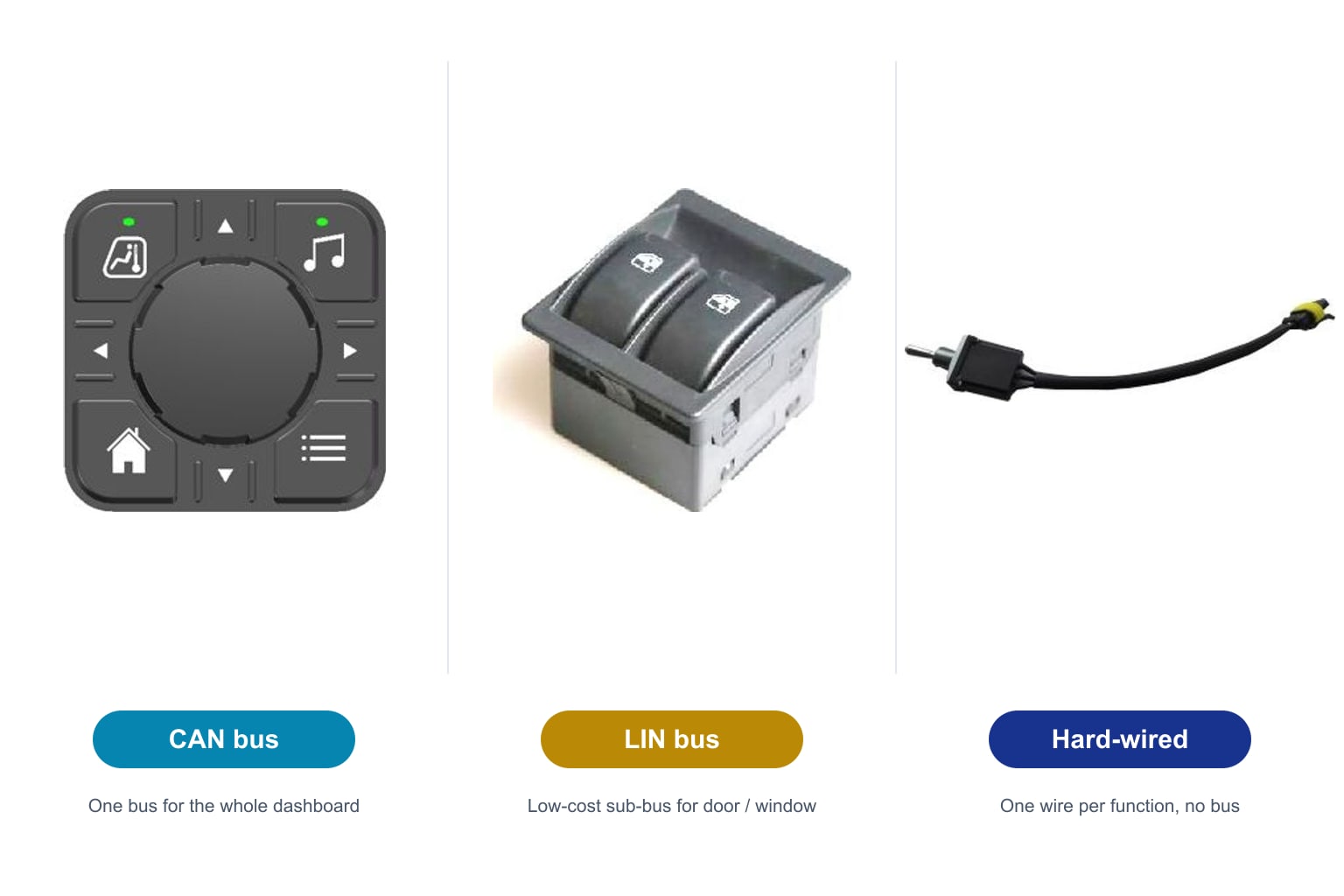

There are three answers, and they map to three questions:

• Hard-wired answers "can I keep it simple and independent?" — one wire per function, no bus, the switch either carries the load or sends a plain signal.
• LIN answers "can I cheaply cluster a handful of related switches?" — a low-speed single-wire sub-bus, ideal for a door or window group polled by a module.
• CAN answers "can I put a whole dashboard on one backbone with diagnostics?" — a fast multi-node bus for many buttons, shared data and fault reporting.

Hold those three questions against each switch on your dash and the architecture sorts itself. The next three sections take each interface in turn, then a single table lines them up.

2. Hard-wired switches: one wire, no bus

A hard-wired switch is the direct approach: each function has its own conductor, and the switch either carries the load current itself or sends a discrete on/off signal to a controller. There is no data protocol and nothing to configure, which is exactly its appeal — it works the instant it has power, independent of any network or software.

Hard-wired splits into two patterns. A direct-drive switch carries the load: the TDK-2202 12 V power-window switch drives the window motor directly at up to 25 A, and the sealed 3-position JDK-2201 toggle handles 25 A at 12 V or 15 A at 24 V over a 9–32 VDC range, self-latching, at IP67 and −40 to +85 °C. A signal switch instead sends a low-current command to a controller: the illuminated TDK-2513 round self-reset button is a momentary signal device rated for over 1,000,000 operations at IP5K2, rated to switch up to a 500 mA load rather than a heavy motor or lamp bank.

The strengths are simplicity, network independence and per-switch sealing you can push as high as the mounting needs (IP67 on the JDK-2201). The weakness is wire count: every function is its own harness run, so a big dashboard becomes a thick, heavy, fault-prone loom. That is why hard-wired stays the right answer for two cases — small switch counts, and the small number of safety cut-off functions (emergency stop, battery isolation, engine kill) that must keep working even if the bus is down, each handled by a device built for the cut-off rather than a networked button.

3. LIN switches: the low-cost sub-bus

LIN (Local Interconnect Network) is a single-wire, low-speed serial bus designed to be cheap. One master — a door module or BCM — polls a small set of slave devices over a single data line, at speeds around 20 kbit/s. That is far slower than CAN, but a window or mirror only changes a few times a second, so it is plenty, and the silicon is a fraction of the cost of CAN. LIN is the natural home for a cluster of related, non-time-critical switches.

The door is the textbook case. The EDK-914 LIN power-window switch puts window up/down and central-lock on a single LIN data line in single- or dual-button variants, at 18–32 V and IP53 for the cab interior. The richer EDK-908 door & window control switch adds mirror adjust/select and heater outputs alongside its LIN line, with five-way protection, IP54 and a −30 to +85 °C range. Both collapse a door's worth of buttons onto one thin wire back to the module.

The trade-off is that LIN needs a master to talk to — it is a sub-bus, not a stand-alone switch — and its low speed and single-wire nature suit comfort functions, not fast or safety-critical ones. It also lives in the protected cab (IP5x), not on an exposed washdown surface. Choose LIN when you have a handful of related switches near one module and want to cut the door harness cheaply. For the full door-panel decision, the power-window & door switch panel guide goes deeper on 12 V vs 24 V and direct-drive vs door-module architectures.

4. CAN switches: the diagnostic backbone

CAN (and its commercial-vehicle profile SAE J1939) is the fast, fault-tolerant, multi-master bus that runs the modern cab. Any node can talk, messages are prioritised and error-checked, and a switch panel becomes just another node reporting its buttons, and its status, to the rest of the bus. That is the decisive difference from the other two: a CAN switch can be diagnosed on the bus where the design supports it, and it shares one backbone with the display, the BCM and the rest of the vehicle.

CAN switches come in dashboard-panel and control-knob forms. The EDK-907 CAN-bus switch panel puts a whole heavy-truck dashboard's buttons on one panel at 18–32 VDC, with a 24 V hard-wire backup channel for one safety-critical key (typically the hazard function) that must survive a bus fault, four-fold protection, custom backlighting and IP53. Where a rugged single control is needed, the EDK-2507 four-button CAN rotary is sealed to IP66 on a Deutsch DT06-4S connector, vibration- and shock-rated and good for 100,000 cycles; the EDK-2403 dual-rotary CAN switch adds twin infinite-rotation knobs with a press-to-start action at IP65. For the panel-level architecture and message-matrix questions, the CAN bus switch panel guide is the companion piece.

The strength is wiring collapse plus diagnostics: a dashboard's worth of functions rides on one CAN pair instead of dozens of wires, and switch state and faults can be reported on the bus where the design supports it. The cost is the bus silicon and integration effort — overkill for a handful of buttons, worth it for a full console. CAN also seals well (IP66 on the EDK-2507), so it is the interface of choice when an exposed control still has to be networked.

5. CAN vs LIN vs hard-wired, side by side

With each interface's job clear, the differences line up. Keep this table next to a dashboard requirement — it answers what a buyer actually has to settle before naming parts.

The row that resolves most debates is "carries load current." A hard-wired switch often carries the load itself, which is why wire gauge and sealing dominate its spec. A LIN or CAN switch normally does not — it sends a command and a module switches the load, which is why its story is about data, cost and diagnostics instead. (A few bus switches do add local discrete outputs alongside the data line, such as the EDK-908; the rule is a default, not an absolute.) Read that one row and the three stop blurring.

6. How to choose the interface

The interface follows two things: how many switches a location has, and whether any of them are safety-critical or need diagnostics. Three shapes cover most dashboards.

• A few switches, or a safety cut-off. Up to about eight functions, hard-wired is simpler, cheaper and lighter than any bus. Keep emergency stop, battery isolation and engine-kill functions hard-wired regardless of what the rest of the dash uses, so they survive a network fault — using a device built for the job: a dedicated emergency-stop such as the JDK-2425 for a safety interrupt, and a battery isolator or contactor for a main cut-off (the battery feed far exceeds any signal switch's rating). A rugged bus-independent selector such as the JDK-2201 suits routine off-bus switching — aux lamps, a two-mode select — rather than the safety cut-off itself.
• A door or window cluster. When a handful of related comfort switches sit near one module, LIN collapses the door harness at low cost. The EDK-914 and EDK-908 are built for exactly this, and pair with a door module or BCM that acts as master.
• A whole dashboard, or shared diagnostics. Past eight to twelve functions, or whenever the panel must share data with a display or BCM, CAN wins on wiring and fault reporting. An EDK-907 panel carries the whole dash on one pair with a backup channel; an EDK-2507 rotary handles an exposed, sealed control on the same bus.

Most real vehicles mix all three: a CAN backbone across the cab, a LIN sub-bus inside each door, and a few hard-wired safety switches that answer to no network. The skill is drawing the lines in the right place, not forcing everything onto one interface. Once the split is clear, use the Switches & Sensors selector to compare the published parts by type, interface and sealing before opening the individual model pages.

7. Supplier and integration questions

Because most dashboards mix all three interfaces, the questions that matter are as much about how the panel fits your architecture as about any single switch.

• Protocol and message matrix. For a CAN panel, confirm plain CAN vs SAE J1939, the baud rate, and whether the supplier will supply a message matrix (DBC). A supplier that ships CAN, LIN and hard-wired switches will discuss where each function should sit without hesitation.
• Backup / fail-safe channel. Ask how safety-critical functions behave if the bus drops. The EDK-907's 24 V backup channel is one answer; a parallel hard-wired circuit is another. Insist the fail-safe functions are named explicitly.
• Current path. For direct-drive switches, confirm the rated load (up to 25 A on the TDK-2202 / JDK-2201) and the wire gauge and voltage drop that implies — heavy current on the dash harness is a design decision, not a detail.
• Sealing to the mounting position. Match IP rating to where the switch lives: IP67 (JDK-2201) or IP66 (EDK-2507) for exposed positions, IP5x LIN panels for the cab interior only. IP67 covers temporary immersion, not continuous high-pressure wash-down — for a washed-down or steam-cleaned position confirm the mounting against an IP69K or project-specific spec.
• Quality system and approvals. Ask for the IATF 16949 certificate and PPAP contents. Youlai manufactures under IATF 16949 with a PPAP package on program handoff and validates in an in-house environmental laboratory with EMC pre-compliance equipment. Region approvals (e-Mark / ECE, SASO, FCC / DOT) are available upon project requirement rather than blanket-claimed.

Questions you will be asked at RFQ stage

• How many functions, and which are critical? The switch count and the fail-safe list set the interface split before anything else.
• 12 V or 24 V, and any direct loads? Voltage and the highest switched current decide the direct-drive vs command-only choice.
• Mounting position and sealing. Cab interior vs exposed / washdown sets the IP class and connector (e.g. Deutsch DT06-4S on the EDK-2507).
• Backlight, legend and customisation. Button legends, backlight colour and panel layout are routine variants on the published parts, not exceptions.

If you are scoping a dashboard and still deciding how to split it, the most useful things to bring to a first conversation are your switch list, your 12 V / 24 V system and which functions must survive a bus fault. That lets us map the requirement onto the hard-wired JDK-2201, the LIN EDK-914 or the CAN EDK-907 class, and advise where a custom panel fits. For the wider switch range, the Switches & Sensors technical guide is the reference above these parts.

For drawings, a panel-split review or a sample request against your vehicle program, please use the contact page or message +86 134 6767 4786 on WhatsApp. Typical reply within 24 hours during China business hours (UTC+8).
