Construction Machinery Electronics for Excavators, Loaders and Cranes

Excavators, wheel loaders, cranes, rollers and graders share a pattern that separates them from trucks: the electrical system is mostly there to serve a hydraulic system. Engine and pumps run continuously through the shift, cylinders and motors do the useful work, and the electronics meter oil, protect circuits, read machine state and tell the operator what is happening. Youlai supplies these programmes from four product families — power distribution, smart control modules, switches and sensors, and displays — under an IATF 16949 certified quality system in Changsha, China.

This page is the horizontal view: how those four families fit together on one machine. If you already know which box you need, the buyer guides linked at the end of each section go deeper into individual module selection.

1. How the electrical system on a machine is organised

The topology looks like a commercial vehicle — battery, protection, distribution, control layer, bus, display — but the far end differs. Truck outputs are mostly lamps, motors and heaters that are either on or off. On a machine a large share of the output channels are proportional: they meter current into hydraulic valve solenoids, and the valve turns that current into flow or pressure rather than a simple on or off. Fine control at the lever starts there, even though the force finally delivered at the cylinder is set by circuit pressure and cylinder area. That single difference reshapes the control-layer specification and, with it, the harness and the connector count.

Two boundaries decide most of the cost on a machine programme, and neither is electrical. The first is where the base machine ends and the attachment begins: breakers, tilt-rotators, quick couplers and grapples need supply, control channels and often their own operator interface. Settle early which auxiliary functions the base machine owns, how many spare proportional channels it reserves and who owns the connector at the coupler — left until after harness release, that question lands in the loom, the software and the display at once. The second is machine class: a 5-tonne mini-excavator, a 30-tonne tracked excavator and a single-drum roller share neither load list nor duty cycle even when they share a parts catalogue, and voltage cannot be inferred from size — 12 V is common on smaller machines, 24 V on larger ones and on machines built from commercial-vehicle driveline components.

Beyond those two, where on the machine a part lives decides its enclosure as much as its function does:

2. Power distribution: sealed boxes in an unsealed environment

Distribution hardware is specified first and changed least, and on a machine it is the component most often under-specified — a box that is perfectly correct behind a truck dashboard is being asked to do a different job on an excavator deck, where dust ingress, wash-down and radiator heat all act on the same enclosure. The NBX series covers the chain in three steps.

At the battery. The NBX-980 is a 9–36 VDC first-stage module with an M8 (24 V) and an M6 (12 V) main input, bolt-down positions taking Littelfuse MEGA (40–200 A) and MIDI (30–150 A) elements, and six protected M5 outputs. Its IP53 enclosure needs a protected battery compartment, not an open deck position.

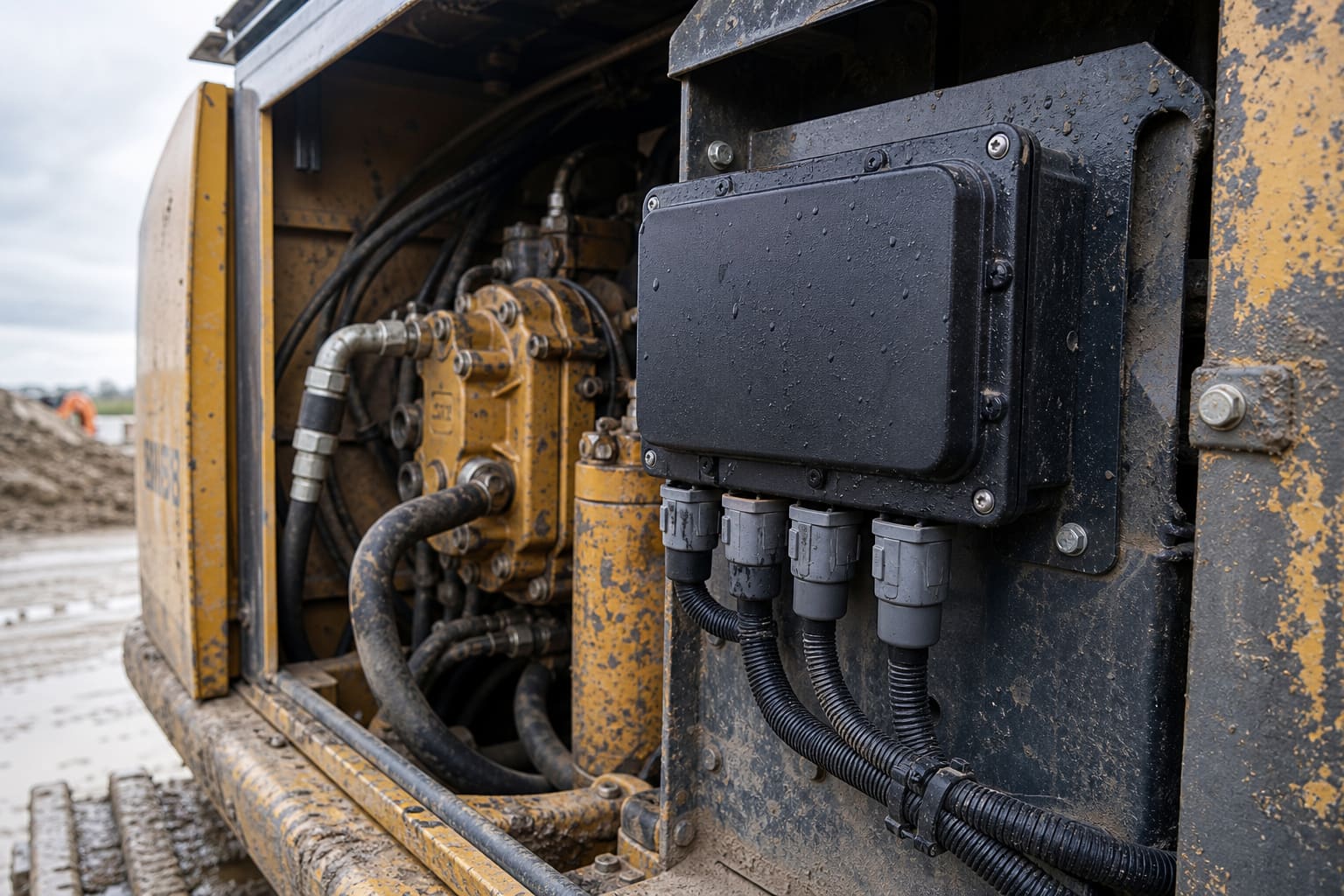

Near the engine or cab post. This is the workhorse position, and where sealing stops being optional: fan-drawn dust, radiator heat and an end-of-shift wash lance all arrive at the same enclosure. The sealed references below are chosen by mounting zone rather than by machine type. For a small auxiliary group, NBX-2404 is a 12 / 24 V six-channel relay box, but at IP54 it belongs behind a panel or under a cover rather than in the open positions described above.

Where a machine carries a truck-style body. Mixers, service bodies and crane carriers on a commercial-vehicle chassis can use the higher-density central boxes: NBX-952 at IP65 with twelve ISO relays, 28 mini-blade fuses and on-board CAN body-control logic, or the passive NBX-954. Both reference builds are rated −30 to +85 °C and sine-sweep tested over 10–500 Hz.

Size the box from the frozen load list plus 10–15 % spare ways, then match sealing to the mounting zone. The step most often skipped is agreeing the cleaning regime: IP67 covers dust and temporary immersion but does not prove survival under a lance at close range, so machines that are jetted daily need their own test and acceptance criterion.

Going deeperThe excavator power distribution box guide covers what changes inside the box on a machine, IP67 waterproof distribution boxes covers sealing construction, relay vs fuse vs junction box covers which enclosure type you actually need, and the power distribution selector lists every NBX model side by side.

3. The control layer: driving hydraulics, not just lamps

A machine controller is judged on its output stage and its analogue front end. Ask how many channels can hold a commanded current under PWM, what each is rated at continuously, and what the module does when a coil goes short or open — because on a machine a stuck output is a moving cylinder, not a lamp left on.

Should hydraulic outputs come from the body controller or a dedicated power module?

Split the question by channel type, not by module count. On / off body functions — work lights, beacons, wipers, fans, heaters — belong on relay and high-side channels and can share a central box. Proportional valve control belongs on a module built for it, because the useful specification is current accuracy and thermal headroom per channel rather than the output count on the datasheet.

EBX-2050 is the integrated reference for that role: 9–36 VDC, IP54, one CAN channel running SAE J1939, twelve PWM outputs, seventeen digital inputs, 24 high-side driver outputs, and twelve fuses and four relays in the same housing. EBX-2052 is the higher-current sibling at IP66 — sixteen PWM high-side channels in 15 A and 9 A groups, fifteen digital inputs and seven driver outputs including two rated 50 A, on two SAE J1939 CAN buses. To extend an existing controller instead, EBX-962 adds eight PWM high-side outputs and four configurable digital or analogue inputs over one CAN channel at IP65.

For the sensor-rich end of the machine, EBX-2510 is an 18–36 VDC controller with eight configurable analogue inputs accepting 0–5 V, 4–20 mA or 0–500 Ω sensors, a 0–10 kHz frequency input, thirteen digital inputs, 23 protected outputs, and eight relays and 39 blade fuses integrated. That analogue mix is a machine signature in itself. Catch the mounting constraint before the harness drawing does: the IP20 enclosure rated −30 to +80 °C belongs inside the cab, not on the deck.

Three further roles recur. Where distribution and logic should stay one serviceable unit, EBX-2160 is a 16–32 VDC central module carrying eleven main relays and 60+ blade fuses, with J1939 network management and UDS (ISO 15765) diagnostics. On the body side of dump trucks, tippers and mining vehicles, EBX-963 handles top cover, tail gate, lift and PTO control at IP53; machines built on a commercial-vehicle chassis can use a conventional body controller unchanged — EBX-954 or EBX-953. For attachments needing bidirectional actuation rather than proportional flow, EBX-951 drives eight DC motors at IP67, commanded over local hard-wired I/O rather than a bus.

CAN hardware never defines the application layer. J1939 is the common frame for engine and driveline content, but body and attachment messages are usually programme-specific: ownership, cycle times and diagnostics must be written against the OEM's own definition, not assumed from the connector.

Going deeperWhat a power management unit does covers the PWM output stage in detail, BCM vs VCU vs PMU separates the three controller roles, and the smart control modules guide covers the whole EBX matrix.

4. Operator controls: pedals, keypads and switches in a dusty cab

Most operator controls report a request to a controller rather than powering the final load, and on a machine that distinction carries safety weight: the pedal that asks for travel is also the one whose failure mode has to be defined.

Travel control is the clearest machine-specific case. TDK-2408 is a foot-operated bidirectional travel pedal for construction and road machinery: ±16° of travel reported over CAN on a Deutsch DTM06-6S connector, 8–32 VDC with withstand to 50 VDC, IP65, −40 to +85 °C, 5.5 N breakaway and 17.8 N operating force against a 300 N maximum. Its published fault behaviour is worth reading twice: on a detected fault the pedal zeroes its CAN position data rather than reporting a stale value.

Which controls still need to work when the bus is not available?

Every machine has a short list, and it belongs in the specification before the panel layout — but the list has two tiers that should not be written as one. Emergency stop and battery isolation are safety and isolation functions: their category, behaviour and independence from the bus follow from the machine's safety assessment, not from convenience. Ground-level start / stop and hazard lighting are service and visibility functions, hard-wired because they must stay available, not because they carry a safety rating. Both tiers earn a direct electrical path on an otherwise multiplexed machine, for different reasons:

• Direct-acting safety devices. JDK-2425 is a mushroom-head emergency stop and cut-off rated 9–32 VDC, 10 mA to 10 A across three NO / NC pairs, IP67, −40 to +85 °C and 100,000 operations, on a TE 1-967650-1 eight-contact mating connector.
• Switches that carry the load themselves. JDK-2201 is a sealed ON-OFF-ON toggle rated 15 A at 24 V or 25 A at 12 V, IP67, 50,000 operations; JDK-901 is the gangable dash rocker for the same job inside the cab, at a lower current rating and IP53 — a panel part, not a substitute for the sealed toggle outside it.
• Ground-level service controls. EDK-2010 is a four-button IP67 panel rated 9–36 VDC and over 200,000 operations, for start / stop and hazard control reachable from the ground rather than the seat. It is a request panel for availability, not a substitute for the rated stop device above it.

For multiplexed panels, EDK-2507 packages four buttons and a rotary input at IP66 with a CAN 2.0 interface on a Deutsch DT06-4S connector, rated for at least 100,000 cycles, 6.8 G vibration over 8.3–400 Hz and 50 G shock — the sealing and shock figures are what make it a machine part rather than a dashboard part. EDK-2403 is the dual-knob CAN equivalent at IP65 and −40 to +85 °C. EDK-907 keeps a hard-wired 24 V / 500 mA backup path alongside its CAN pair — a useful hedge while bus content is still being defined, though it is a 24 V dashboard part at IP53 and belongs inside the trim, not on an exposed pillar.

Going deeperCAN vs LIN vs hard-wired switching is the interface decision in full, how a CAN switch panel works covers multiplexed keypads, and the switches and sensors guide covers the whole range.

5. Operator information and machine visibility

The display layer is specified last because most of what it shows is decided elsewhere, and on a machine that bites harder than on a truck: hydraulic pressures, oil and coolant temperatures, filter and service state, attachment mode and engine data are published by several different nodes, so the cluster specification is really an agreement about who publishes what. Camera video is the exception — it reaches the monitor on its own path rather than as bus content, which is why coverage and display are specified together instead of being inherited from the CAN matrix.

The catalogue references below were drawn up for commercial-vehicle cabs, so each one needs reading for what a machine actually uses. PBX-2202 is the compact end — a 4.6-inch IPS panel at 960 × 320, 9–32 VDC, rated −40 to +85 °C operating and −40 to +95 °C storage, which matters for a cab that stands closed in the sun all weekend; its phone-link and navigation-mirroring functions are aimed at road cabs and are usually left out of a machine build. PBX-2301 is the 8-inch combined cluster with dual CAN-FD for machines publishing more than a compact panel can carry, catalogued in plateau and new-energy configurations, so the machine variant is agreed at RFQ rather than read off the listing — as is the compaction-roller cluster variant, whose dial layout and vibration duty differ from an excavator's. Where the cab has a primary windscreen, PBX-961 is a windscreen head-up display rated −40 to +85 °C, projecting a virtual image of up to 15 inches at 2.4 m with content dispatched over the machine bus; its listed vehicle classes include excavator, loader and crane cabs, but its 18–32 VDC input makes it a 24 V part — it does not cover the 12 V machines described earlier.

When does a machine need surround-view rather than a camera and a mirror?

The trigger is usually slew and travel, not reversing. An excavator's counterweight sweeps a circle the operator cannot see from the seat and a loader's blind zone moves with the bucket, so a single rear camera answers neither. The PBX-2050 platform is project-configured for this case, for both 270° baseline and 360° all-round view applications, subject to camera count, mounting geometry and project specification. It is quoted per programme rather than as a catalogue item, because the coverage that matters is measured on the target machine with its attachment fitted, not copied from generic blind-zone figures.

Going deeperThe instrument cluster guide covers cluster selection, HUD vs digital cluster compares the two formats, commercial-vehicle HUD includes a section on construction and off-road cabs, and the displays and HUD guide covers the layer end to end.

6. What makes a construction-machinery specification different

A functional match is not enough on a machine: the same module can be entirely correct in a cab and wrong by a wide margin two metres away on the deck, because the evidence behind its rating does not describe that position.

What has to be validated for each mounting zone?

Farm machinery is the neighbouring class and borrows most of this hardware, but it drives on public roads and hosts equipment somebody else built, so type approval and a standardised implement bus enter the specification — agricultural machinery electronics covers where the two part company. Duty cycle is a specification input, not a boundary on where we work: the Middle East / GCC and Southeast Asia pages show how one catalogue is filtered for Gulf dust and heat versus mud and humidity. The last difference is programme discipline rather than hardware — machines stay in production for years and are serviced in the field, so change control on connectors, MCUs and materials belongs in the specification. See what to verify when sourcing OEM vehicle electronics for how IATF 16949, APQP and PPAP divide that responsibility, and IP65 / IP67 protection for how sealing claims are validated rather than asserted.

7. Specifying a construction-machinery programme

Quotes come back accurate when the request carries the facts that decide the hardware. For a machine programme that means:

What should a construction-machinery electronics RFQ include?

• Machine class and electrical limits — machine type and operating weight, 12 V or 24 V, isolator arrangement, cranking, reverse-battery and jump-start requirements.
• The load list — every circuit with its continuous current, duty and switching method, with hydraulic solenoids listed separately: coil resistance or current, whether the channel must be proportional, and the dither or PWM expectation.
• Analogue and frequency inputs — how many sensors and of which type (0–5 V, 4–20 mA, resistive sender, pulse pick-up). This decides the controller's front end more than the digital input count does.
• Bus architecture — how many CAN channels, which application layer (J1939 is typical for engine and driveline), any programme-specific body content, and the DBC or signal list if one exists.
• The attachment boundary — which auxiliary functions the base machine owns, how many spare proportional channels are reserved, and who owns the connector and the operator interface for third-party attachments.
• Mounting position and evidence per part — the zone each module sits in, the wash-down regime, temperature, vibration profile and orientation, and the reports required at each validation gate.
• Connector preference and the harness drawing — most machinery re-work traces back to a connector, cavity or sealing-plug assumption made without the drawing.
• Commercial programme inputs — markets, annual and lifetime volume, sample stages, tooling ownership, PPAP level, documentation language and SOP date, which decide validation depth, amortisation and delivery timing.

The OEM RFQ checklist puts this in a form you can send. Manufacturing is IATF 16949 certified with in-house environmental and EMC pre-compliance testing, and PPAP deliverables and the submission level are agreed against the customer-specific requirements and the released drawing revision.

If you are scoping the electrical architecture on an excavator, loader, crane or roller platform, send the load list, the solenoid schedule and the harness drawing and we will come back with a proposed hardware split across the four families. Use the contact page or message +86 134 6767 4786 on WhatsApp — typical reply within one business day.
