Tractors, combine harvesters, self-propelled sprayers and trailed implements share a pattern that separates them from both trucks and construction machinery: the machine is a carrier for equipment somebody else built, and it drives on public roads between fields. Youlai supplies these programmes from four product families — power distribution, smart control modules, switches and sensors, and displays — under an IATF 16949 certified quality system in Changsha, China. This page is the horizontal view of how those families fit together on one machine, and it is deliberately explicit about where our scope ends; the buyer guides linked at the end of each section go deeper into individual selection.
1. How the electrical system on a farm machine is organised
The topology starts out familiar — battery, protection, distribution, control layer, bus, display — then splits in a way no truck or excavator does. A tractor carries two networks with different owners: the machine's own bus, where engine, transmission and body content live, and the implement bus running out to the rear connector for equipment the machine builder did not design and often cannot test against. Everything awkward about a farm programme starts at that boundary.
System architecture · teal = everything that changes when an implement is attached
Power path
- Battery and isolatorMain feed and protection, sized for cold cranking after long idle
- Sealed distributionFuses, relays and harness interface in one enclosure near the engine or cab
-
- Machine branch Machine-side loads Lighting, beacons, HVAC and valve coils — fed from machine distribution
- Implement branch Rear supply → implement loads Separately protected hitch feed, sized for implements not yet specified
Signal path
- Operator inputsArmrest console, keypads, dash switches and machine-side service controls
- HubMachine controllerReads inputs, holds machine logic, drives the outputs above, sits on the machine bus as one node
Machine bus — commonly J1939 · the tractor's own backbone, owned end to end by the machine builder
- Engine and transmissionPublish speed, load, temperatures and fault codes onto the machine bus
- Terminal in the cabRenders machine content, and separately hosts the implement's screensCamera videoOwn path into the monitor — not bus content
- Tractor ECU / gatewayWhere the machine bus stops and the implement bus starts. Agreed machine data is published outward; nothing else crosses without a decision
Implement bus — ISO 11783 (ISOBUS) · a second network, standardised because the equipment on it is not the machine builder's
- Implement ECUBuilt by the equipment manufacturer, arriving on a machine its designers have never seen
- Universal terminal contentThe implement's own interface, rendered on a cab terminal it does not own or ship with
- Task and section controlJob data, application rate and section switching — certified functionality by functionality, not machine by machine
Two boundaries decide most of the cost on a farm programme. The first is where the machine ends and the implement begins. Unlike an excavator attachment, which is hydraulic and quoted with the base machine, an agricultural implement is often bought years later from a different manufacturer and expected to work anyway — which is the whole reason the implement bus is standardised, and why the machine side owes a defined interface rather than a private one. The second is road use: a tractor is a type-approved road vehicle in most markets, so lighting, visibility and EMC are approval items rather than fitment choices. That is where farm machinery parts company with most construction equipment, which is carried between sites on a low-loader rather than driven there — wheeled excavators, backhoe loaders and mobile cranes being the exceptions that carry road approvals of their own.
Beyond those two, where on the machine a part lives decides its enclosure as much as its function does:
Dry, enclosed
Operator cab
Terminal, armrest console, keypads and cab-mounted controllers. A low-IP enclosure is defensible here because the cab structure carries the sealing duty — but the cab is also pressurised and filtered against crop dust, so a module that leaks cab air is a problem even when its rating is fine.
Hot, chaff-laden
Engine bay and threshing area
Radiator heat plus airborne chaff and straw drawn by the cooling fan. On a combine this debris is combustible and settles on warm surfaces, so enclosure sealing and surface geometry matter here for a reason unrelated to water.
Exposed, chemically loaded
Rear linkage and implement interface
Connectors, the implement supply and hitch-area sensing. Coupled and uncoupled by hand in mud, and on sprayer work it meets agrochemicals and ammonia. Mating-cycle life and material compatibility belong in the specification alongside the IP number.
Weathered, seasonal
Roof and outer structure
Work-light arrays, beacons and aerials. The distinguishing factor here is idleness rather than severity: this hardware stands in the weather year-round while the machine may work only a few weeks, so UV, freeze–thaw and standstill corrosion set its life rather than duty cycle.
Unsprung, abraded
Wheel ends and axles
Speed and position sensing at the hubs, and the harness reaching it. The opposite case to the roof on the same machine: mud and stone impact, standing water, and vibration that arrives unsprung rather than through the cab mounts — so it is specified on its own terms rather than under one outdoor rating shared with the roof. Where the measurement allows it, taking the signal from a protected mounting is cheaper than qualifying a device for the hub itself.
2. Power distribution on a tractor or harvester
Distribution hardware is specified first and changed least, and much of the NBX series transfers across from construction machinery unchanged. Two things are sized differently on a farm machine: the reserve for an implement that does not exist yet, and the standing current drawn while parked between seasons.
NBX-980 is the first-stage module at the battery, 9–36 VDC with bolt-down MEGA and MIDI positions and six protected outputs; at IP53 it needs a protected battery compartment. From there the choice is by mounting zone rather than by machine type.
| Model | Sealing | Where it belongs on a farm machine |
|---|---|---|
| NBX-961 | IP67 | The integrated central box where the machine has a real load list: 9–32 VDC so one platform covers 12 and 24 V, −40 to +85 °C, configurable contents, sealed connector set with a CAN pin-out. |
| NBX-971 | IP67 (validated) | Frame and underside positions on tractors and trailed implements, where the enclosure sits in field debris and gets washed. |
| NBX-968 / NBX-969 | IP65 | Protected frame positions where the enclosure is shielded from direct spray; configurable fuse, relay and terminal contents with gland exits, 9–32 VDC and −40 to +85 °C. |
| NBX-2404 | IP54 | Six-channel relay box for a small auxiliary group, 12 / 24 V — behind a panel or under a cover, not in the open. |
| NBX-972 | IP4x (vented) | Highest density at 25 relays and 65 fused circuits, but cab-only: the vented enclosure rules out any position exposed to chaff or spray. |
Size each box from the frozen load list plus spare ways, then match sealing to the mounting zone. Two agricultural specifics belong in the requirement rather than being discovered later. Reserve capacity at the rear should be stated as a current and a fuse position, not as "some spare ways", because the implement population changes over a machine's life and re-opening a sealed box in the field is exactly what the sealing was for. Quiescent current deserves a number of its own: a machine that sits from harvest to spring will flatten a battery on standing drain alone, and the no-start that follows is reported as an electrical fault at the worst moment in the season.
Going deeperIP67 distribution boxes covers sealing construction, relay vs fuse vs junction box covers which enclosure type a position needs, the fuse box guide covers what goes inside, and the selector lists every NBX model side by side.

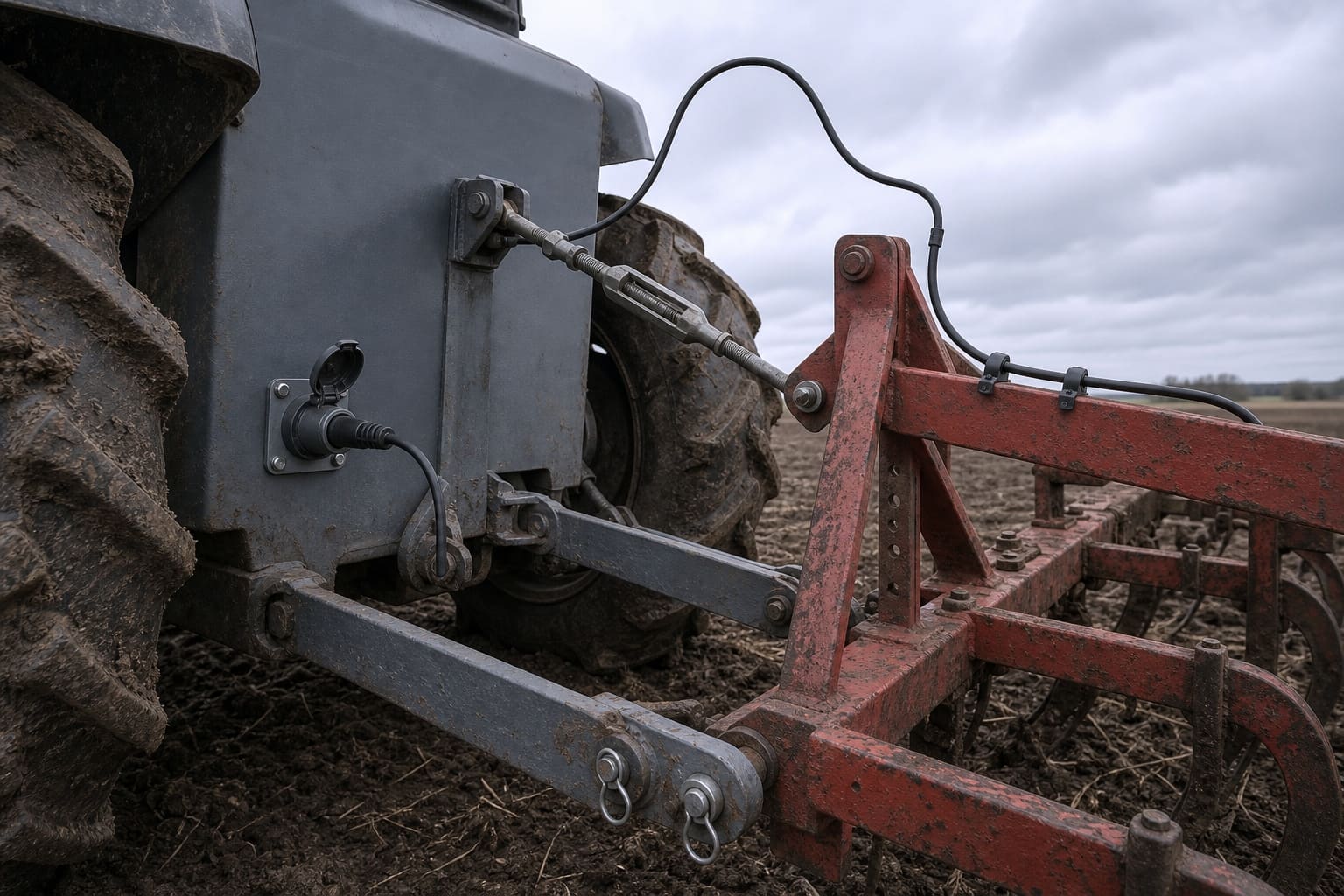

3. The implement interface: what ISOBUS changes
This is the layer with no equivalent on a truck or an excavator, and the one where a farm programme most often runs late. An agricultural implement is not an attachment quoted with the base machine — it is an independent product with its own controller, frequently bought years later from another manufacturer and expected to plug in and appear on the cab screen. ISO 11783, known as ISOBUS, is the standard that makes that expectation reasonable, and its consequences reach further into a specification than first-time buyers assume.
The practical shape of it: the implement carries its own ECU and, instead of shipping a screen with every machine, sends its interface definition to a terminal already in the cab. Conformance is organised as named functionalities rather than one blanket claim — the universal terminal that renders the implement's interface, auxiliary control letting a tractor joystick drive implement functions, the tractor ECU that publishes machine data to the implement, task-controller functions covering job data and section or rate control, and tractor implement management, in which the implement commands the tractor. That last one is bidirectional control of a moving machine, which is why it carries a heavier certification burden.
Who certifies that an implement interface actually works?
Not the supplier of any single box, and this is worth being precise about. Conformance to ISO 11783 and the accompanying AEF guidelines is verified by independent test laboratories through the AEF conformance test; products that pass are issued a certificate and listed in the AEF ISOBUS database functionality by functionality, so a buyer can check compatibility before purchase rather than at the headland. The universal terminal test is now in its third generation. Which functionalities a programme certifies is a commercial decision with a real cost, and it belongs in the specification at the start rather than in the integration phase.
Where our scope ends. Certificates are issued to products rather than to companies, and none of ours carry one: we do not supply AEF-certified ISOBUS terminals or implement ECUs. What a programme can source here is the hardware around that interface: the sealed distribution feeding it, supply and protection at the rear connector, cab switching, and machine-side sensing and display content that is not implement content. If a certified ISOBUS stack is in scope, source it from a supplier listed in the AEF database for the functionalities you need — state that split in the RFQ and it stays clean instead of being contested at integration.
One consequence is easy to miss. Because implement content arrives on a separate standardised network, the machine bus stays the machine builder's own: J1939 remains the common frame for engine and driveline data, and body content is still programme-specific. Two networks means two signal lists, two owners and one gateway decision — settle who owns that gateway before harness release.
Going deeperCAN vs LIN vs hard-wired switching covers the interface decision on the machine side, BCM vs VCU vs PMU separates the three controller roles, and the smart control modules guide covers the whole EBX matrix.

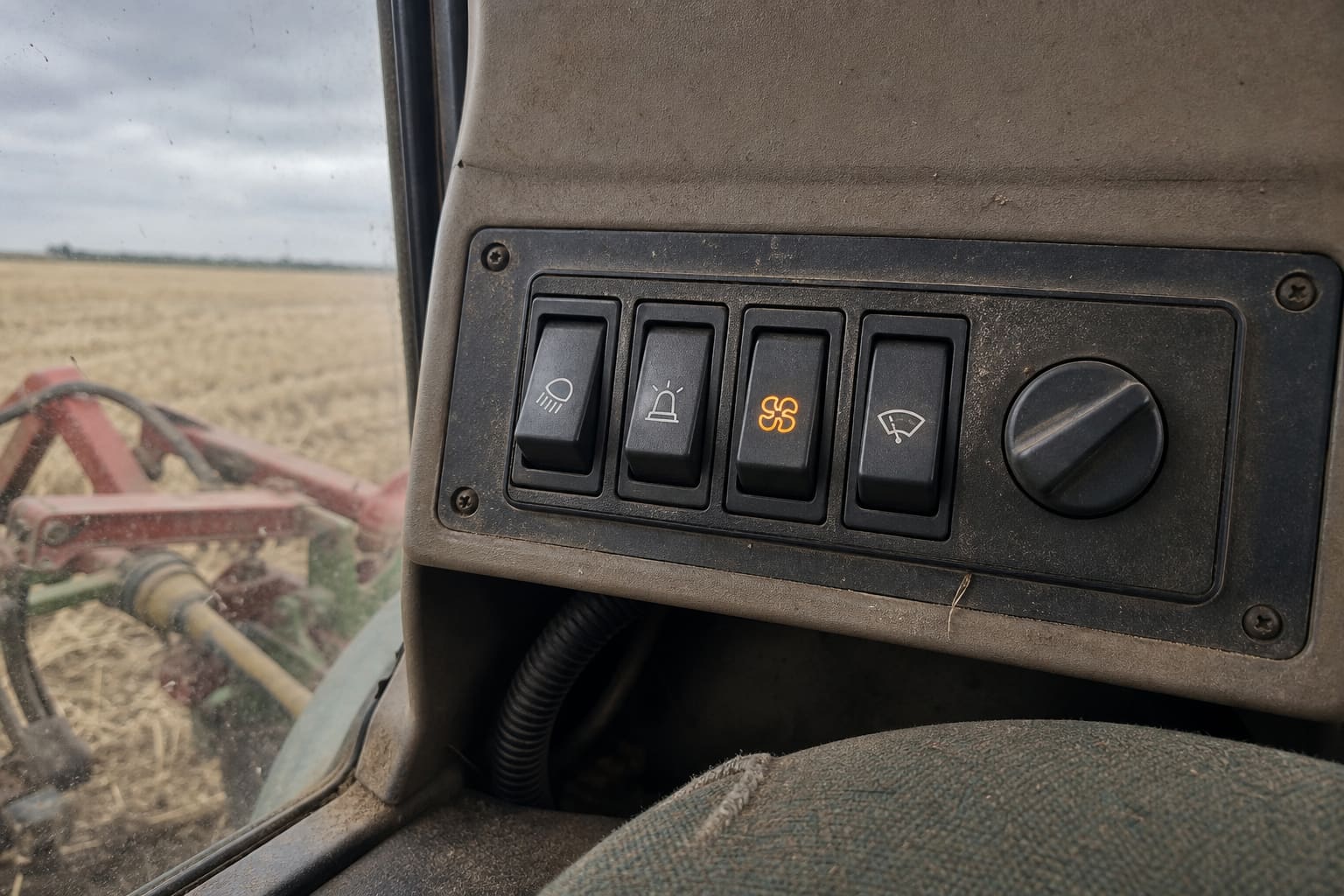

4. Cab and machine-side controls
Farm cabs have moved to an armrest console and a terminal, so the loose switch count in front of the operator keeps falling — but two groups do not move: functions that must work with the terminal off or the network down, and controls mounted outside the cab where somebody operates the machine standing on the ground.
For multiplexed panels, EDK-2507 packages four buttons and a rotary input at IP66 on CAN 2.0 — its sealing and shock ratings are what make it a machine part rather than a dashboard part. EDK-2403 is the dual-knob CAN equivalent at IP65. EDK-907 keeps a hard-wired backup path alongside its CAN pair, useful while bus content is still being defined, but at 24 V and IP53 it belongs inside the trim rather than on an exposed pillar.
Which controls still need to work when the network is not available?
Every machine has a short list, and it separates into two tiers that should not be written as one. The safety and isolation tier — emergency stop, battery isolation, PTO disengagement — has its behaviour, category and independence set by the machine's safety assessment rather than by convenience. The availability tier — hazard and road lighting, a ground-level stop, service controls at the rear — is hard-wired so it stays usable when the network is not. The RFQ should say which tier each function belongs to, because that decides whether the answer is a rated device or simply a separate wire.
- Direct-acting devices. JDK-2425 is a mushroom-head emergency stop and cut-off at IP67, 9–32 VDC across three NO / NC pairs and 100,000 operations.
- Switches that carry the load themselves. JDK-2201 is a sealed ON-OFF-ON toggle at IP67; JDK-901 is the gangable dash rocker for the same job inside the cab at lower current and IP53 — a panel part, not a substitute for the sealed toggle outside it.
- Machine-side service controls. EDK-2010 is a four-button IP67 panel rated for over 200,000 operations, for functions reachable from the ground rather than the seat — the rear-linkage lift controls fitted to most tractors sit in exactly this class. Read the legends before assuming a fit: it is catalogued with a truck set (cab tilt, ground-level engine start and stop, hazard), so the legend artwork and function mapping for a linkage panel are a per-programme item. It is a request panel for availability, not a substitute for a rated stop device.
One agricultural detail changes how these are chosen: ground-level and rear controls are operated with gloved, muddy hands, which sets minimum button size and separation before any electrical requirement applies.
Going deeperHow a CAN switch panel works covers multiplexed keypads, CAN switch panel sourcing covers the OEM side, and the switches and sensors guide covers the whole range.
5. Operator information and visibility
The display layer on a farm machine has an unusual split. The terminal that hosts implement screens and guidance is normally part of the ISOBUS and precision-farming scope described in section 3, and is not something we supply. What remains is the machine's own instrumentation — engine and driveline data, service state, road-mode indication — plus camera coverage, which reaches the screen on its own path rather than as bus content.
For that machine-side layer the catalogue references were drawn up for commercial-vehicle cabs, so each needs reading for what a tractor actually uses. PBX-2202 is the compact end, a 4.6-inch panel at 9–32 VDC rated −40 to +85 °C operating and to +95 °C storage — relevant for a cab that stands closed in the sun for months; its phone-link and navigation-mirroring functions are aimed at road cabs and are usually left out. PBX-2301 is the 8-inch combined cluster for machines publishing more than a compact panel can carry, catalogued in plateau and new-energy configurations, so the agricultural variant is agreed at RFQ rather than read off the listing.
Where do cameras earn their place on a farm machine?
Rarely at the rear alone. The blind zones that matter follow the work: the implement behind a tractor, the auger and unloading area on a combine, the boom ends on a wide sprayer, and the hitch during coupling — a position that pays for itself in a job done many times a day by one person. Coverage is therefore specified per machine and implement combination rather than copied from generic figures, and it is worth saying up front whether the images land on the machine's own screen or on the terminal, because that decides the video path and who owns it.
Tyre pressure monitoring is the other stream worth settling at design. EBX-957 is the IP67 receiver, recovering pressure, temperature and wheel motion from the wheel-side sensors and reporting them over CAN — note its 18–32 VDC input makes it a 24 V part, so it does not cover the 12 V machines described earlier. It pairs with the YDK-902 valve-stem sensor or the YDK-903 clamp-mount alternative catalogued for off-highway rims. Agricultural tyres run at deliberately low pressures to protect soil structure and are adjusted between field and road work, so the useful specification is the range and resolution at the low end, not a truck-derived range.
Going deeperThe instrument cluster guide covers cluster selection, displays and HUD guide covers the layer end to end, and TPMS covers the sensing side.
6. What makes an agricultural specification different
Farm machinery borrows most of its hardware from construction equipment, and that shortcut is usually right. The rows below are where it is not.
What has to be validated for agricultural duty?
| Constraint | How it lands in the specification |
|---|---|
| Seasonal duty and standing time | The constraint construction hardware is not designed around. A combine may work a few weeks a year and stand the other eleven months, so the electronics age by calendar rather than by operating hours, and failures surface on the first day of the season when downtime costs most. State operating hours per year and standing months, quiescent current and storage conditions, and ask for evidence of behaviour after long dormancy — contact films, seal set, battery drain — not just powered-hours testing. |
| Dust that is organic, not mineral | Grain, chaff and straw dust are hygroscopic, pack into warm crevices, and in threshing and unloading areas are combustible. Surface temperature and enclosure geometry therefore matter for a fire-risk reason rather than an ingress one, so a part qualified in a quarry is not automatically qualified on a combine. |
| Chemical exposure | Sprayer and fertiliser work brings agrochemicals and ammonia onto housings, seals and contacts, and slurry equipment adds a corrosive atmosphere that attacks copper. Name the chemical families a part will meet and require material compatibility to be stated — an IP rating says nothing about what a housing resists. |
| Ingress and the wash regime | IP67 covers dust and temporary immersion, not a pressure lance at close range aimed at a connector face — which is how these machines are cleaned at the end of a season. State jetting pressure, distance, temperature and direction, and validate that duty separately from the IP claim. |
| Mating cycles at the implement interface | Rear-linkage connectors are coupled and uncoupled by hand, in the field, far more often than any connector on a truck. Specify a mating-cycle count with the contact-resistance criterion after it, plus the parked-state protection — an unmated connector left facing upwards fills with water and chaff. |
| Type approval and EMC | Tractors and their trailers are road vehicles, which puts them in a framework construction machinery does not use. In the EU, Regulation (EU) No 167/2013 governs the approval of agricultural and forestry vehicles, with functional safety requirements in Commission Delegated Regulation (EU) 2015/208; EMC is Article 19 and Annex XV of that delegated regulation, and compliance with UN Regulation No 10 is accepted as an alternative to Annex XV. Annex XV has been amended over time, including alignment of the test frequency range with UN R10, so confirm the current consolidated version and which route the programme takes before limit lines are agreed. Certified testing is performed at third-party accredited laboratories when required. |
| ISOBUS conformance ownership | Conformance is certified per functionality by independent laboratories and listed in the AEF database — not a claim a component supplier can make on a datasheet. Decide which functionalities are in scope, who holds the certificate and who pays for the test. |
| Service life and field maintenance | Farm machines stay in service for decades and are maintained by dealers and owners, often far from a workshop. Parts availability over that window, connector continuity, change control on MCUs and materials, and the diagnostic route someone will use in a field all belong in the specification. |
Climate is a specification input rather than a boundary on where we work — the Middle East / GCC and Southeast Asia pages show how one catalogue is filtered for dust and heat versus mud and humidity. See sourcing OEM vehicle electronics for how IATF 16949, APQP and PPAP divide responsibility, and IP65 / IP67 protection for how sealing claims are validated rather than asserted.
7. Specifying an agricultural machinery programme
Quotes come back accurate when the request carries the facts that decide the hardware:
What should an agricultural machinery electronics RFQ include?
- Machine type and electrical limits — tractor, harvester, sprayer or trailed implement, power class, 12 V or 24 V, isolator arrangement, cranking and jump-start requirements.
- Duty profile including standing time — operating hours per year, idle months, storage conditions and target quiescent current. The input most often missing, and the one that decides service-life evidence.
- The load list by zone — every circuit with its current, duty and switching method, with field and road lighting distinguished because they are approved differently.
- The implement interface — supply current and protection reserved at the rear, connector type and position, and how many implements the machine must support without rework.
- ISOBUS scope and ownership — which functionalities are in scope, who holds or will obtain certification, which terminal the implement screens land on, and where the boundary with our hardware sits.
- Network architecture — channel count and application layer on the machine side, the implement bus as a separate item, the gateway between them, and the signal list if one exists.
- Approval route — which framework and edition applies in each destination market, which EMC route is taken, and who holds the approval.
- Mounting position and evidence per part — the zone, wash regime, chemical exposure, temperature, vibration profile and orientation, plus the reports required at each gate.
- Connector preference and the harness drawing — with a hand-mated interface, most re-work traces back to a connector or sealing assumption made without the drawing.
- Commercial inputs — markets, volume, sample stages, tooling ownership, PPAP level and SOP date, which decide validation depth and timing.
The OEM RFQ checklist puts this in a form you can send. Manufacturing is IATF 16949 certified with in-house environmental and EMC pre-compliance testing, and PPAP deliverables are agreed against the customer-specific requirements and the released drawing revision.
Send the load list, the duty profile including standing months, and the harness drawing, and we will come back with a proposed hardware split across the four families — with the ISOBUS boundary stated explicitly rather than left ambiguous. Use the contact page or message +86 134 6767 4786 on WhatsApp — typical reply within one business day.
