Overview
The EBX-952 is the smallest 24 V dedicated central control module in the EBX family — a single-connector controller that owns central locking, immobiliser interlocks, RKE remote-keyless entry and (optionally) smartphone-app remote control on commercial-vehicle programs. Where a full BCM such as the EBX-953 or the EBX-954 covers the whole body-electronics scope (lighting, HVAC, windows, mirrors, multiple CAN buses), the EBX-952 is the right tier when the program only needs the central-locking / anti-theft / RKE slice and wants a compact dedicated controller alongside the existing BCM or in place of a separate immobiliser ECU.
Electrically the module operates across an 18–32 VDC range with quiescent current ≤ 1.5 mA, validated against OEM-class EMC requirements (the validation profile of a benchmark vehicle program is available on request). Four-layer hardware protection covers each output channel. The output bank is dimensioned for direct relay coil drive (3 high-side + 1 low-side relay-grade channels) plus two chip-level high-side outputs for low-current loads, with a LIN bus typically allocated to the smart-key / immobiliser sub-network and an integrated RF antenna for RKE remote-keyless entry.
Integrated functions
The EBX-952 covers the central-locking / anti-theft / remote-control function group that is often spread across two or three discrete controllers (BCM + immobiliser + RKE receiver):
- Turn-signal control. Hazard-lamp and turn-signal drive (left / right), including RKE-triggered locking flash feedback.
- Central locking. Door lock / unlock drive (electric central locking) with anti-theft interlock; horn-drive for the locking confirmation chirp.
- Immobiliser & anti-theft. Anti-theft / immobiliser signal acquisition and forwarding to the engine ECU over the LIN sub-network (smart-key challenge / response).
- Ignition & speed interlocks. Ignition-lock signal acquisition and forwarding; vehicle-speed signal acquisition for speed-locking (auto-lock above a threshold) and tail-door electric-lock interlock.
- Airbag / safety signal interlock. Airbag-crash signal input for automatic unlock after a crash event.
- Tail-door signal. Tail-door open / close signal acquisition with optional drive output.
- Remote control. RKE remote-keyless entry (RF receive on the integrated antenna) plus configurable smartphone-app remote control over a paired BT / cellular front-end module.
- Vehicle network. 1 LIN bus typically allocated to the smart-key / immobiliser sub-network on the standard build.
Engineering details
The EBX-952 occupies a 95 × 92 mm footprint with a 24.5 mm overall height (including connector profile) — about one third of the footprint of a full-size 24 V BCM. Two M7 mounting bushings on the side ears land the unit on the cab loom support bracket or the steering-column bracket; a PA66-GF15 upper / lower housing wraps the FR-4 PCBA.
- Four-layer hardware protection on every output: over-voltage cut, over-current limit, short-circuit cut-off and over-temperature de-rating
- Single-connector harness footprint: one 20-pin AMP harness-side housing (reference AMP 368511-1) lands all power, ground, LIN, inputs and driver outputs — simplest possible harness drop on the cab loom
- 3 relay-grade high-side outputs plus 1 relay-grade low-side output: direct drive for door-lock motors, horn relay and turn-signal lamps without an external relay block
- 2 chip-level high-side outputs for low-current loads (status LED, body-builder accessory channel)
- 2 analog inputs (e.g. battery-voltage sense, fuel-level acquisition) plus 8 digital / switch inputs for the door / hood / trunk magnetic switches and ignition / brake / clutch signal taps
- 1 integrated RF receive antenna for RKE remote-keyless entry; specific RF front-end confirmed per program (e.g. 315 MHz or 433 MHz family)
- Configurable app-remote channel (option) over a paired BT / cellular front-end module — engagement model confirmed per program (challenge / response or token-based)
- IP53 sealing suitable for cab-mounted installation; specify a sealed-connector variant at quotation if the program requires chassis-mounted IP67

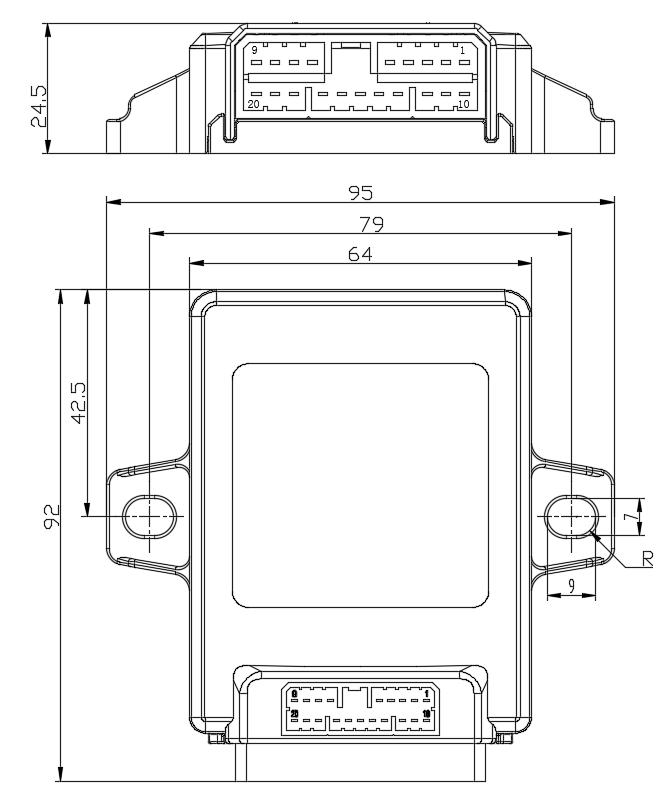

Mechanical layout & connector field

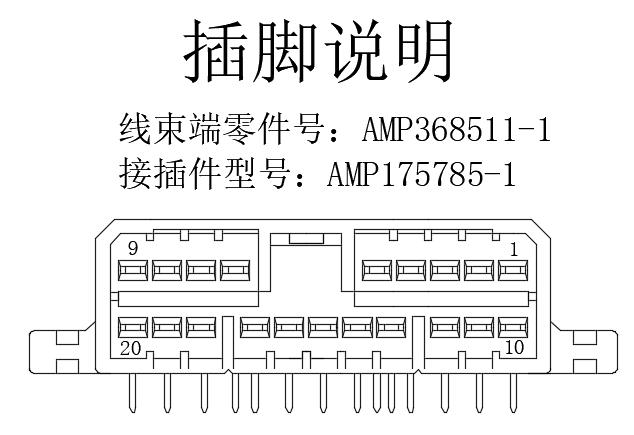

Mating connector
Current-production EBX-952 housings land on one 20-pin AMP harness-side housing. The reference P/N below documents the connector on the current production build; the matching wire-side seals, terminal P/N and harness colour code are confirmed against the customer harness drawing at quotation.

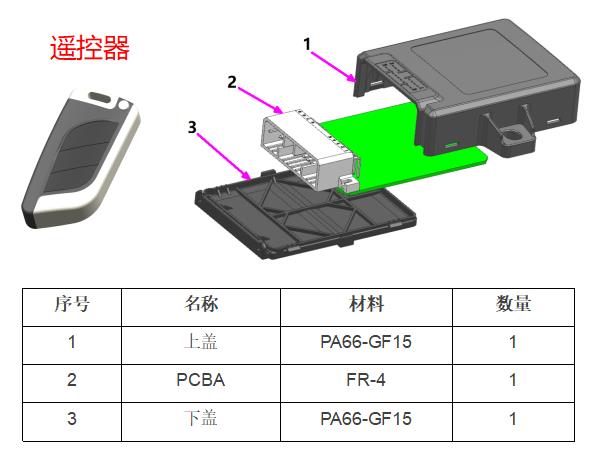

Construction & bill of materials
| # | Component | Reference material | Qty |
|---|---|---|---|
| 1 | Upper housing | PA66-GF15 | 1 |
| 2 | PCBA | FR-4 (with integrated RF receive antenna) | 1 |
| 3 | Lower housing | PA66-GF15 | 1 |
Comparison with other Youlai BCM / control modules
The EBX family covers a wide range of body-electronics use cases. The EBX-952 is the compact dedicated-controller tier:
| Model | System | Pattern | Footprint | RKE / App |
|---|---|---|---|---|
| EBX-952 | 24 V (18–32 VDC) | Compact central-control (locking / anti-theft / RKE) | 95 × 92 mm | Integrated RKE + App remote (option) |
| EBX-954 | 24 V (18–32 VDC) | Pure-logic BCM (high I/O density) | 193.6 × 157.8 mm | RKE-ready (reserved antenna) |
| EBX-953 | 24 V (18–32 VDC) | Integrated fuse/relay BCM | 285.8 × 159.8 mm | Optional |
| EBX-2305 | 12 V (9–16 VDC) | Pure-logic BCM + integrated RF | Compact, new-energy class | Integrated RKE / PKE |
The EBX-952 is the right choice when the program needs a compact, dedicated 24 V central-control / immobiliser / RKE controller alongside the existing BCM, or as a single-point central-locking solution on entry-level commercial-vehicle programs. For a full 24 V BCM with high I/O density, look at EBX-954; for BCM + integrated fuse / relay in one box, look at EBX-953; for a 12 V new-energy program with PKE smart-key, look at EBX-2305.
Manufacturing & testing
Built under IATF 16949 with APQP project planning and a PPAP package available for OEM programmes. Every unit is end-of-line functional-tested before packaging — LIN bus health, RF receive sensitivity, quiescent current, the door-locking / horn / turn-signal driver matrix and the immobiliser signal path are all checked. Environmental validation and EMC pre-compliance screening in our in-house lab is run when the programme requires it; benchmark OEM-class EMC validation profiles are available on request.
How to ask
The EBX-952 belongs to the Smart Control Modules family. To request the harness drawing, the I/O channel map, the RKE pairing protocol or a PPAP package, please use the contact page with your target vehicle programme, expected annual volume and key technical requirements (target voltage class, RF band 315/433 MHz, app-remote engagement model, IP rating, working temperature). Drawings welcome.
